GS1100 1984 (E) USA (E03)

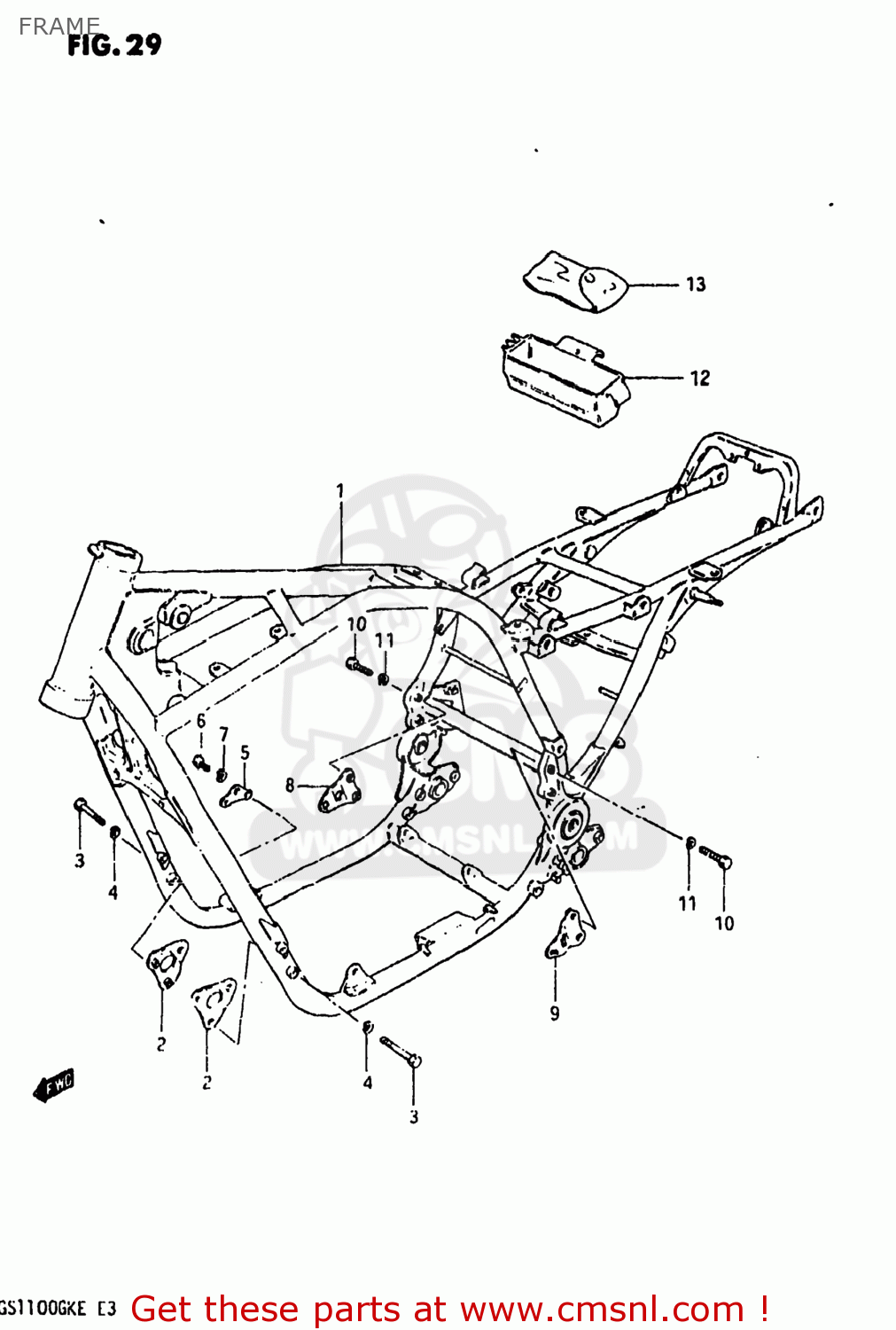

Frame diagram GS1100 1984 (E) USA (E03)
FRAME GS1100 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110049450019
ref: 1
FRAME
€ 0.00
2
4191049450019
ref: 2
PLATE,ENGINE MOUNTING
€ 0.00
3
0110708655
ref: 3
01500-0865B
BOLT
€ 3.00
4
0832121085
ref: 4
08321-0108A
LOCK WASHER
€ 2.50
5
4199349450019
ref: 5
PLATE,ENGINE MOUNTING
€ 0.00
6
0110708165
ref: 6
01500-0816B
BOLT
€ 2.00
7
0832121085
ref: 7
08321-0108A
LOCK WASHER
€ 2.50
8
4197045100019
ref: 8
PLATE,ENGINE MOUNTING
€ 0.00
9
4198045350019
ref: 9
PLATE,ENGINE MOUNTING
€ 0.00
10
0110708405
ref: 10
01500-0840A
BOLT 8X40
€ 3.00
11
0832121085
ref: 11
08321-0108A
LOCK WASHER
€ 2.50
12
4155145110
ref: 12
HOLDER,TOOL
€ 29.00
13
0980000251
ref: 13
09800-21025
TOOL SET
€ 43.00
