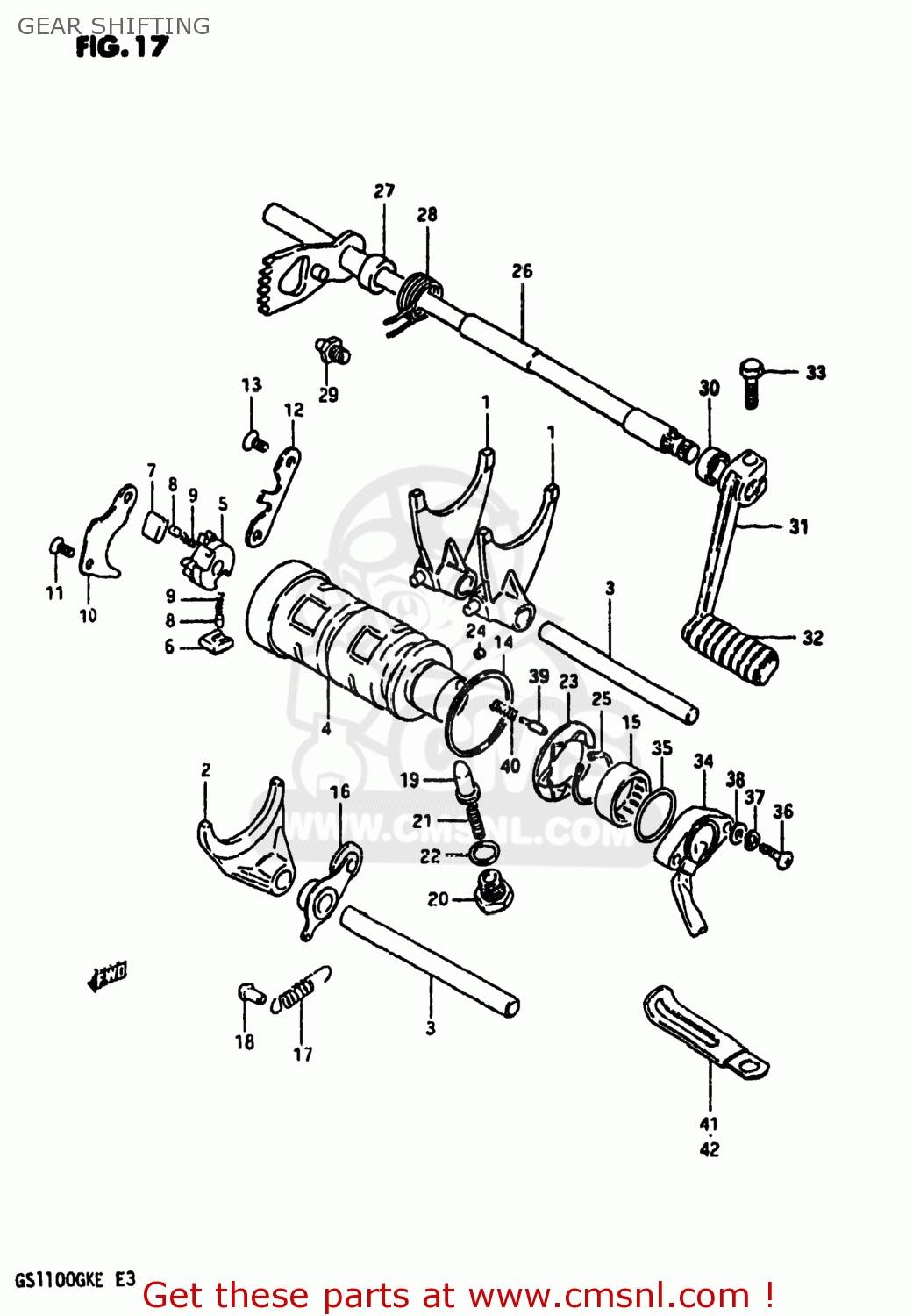

GEAR SHIFTING

ref

part #

description

quantity

1

2521149200
ref: 1

FORK,GEAR SHIFT NO.1

€ 87.00

2

2523145100
ref: 2

FORK,GEAR SHIFT NO.3

€ 43.50

3

2541131000
ref: 3
25411-18900

SHAFT,GEAR SHIFT FORK

€ 14.50

4

2531045101
ref: 4

CAM,GEAR SHIFT

€ 209.00

5

2532234200
ref: 5
25322-31310

SHIFTER,GEAR SHIFT CAM

€ 14.50

6

2532334200
ref: 6
25323-34201

PAWL,GEAR SHIFT NO.1

€ 6.00

7

2532434200
ref: 7
25324-34201

PAWL,GEAR SHIFT NO.2

€ 6.00

8

0926105003
ref: 8

PIN(5X8)

€ 1.50

9

0944004003
ref: 9

SPRING

€ 1.50

10

2533111001
ref: 10

LIFTER,GEAR SHIFT PAWL

€ 2.50

11

0212206128
ref: 11
02122-06127

SCREW

€ 3.00

12

2534118000
ref: 12

GUIDE,GEAR SHIFT CAM

€ 51.50

13

0212206128
ref: 13
02122-06127

SCREW

€ 3.00

14

0916040001
ref: 14

WASHER(40X45X1)

€ 2.50

15

0926325018
ref: 15

BEARING(25X32X12)

€ 17.50

16

2535045100
ref: 16

STOPPER,GEAR SHIFTING

€ 9.50

17

0944309006
ref: 17

SPRING

€ 2.50

18

0922004001
ref: 18
09223-04001

RIVET

€ 1.50

19

2535130010
ref: 19

STOPPER,GEAR SHIFT CAM NO.2

€ 6.50

20

2535430000
ref: 20

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

21

0944006020
ref: 21

SPRING

€ 14.00

22

0916814004
ref: 22

GASKET(14X19.2X2) (NAS)

€ 2.50

23

2538145400
ref: 23

PLATE,GEAR SHIFT CAM STOPPER

€ 10.50

24

0621104063
ref: 24
04221-04069

PIN 4X6

€ 2.00

25

0833131258
ref: 25
08331-3125A

CIRCLIP,25MM

€ 2.00

26

2551045111
ref: 26

SHAFT,GEAR SHIFT

€ 8.50

27

0918012090
ref: 27

SPACER (12X20X12)

€ 9.00

28

0944426017
ref: 28

SPRING

€ 5.00

29

2567101000
ref: 29
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

30

0928512002
ref: 30
09285-12006

OIL SEAL

€ 7.00

31

2560045121
ref: 31
25600-45130

LEVER ASSEMBLY,GEAR SHIFTING

€ 52.50

32

2565249300
ref: 32

RUBBER,PEDAL

€ 5.50

33

0110708208
ref: 33
01500-08207

BOLT

€ 3.00

34

3772045100
ref: 34

TERMINAL BASE ASSY,GEAR SHIFT

€ 92.50

35

0928026003
ref: 35
09280-26005

O-RING (D:2.4 ID:26.2)

€ 2.50

36

0211205208
ref: 36
02112-05207

SCREW 5X20

€ 3.00

37

0832121058
ref: 37
08321-0105A

LOCK WASHER

€ 2.00

38

0832221058
ref: 38
08322-01057

WASHER

€ 2.50

39

0920905011
ref: 39

PIN(5X15.5)

€ 2.00

40

0944004010
ref: 40

SPRING

€ 1.50

41

0940406415
ref: 41
09404-06433

CLAMP

€ 3.00

42

0940408402
ref: 42
09404-08420

CLAMP

€ 3.50
