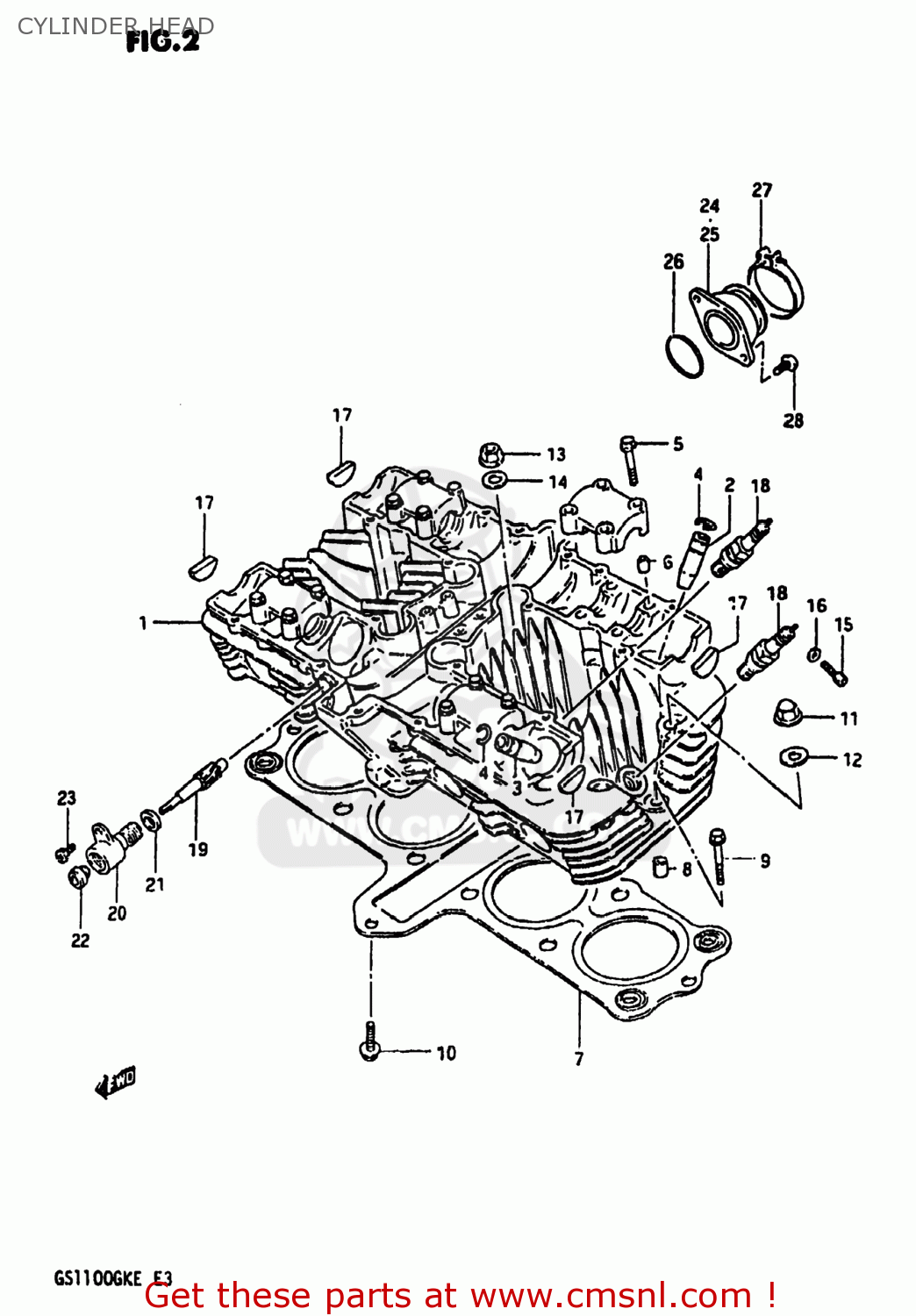

CYLINDER HEAD

ref

part #

description

quantity

1

1110049060
ref: 1

HEAD ASSEMBLY,CYLINDER

€ 569.00

2

1111545740
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111645740
ref: 3

GUIDE,EXHAUST VALVE

€ 27.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114149410
ref: 7

GASKET,CYLINDER HEAD (NAS)

€ 102.50

8

0421111189
ref: 8

PIN

€ 2.00

9

0151706455
ref: 9
01550-0645A

BOLT (6X45)

€ 2.50

10

0151706305
ref: 10
01550-0630A

BOLT 6X30

€ 2.50

11

0915910026
ref: 11

NUT

€ 6.00

12

0916810017
ref: 12

GASKET(10.5X22X2) (NAS)

€ 3.50

13

0831616108
ref: 13
08316-10107

NUT

€ 2.00

14

0916010039
ref: 14

WASHER(10.5X22X2.3)

€ 2.50

15

0910605006
ref: 15
07130-0510B

BOLT

€ 2.00

16

0916805010
ref: 16

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

17

0924123002
ref: 17

PLUG

€ 8.50

18-1

0948200091
ref: 18-1

PLUG,SPARK

€ 3.00

18-2

0948200196
ref: 18-2
09482-00247-111

SPARK PLUG W24ES-U

€ 3.50

19

2643145001
ref: 19
26431-45002

GEAR,TACHOMETER DRIVEN

€ 43.00

20

2644149000
ref: 20

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

21

2645145000A
ref: 21

SEAL,TACHOMETER DRIVEN

€ 4.50

22

0928905002
ref: 22

SEAL,OIL(5X12X8)

€ 11.00

23

0912805101
ref: 23

SCREW(5X12)

€ 1.50

24

1311049100
ref: 24

PIPE,INTAKE,R

€ 42.00

25

1312049100
ref: 25

PIPE,INTAKE,L

€ 39.50

26

0928040003
ref: 26
09280-40010

O-RING (D:2.4 ID:39.7)

€ 3.50

27

0940254303
ref: 27

CLAMP

€ 4.00

28

0211206165
ref: 28
02112-0616A

SCREW

€ 2.00

all assemblies
