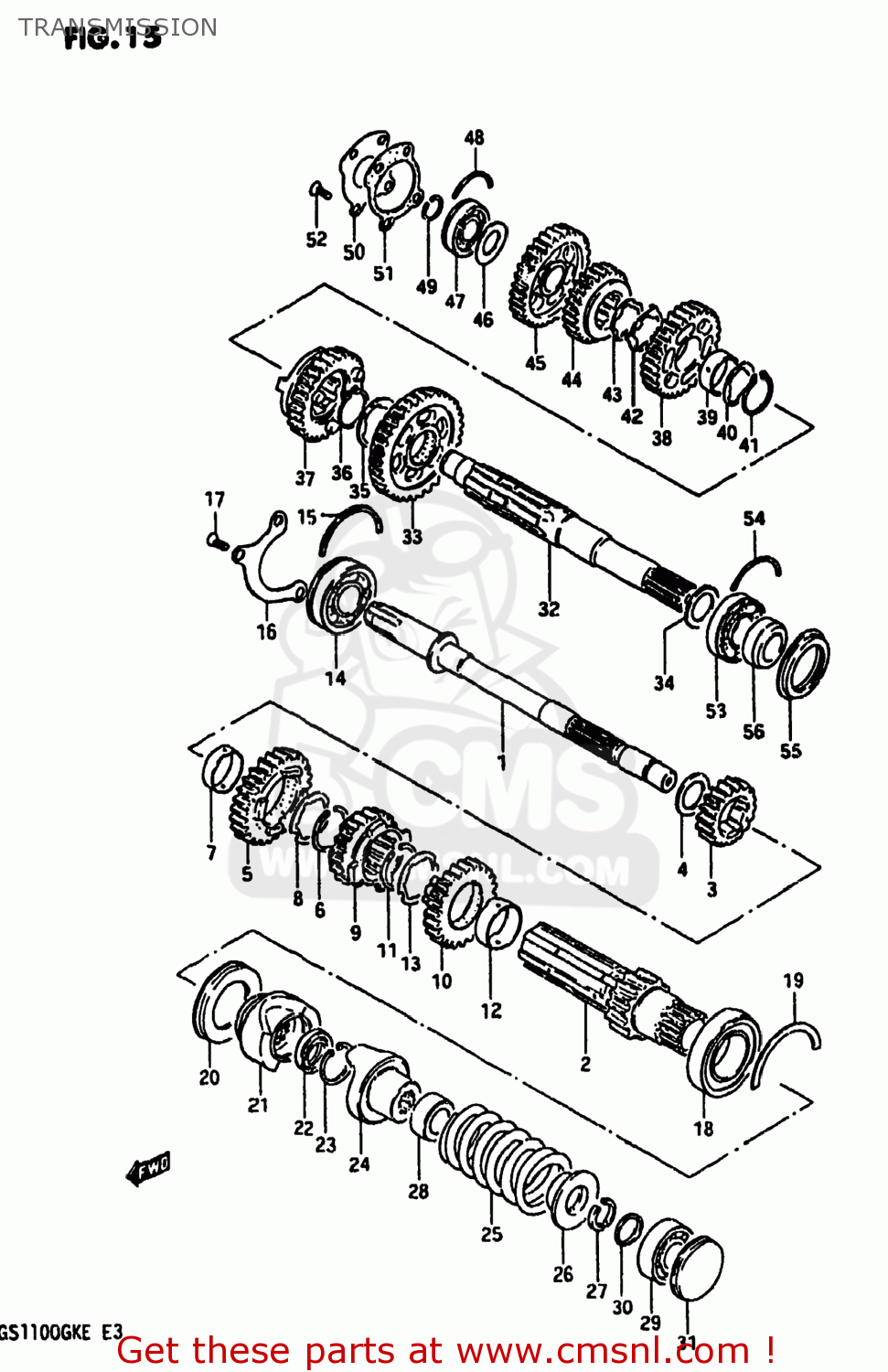

TRANSMISSION

ref

part #

description

quantity

1

2412145103
ref: 1

SHAFT,INNER COUNTER

€ 197.00

2

2414145102
ref: 2

SHAFT,OUTER COUNTER

€ 83.00

3

2422145110
ref: 3

GEAR,SECOND DRIVE

€ 0.00

4

0916021010
ref: 4

WASHER (21X35X2)

€ 9.50

5

2425045102
ref: 5

GEAR,5TH DRIVE(NT:26)

€ 110.50

6

0938032002
ref: 6

RING,SNAP

€ 3.50

7

2424245100
ref: 7

SPACER,DRIVE GEAR

€ 14.50

8

2424345101
ref: 8

LOCK WASHER,5TH DR GEAR SPACER

€ 4.50

9

2423145104
ref: 9

GEAR,THIRD DRIVE

€ 90.50

10

2424045100
ref: 10

GEAR,FOURTH DRIVE

€ 76.00

11

0938032002
ref: 11

RING,SNAP

€ 3.50

12

2424245100
ref: 12

SPACER,DRIVE GEAR

€ 14.50

13

2424345101
ref: 13

LOCK WASHER,5TH DR GEAR SPACER

€ 4.50

14

0926225051
ref: 14
09262-25105

BEARING(25X62X17)

€ 59.50

15

0939062006
ref: 15
09390-62012

C-RING

€ 5.00

16

2474145000
ref: 16

RETAINER,CNTR SHAFT BEARING

€ 8.00

17

0212206168
ref: 17
02122-06167

SCREW

€ 2.00

18

0926232003
ref: 18

BALL BEARING 32X58X13

€ 60.00

19

0939052004
ref: 19

C-RING

€ 5.50

20

0928340005
ref: 20

SEAL,OIL(40X58X7)

€ 17.50

21

2252145101
ref: 21

DOG,OUTPUT CAM

€ 45.50

22

0928320032
ref: 22

SEAL,OIL(20.6X31X6)

€ 13.50

23

0833121329
ref: 23
08331-41329

CIRCLIP

€ 2.00

24

2251145102
ref: 24

DOG,INPUT CAM

€ 8.50

25

0944035002
ref: 25

SPRING

€ 19.00

26

2253145101
ref: 26

STOPPER,CAM DOG SLIDING

€ 14.50

27

2254145100
ref: 27

STOPPER,CAM DOG

€ 5.50

28

2255145101
ref: 28

GUIDE,CAM DOG SPRING

€ 4.00

29

0926217008
ref: 29
09262-17023

BEARING

€ 14.00

30

0918017052
ref: 30

SPACER (17X21X3.5)

€ 4.50

31

0924140003
ref: 31

PLUG

€ 10.00

32

2413149100
ref: 32

SHAFT,DRIVE

€ 81.00

33

2431045100
ref: 33

GEAR,FIRST DRIVEN

€ 81.50

34

0821125383
ref: 34

WASHER, LH

€ 2.50

35

0916728001
ref: 35

WASHER,LOCK

€ 3.00

36

0833111289
ref: 36
08331-3128A

CIRCLIP

€ 2.50

37

2434145100
ref: 37

GEAR,FOURTH DRIVEN

€ 52.00

38

2433149201
ref: 38
24331-49202

GEAR,THIRD DRIVEN

€ 139.50

39

2433249000
ref: 39

BUSH,3RD DRIVEN GEAR

€ 13.50

40

0916728001
ref: 40

WASHER,LOCK

€ 3.00

41

0833111289
ref: 41
08331-3128A

CIRCLIP

€ 2.50

42

0916928001
ref: 42

WASHER

€ 3.00

43

0916728002
ref: 43

WASHER,LOCK

€ 3.00

44

2435145110
ref: 44

GEAR,FIFTH DRIVEN

€ 92.50

45

2432045110
ref: 45

GEAR,SECOND DRIVEN

€ 86.00

46

0821120341
ref: 46

WASHER

€ 2.00

47

0926220049
ref: 47

BEARING(20X47X14)

€ 33.50

48

0939047003
ref: 48

C RING

€ 3.00

49

0938020007
ref: 49

CIRCLIP

€ 3.00

50

2476145100
ref: 50

PLATE,DRIVESHAFT

€ 6.50

51

2476245000
ref: 51
24762-45000-H17

GASKET,DRIVESHAFT PLATE (MCA)

€ 2.50

52

0212206168
ref: 52
02122-06167

SCREW

€ 2.00

53

0926225055
ref: 53
09262-25030

BEARING

€ 40.00

54

0939052002
ref: 54

C RING

€ 3.00

55

0928335015
ref: 55

SEAL,OIL(35X52X6)

€ 14.50

56

2413645100
ref: 56

SPACER,DRIVESHAFT,LEFT

€ 13.50
