FRAME COVER

GS1100 1984 (E) USA (E03)

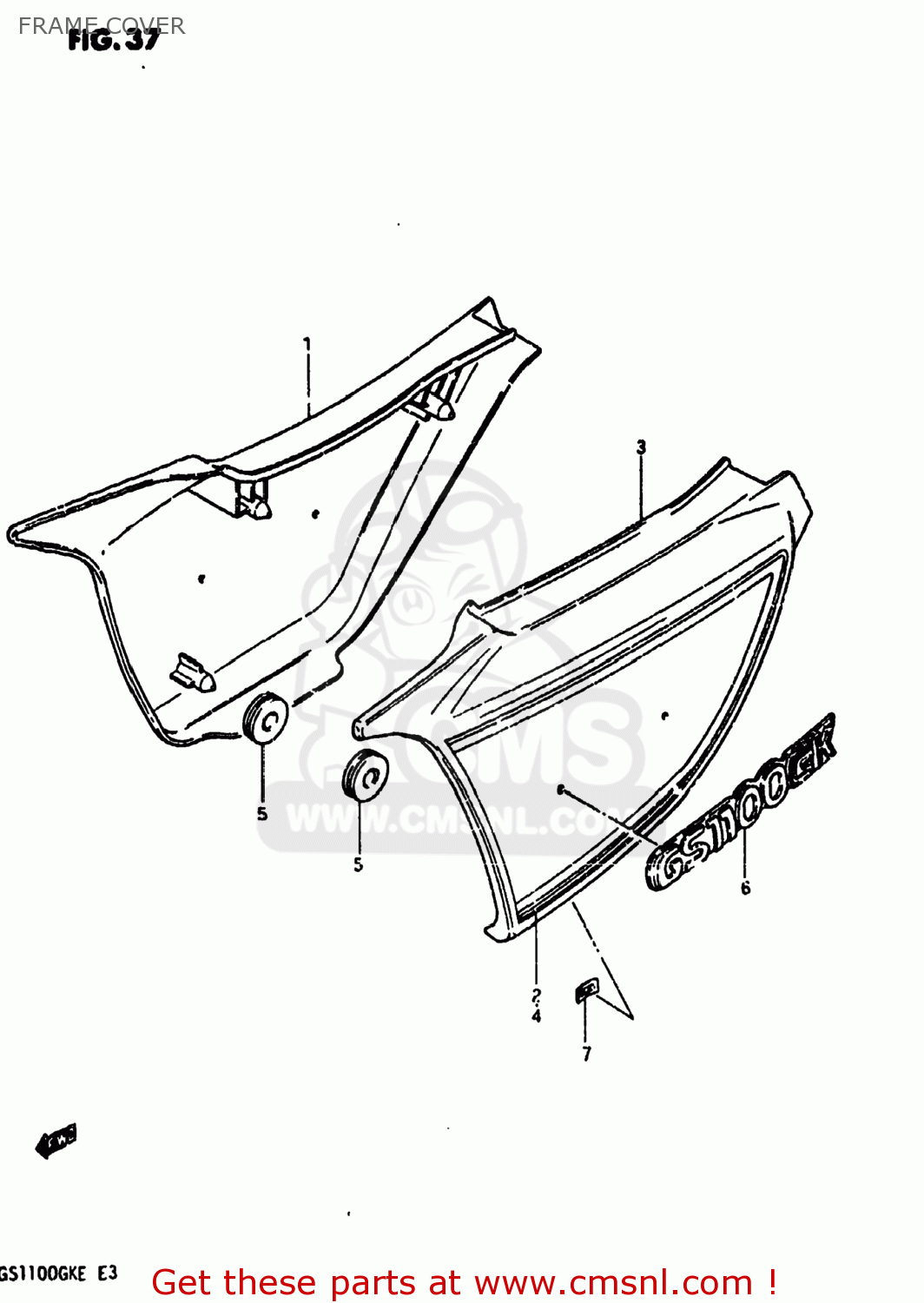

Frame cover diagram GS1100 1984 (E) USA (E03)

FRAME COVER GS1100 1984 (E) USA (E03)

FRAME COVER GS1100 1984 (E) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

471104946020G
ref: 1
47110-45110

COVER,FRAME,RIGHT

€ 76.50

2

681304946098H
ref: 2

TAPE SET,FRAME COVER

€ 12.50

3

472104946020G
ref: 3
47210-45110

COVER,FRAME,LEFT

€ 76.50

4

681404946098H
ref: 4

TAPE SET,FRAME COVER

€ 10.00

5

0932008018
ref: 5

CUSHION

€ 4.00

6

6813149420
ref: 6

EMBLEM,FRAME COVER

€ 18.50

7

0914803002
ref: 7

NUT

€ 3.00
