CYLINDER

GS1100 1984 (E) USA (E03)

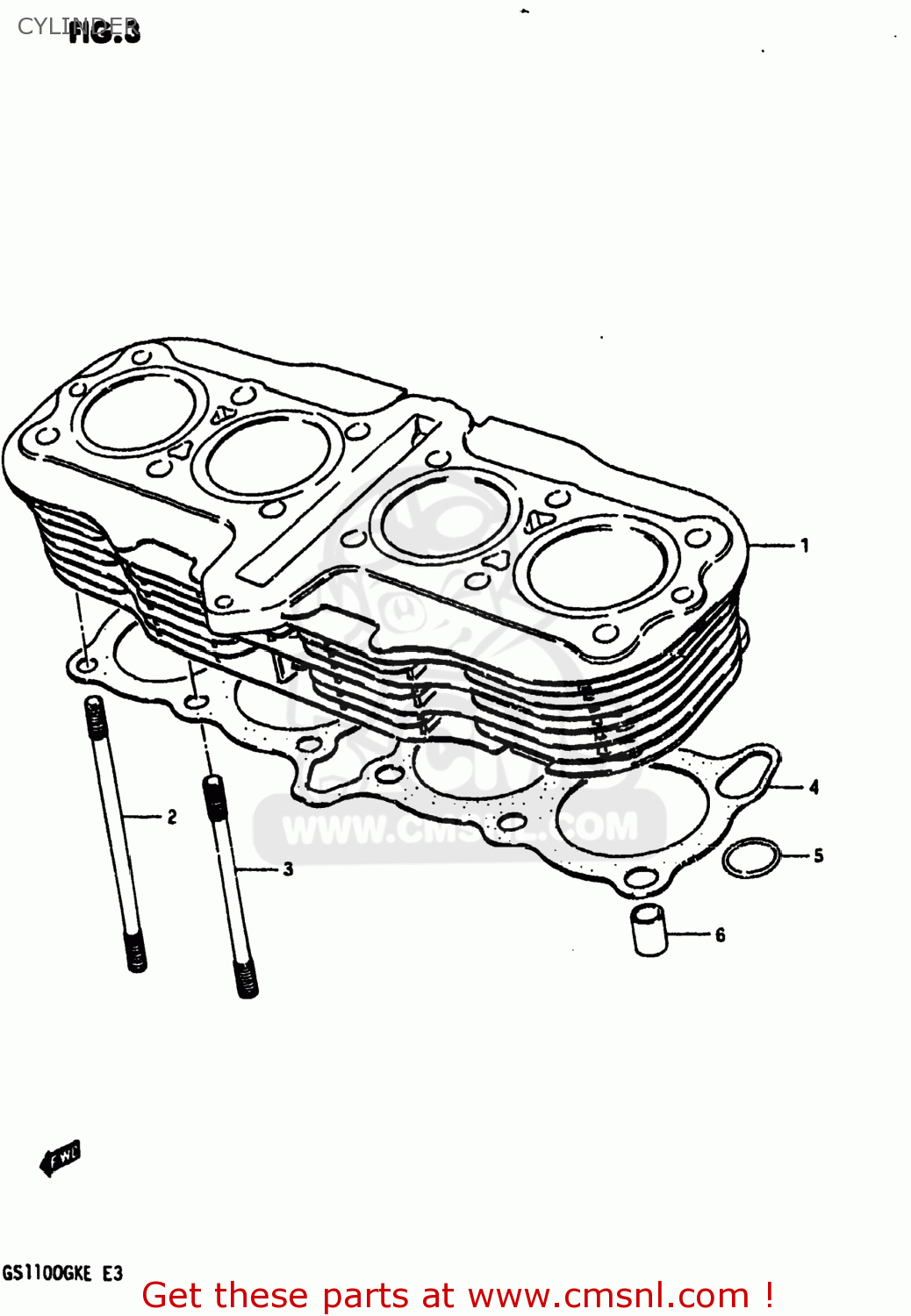

Cylinder diagram GS1100 1984 (E) USA (E03)

CYLINDER GS1100 1984 (E) USA (E03)

CYLINDER GS1100 1984 (E) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121049410
ref: 1

CYLINDER

€ 0.00

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810028
ref: 3
09108-10112

STUD

€ 9.00

4

1124149401
ref: 4
11241-49401-H17

GASKET,CYLINDER (MCA)

€ 56.50

5

0928021011
ref: 5

O RING(D:3.5)

€ 3.50

6

0920613001
ref: 6
04211-13189

PIN

€ 2.50
