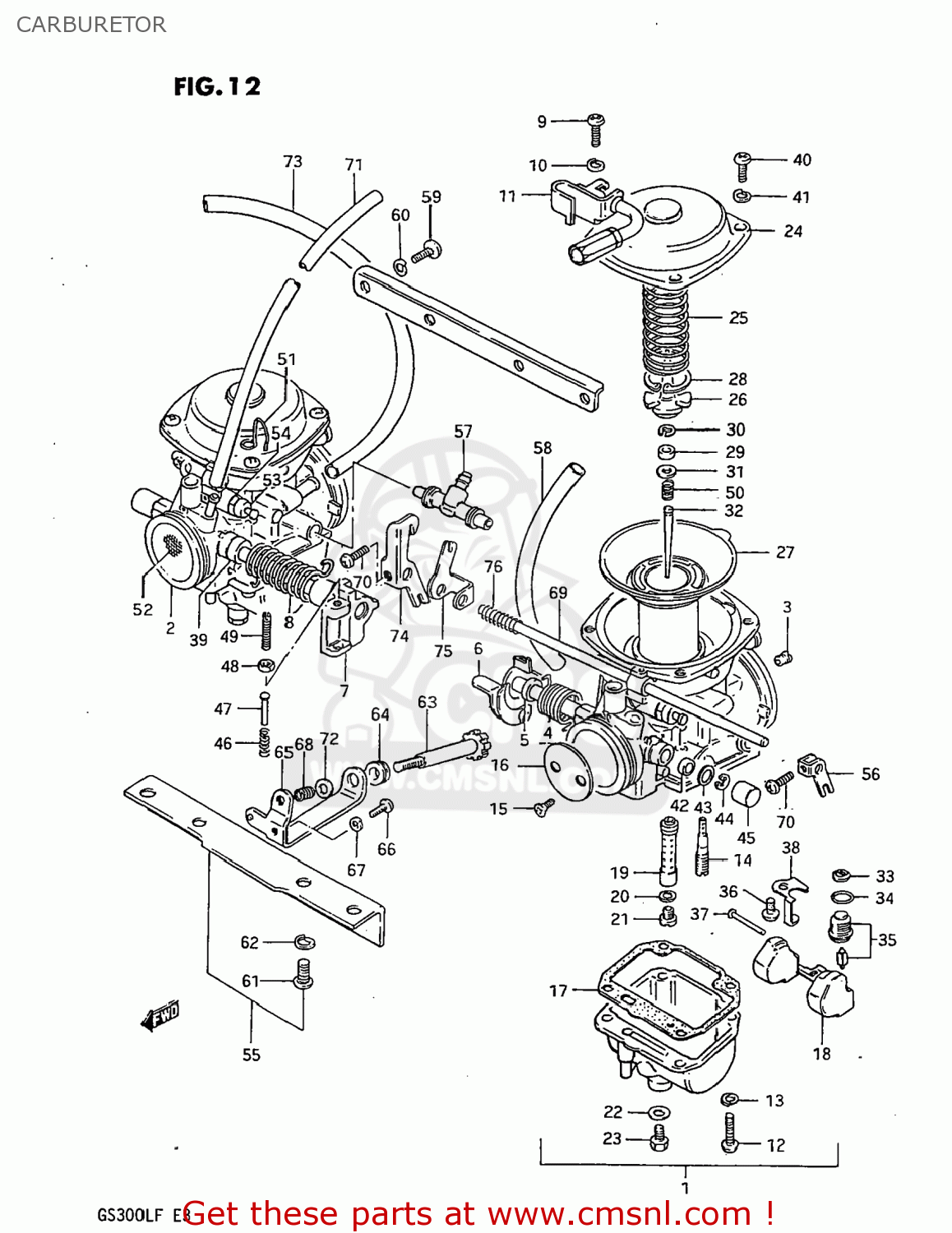

CARBURETOR

ref

part #

description

quantity

1

1320111500
ref: 1

CARBURETOR ASSEMBLY

€ 165.00

2

1320211500
ref: 2

CARBURETOR ASSEMBLY,RIGHT (BS

€ 181.50

3

0949129009
ref: 3

JET,MAIN

€ 9.00

4

1357311400
ref: 4

SPRING

€ 0.00

5

1357445110
ref: 5

RING

€ 3.50

6

1355011400
ref: 6

SHAFT ASSEMBLY

€ 44.50

7

1355011410
ref: 7

SHAFT ASSEMBLY

€ 0.00

8

1357311410
ref: 8

SPRING

€ 0.00

9

0211205128
ref: 9
02112-05127

SCREW

€ 2.50

10

0832121058
ref: 10
08321-0105A

LOCK WASHER

€ 2.00

11

1362711500
ref: 11

BRACKET,THROTTLE CABLE

€ 0.00

12

0211204208
ref: 12
02112-0420A

SCREW

€ 1.00

13

0832121048
ref: 13
08321-0104A

LOCK WASHER

€ 2.00

14

0949217009
ref: 14

JET,PILOT(17.5)

€ 10.50

15

1360444080
ref: 15

SCREW

€ 3.50

16

1355111420
ref: 16

VALVE,THROTTLE

€ 0.00

17

1325111400
ref: 17

GASKET,FLOAT CAHMBER (NAS)

€ 10.50

18

1325044080
ref: 18

FLOAT

€ 31.00

19

0949400300
ref: 19

JET,NEEDLE

€ 13.50

20

1333244080
ref: 20
13382-03110

WASHER,NEEDLE NOZZLE

€ 2.50

21

0949123011
ref: 21

JET,MAIN(115)

€ 10.50

22

1324644080
ref: 22

GASKET (NAS)

€ 3.50

23

1324744080
ref: 23

PLUG,DRAIN

€ 9.50

24

1350211400
ref: 24

COVER,DIAPHRAGM

€ 0.00

25

1350344080
ref: 25

SPRING

€ 11.50

26

1338944030
ref: 26

HOLDER,GUIDE

€ 10.50

27

1350011410
ref: 27

DIAPHRAGM

€ 202.50

28

1358144030
ref: 28

E RING

€ 6.50

29

1338747010
ref: 29

RING

€ 7.50

30

1339431210
ref: 30

CLIP,NEEDLE

€ 3.50

31

1338244030
ref: 31

WASHER

€ 3.50

32

1338311900
ref: 32

NEEDLE JET

€ 8.50

33

1337665010
ref: 33
13376-19F00

FILTER

€ 6.50

34

6626399050
ref: 34
13374-35C00

O RING

€ 6.00

35

1337011400
ref: 35
13370-44500

VALVE ASSEMBLY,NEEDLE

€ 40.50

36

0211204068
ref: 36
02112-0406B

SCREW 4X6

€ 2.00

37

1325492311
ref: 37

PIN,FLOAT

€ 2.00

38

1337311400
ref: 38

PLATE,NEEDLE VALVE FITING

€ 7.00

39

1357411400
ref: 39

RING,THROTTLE VALVE

€ 0.00

40

0211205108
ref: 40
02112-05107

SCREW

€ 2.00

41

0832121058
ref: 41
08321-0105A

LOCK WASHER

€ 2.00

42

1365151010
ref: 42

SEAL

€ 4.00

43

1355747070
ref: 43

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

44

1361744080
ref: 44

E RING

€ 3.50

45

1357847070
ref: 45

CAP

€ 5.50

46

1326844010
ref: 46

SPRING,THROTTLE SCREW

€ 3.00

47

1357547070
ref: 47

PIN,THROTTLE LEVER

€ 2.50

48

1360747070
ref: 48

NUT

€ 4.00

49

1360547080
ref: 49

SCREW

€ 7.00

50

1338844030
ref: 50

SPRING

€ 6.00

51

1369211400
ref: 51

CLIP,HOSE

€ 0.00

52

1328111400
ref: 52

FILTER NET ASSEMBLY

€ 17.50

53

1368209210
ref: 53

CAP,PLUNGER

€ 3.00

54

1329515010
ref: 54
09280-08014

O-RING

€ 3.00

55

1321011500
ref: 55

CARBURETOR ASSEMBLY

€ 0.00

56

1342211400
ref: 56

LEVER

€ 0.00

57

1368511400
ref: 57

NIPPLE,CARBURETOR

€ 19.50

58

1368311420
ref: 58
44420-44AR0

HOSE

€ 13.00

59

0211205128
ref: 59
02112-05127

SCREW

€ 2.50

60

0832121058
ref: 60
08321-0105A

LOCK WASHER

€ 2.00

61

0211206168
ref: 61
02112-06167

SCREW

€ 2.50

62

0832121068
ref: 62
08321-01067

LOCK WASHER

€ 2.50

63

1326711400
ref: 63

SCREW,THROTTLE STOP

€ 12.00

64

1368144110
ref: 64

BUSHING,THROTTLE ADJUSTER

€ 13.00

65

1362744120
ref: 65

BRACKET

€ 0.00

66

0211205088
ref: 66
02112-05087

SCREW

€ 2.00

67

0832121058
ref: 67
08321-0105A

LOCK WASHER

€ 2.00

68

1327193011
ref: 68

SPRING

€ 4.50

69

1341044460
ref: 69

SHAFT,STARTER

€ 19.00

70

1360509300
ref: 70

SCREW,THROTTLE ADJUST

€ 3.50

71

1368345110
ref: 71
09355-45855-600

HOSE

€ 14.00

72

1343247090
ref: 72

WASHER

€ 2.50

73

1368311420
ref: 73
44420-44AR0

HOSE

€ 13.00

74

1341311940
ref: 74

LEVER,STARTER

€ 0.00

75

1341311950
ref: 75

SPACER,STARTER LEVER

€ 0.00

76

1341718630
ref: 76

SPRING

€ 6.00
