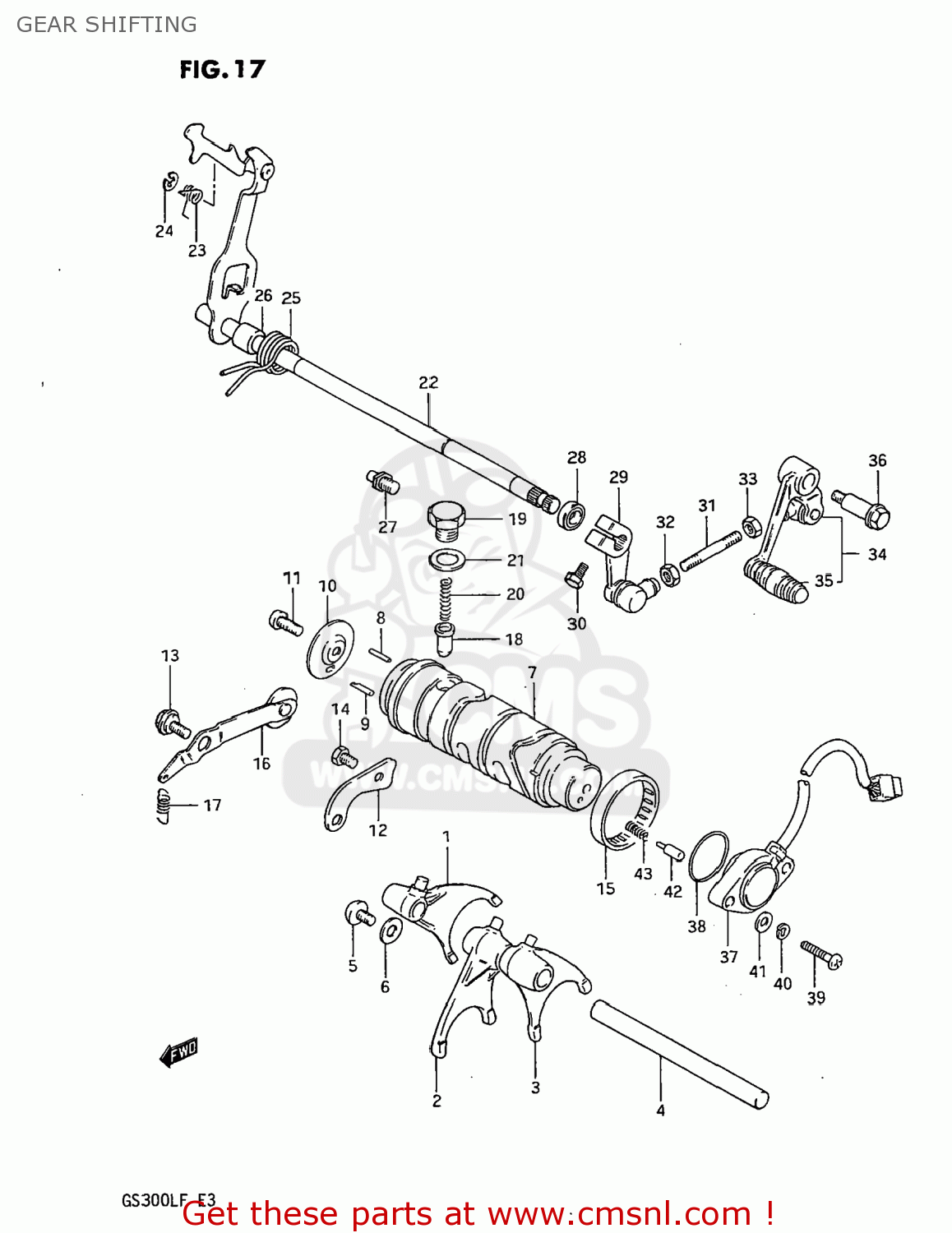

GEAR SHIFTING

ref

part #

description

quantity

1

2521111400
ref: 1

FORK,GEAR SHIFT NO.1

€ 0.00

2

2522144001
ref: 2

FORK,GEAR SHIFT NO.2

€ 74.50

3

2523111400
ref: 3

FORK,GEAR SHIFT NO.3

€ 44.00

4

2541131301
ref: 4
25411-18900

SHAFT,GEAR SHIFT FORK

€ 14.50

5

0214206108
ref: 5
02142-06107

SCREW

€ 2.00

6

0821106141
ref: 6

WASHER

€ 2.50

7

2531147011
ref: 7

CAM,GEAR SHIFT

€ 56.50

8

0926104001
ref: 8

PIN(4X18.5)

€ 1.50

9

0920904013
ref: 9

PIN

€ 5.00

10

2532244000
ref: 10

RETAINER,GEAR SHIFT CAM DR PIN

€ 2.50

11

0211206168
ref: 11
02112-06167

SCREW

€ 2.50

12

2534133300
ref: 12

GUIDE,GEAR SHIFT CAM

€ 6.00

13

0911106019
ref: 13
09111-06054

BOLT

€ 1.50

14

0110706128
ref: 14
01500-06127

BOLT

€ 2.00

15

0926340001
ref: 15

BEARING(40X47X12)

€ 21.00

16

2535011400
ref: 16

STOPPER,GEAR SHIFTING

€ 0.00

17

0944309007
ref: 17

SPRING

€ 14.50

18

2535130010
ref: 18

STOPPER,GEAR SHIFT CAM NO.2

€ 6.50

19

2535430000
ref: 19

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

20

0944006018
ref: 20

SPRING

€ 1.50

21

0916814004
ref: 21

GASKET(14X19.2X2) (NAS)

€ 2.50

22

2551011500
ref: 22

SHAFT,GEAR SHIFT

€ 0.00

23

0944813008
ref: 23

SPRING

€ 7.00

24

0833211078
ref: 24
08332-1107A

E RING

€ 2.00

25

0944426012
ref: 25
09444-26013

SPRING

€ 3.50

26

0918012068
ref: 26

SPACER(12X20X15.3)

€ 3.00

27

2567101000
ref: 27
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

28

0928512002
ref: 28
09285-12006

OIL SEAL

€ 7.00

29

2552047020
ref: 29

ARM,GEAR SHIFT LINK

€ 53.50

30

0110706208
ref: 30
01500-06207

BOLT

€ 2.00

31

2552533200
ref: 31
25525-12C10

ROD,GEAR SHIFT LINK

€ 6.00

32

0831011068
ref: 32
08310-00067

NUT

€ 2.50

33

0914006011
ref: 33

NUT

€ 1.50

34

2560011500
ref: 34

LEVER ASSY,GEAR SHIFT

€ 57.00

35

2565216500
ref: 35

RUBBER,GEAR SHIFT PEDAL

€ 4.00

36

2561744101
ref: 36

SHAFT,GEAR SHIFT LEVER

€ 9.00

37

3772033200
ref: 37
37720-45100

BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL

€ 92.50

38

0928026003
ref: 38
09280-26005

O-RING (D:2.4 ID:26.2)

€ 2.50

39

0211205206
ref: 39
02112-0520B

SCREW

€ 2.50

40

0832121056
ref: 40
08321-0105A

LOCK WASHER

€ 3.00

41

0832221056
ref: 41
08322-0105A

WASHER

€ 2.50

42

0920905011
ref: 42

PIN(5X15.5)

€ 2.00

43

0944004010
ref: 43

SPRING

€ 1.50
