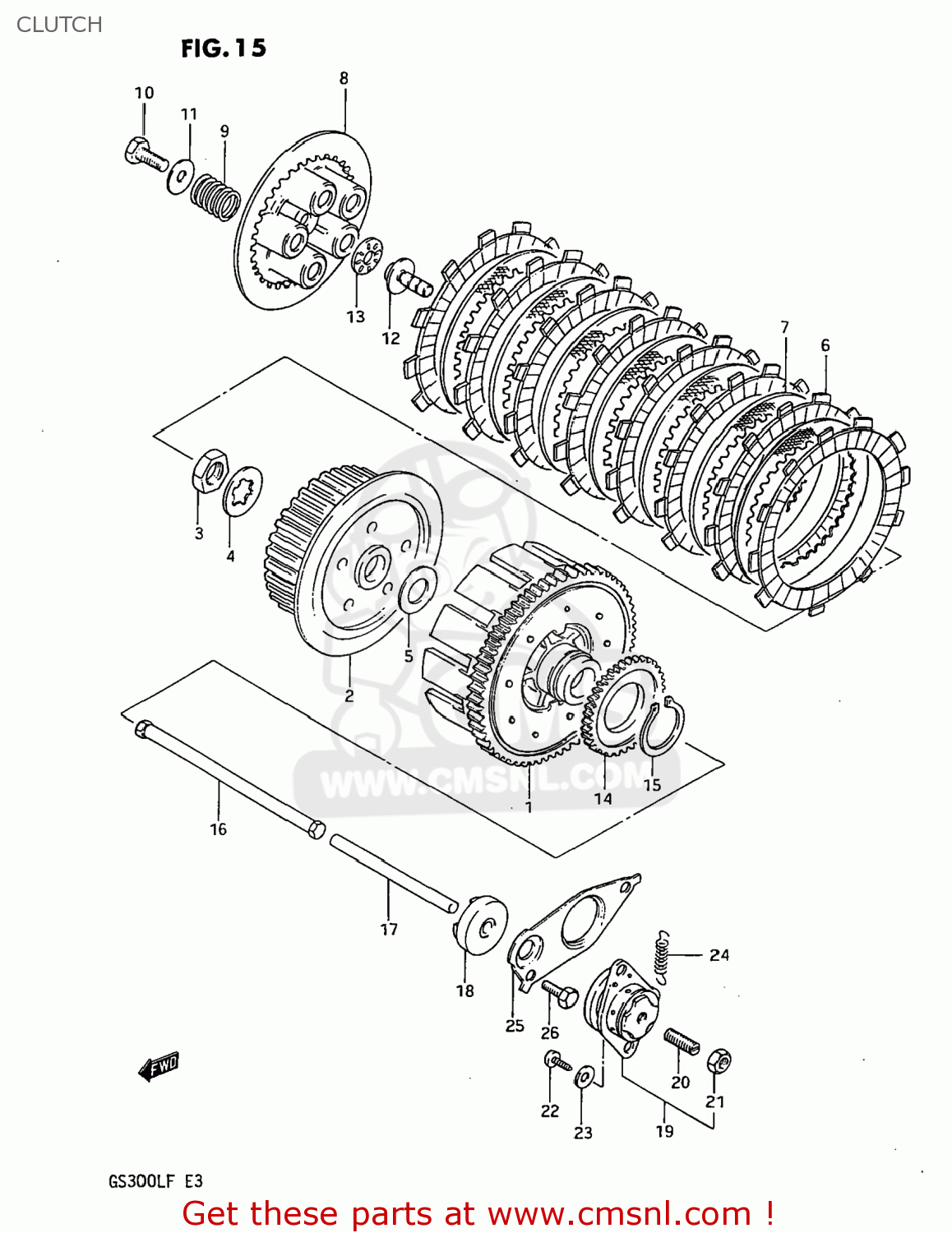

CLUTCH

ref

part #

description

quantity

1

2120011502
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 205.50

2

2141111400
ref: 2

HUB,CLUTCH SLEEVE

€ 63.00

3

0914016001
ref: 3

NUT

€ 4.50

4

0916916003
ref: 4

WASHER

€ 2.00

5

0821120352
ref: 5

WASHER

€ 3.00

6

2144111900
ref: 6
21441-22A01

PLATE,CLUTCH DRIVE (MCA)

€ 11.00

7

2145111900
ref: 7
21451-01B40

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

8

2146246901
ref: 8
21462-02B41

DISC,CLUTCH PRESSURE

€ 21.00

9

0944015014
ref: 9

SPRING

€ 4.00

10

0910005002
ref: 10

BOLT(5X16)

€ 2.00

11

0916005017
ref: 11
09160-05043

WASHER (5.5X16X1.2)

€ 2.50

12

2312111400
ref: 12
23121-39101

ROD,CLUTCH RELEASE

€ 14.00

13

0926310002
ref: 13

BEARING(10X22X2.8)

€ 8.50

14

1632111400
ref: 14

GEAR,OIL PUMP DRIVE

€ 41.00

15

0833131389
ref: 15
08331-31383

CIRCLIP

€ 2.50

16

2311011501
ref: 16

ROD,CLUTCH PUSH

€ 13.00

17

2311144110
ref: 17
23111-05A01

ROD,CLUTCH PUSH

€ 13.50

18

0928506012
ref: 18

SEAL,OIL(6X31X10)

€ 9.50

19

2320044101
ref: 19

SCREW ASSY,CLUTCH RELEASE

€ 63.00

20

0913406010
ref: 20

SCREW(6X25)

€ 3.00

21

0831022068
ref: 21
08310-00067

NUT 6MM

€ 2.50

22

0311106168
ref: 22
03111-06163

SCREW

€ 1.50

23

0832221068
ref: 23
08322-01067

WASHER

€ 2.00

24

0944308001
ref: 24

SPRING

€ 3.00

25

2311711401
ref: 25

PLATE,CLUTCH PUSH ROD

€ 7.00

26

0110706128
ref: 26
01500-06127

BOLT

€ 2.00

all assemblies
