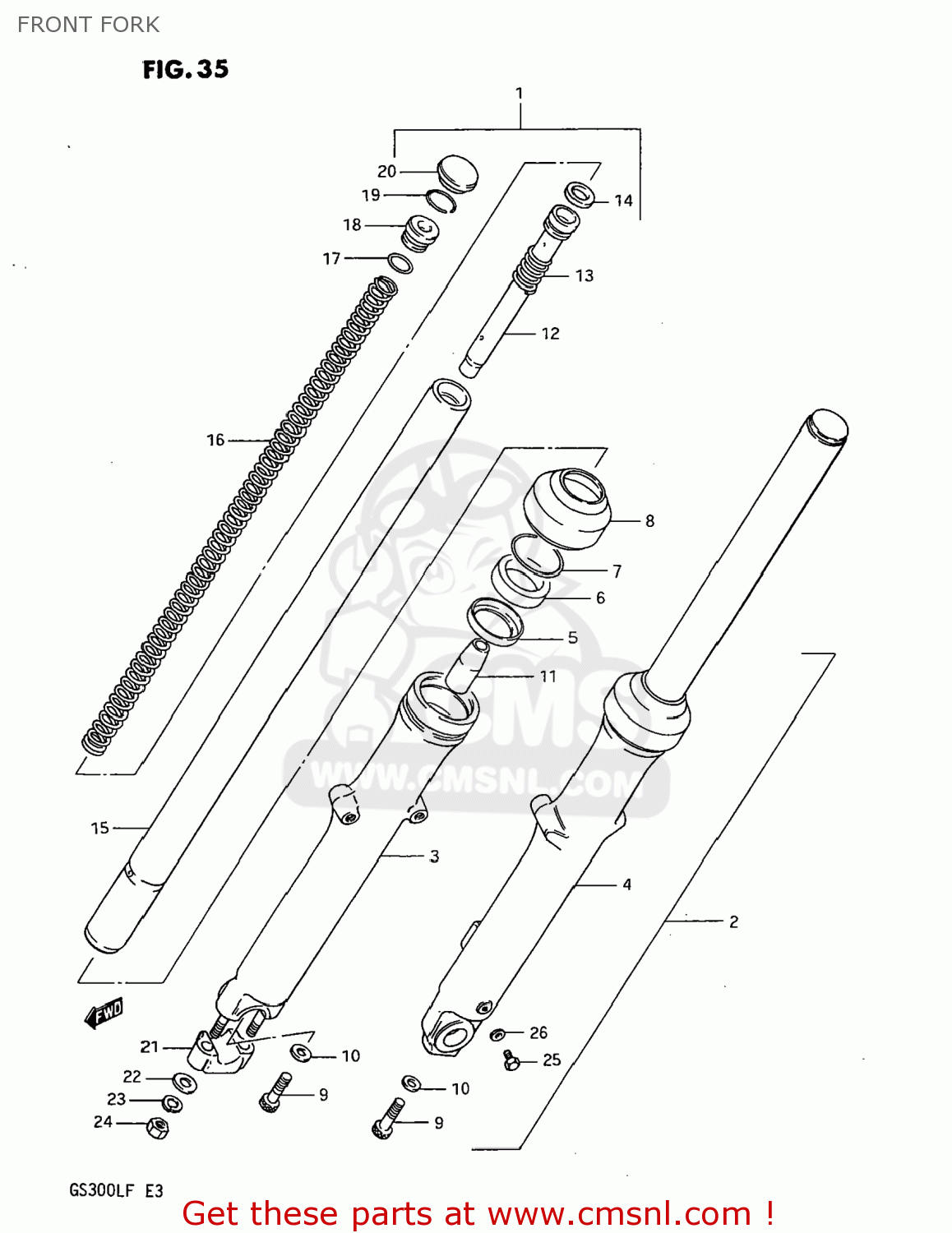

FRONT FORK

ref

part #

description

quantity

1

5110311900
ref: 1

DAMPER ASSEMBLY,FRONT FORK

€ 180.00

2

5110411900
ref: 2

DAMPER ASSEMBLY,FRONT FORK,LEFT

€ 191.50

3

5113011900
ref: 3

TUBE,OUTER,RIGHT

€ 136.00

4

5114011900
ref: 4

TUBE,OUTER,LEFT

€ 106.50

5

5116844030
ref: 5

SPACER,OIL SEAL

€ 4.50

6

5115337310
ref: 6
51153-02B00

OIL SEAL,FRONT FORK

€ 15.00

7

5115633130
ref: 7
51156-02B00

CIRCLIP,FORK OIL SEAL

€ 4.50

8

5157137310
ref: 8

DUST SEAL

€ 22.00

9

5114748130
ref: 9

BOLT(8X27)

€ 3.50

10

5114831030
ref: 10
51148-36011

GASKET (NAS)

€ 4.00

11

5119548000
ref: 11

PIECE,OIL LOCK

€ 8.50

12

5114611400
ref: 12

CYLINDER,FRONT FORK

€ 43.00

13

5117736030
ref: 13

SPRING,REBOUND

€ 4.50

14

5119633130
ref: 14

RING,PISTON

€ 7.50

15

5111044170
ref: 15

TUBE,FORK,INNER

€ 87.00

16

5117111900
ref: 16
51171-11500

SPRING,FRONT FORK

€ 43.50

17

5118133131
ref: 17

O RING

€ 5.00

18

5117548500
ref: 18

SEAT,SPRING

€ 9.00

19

5116948500
ref: 19

RING,STOPPER

€ 2.00

20

5118944301
ref: 20
51189-44031

CAP,FRONT FORK

€ 7.00

21

5113231030
ref: 21

HOLDER,AXLE

€ 31.50

22

0832221088
ref: 22
08322-01087

WASHER

€ 2.00

23

0832121088
ref: 23
08321-01087

LOCK WASHER

€ 2.00

24

0831012088
ref: 24
08310-00087

NUT

€ 2.00

25

0910006011
ref: 25

BOLT(6X8)

€ 2.50

26

5118331030
ref: 26

GASKET,DRAIN,PLUG (NAS)

€ 4.00

all assemblies
