Buy Suzuki GS Parts Online
home
REAR WHEEL
GS300L 1985 (F) USA (E03)

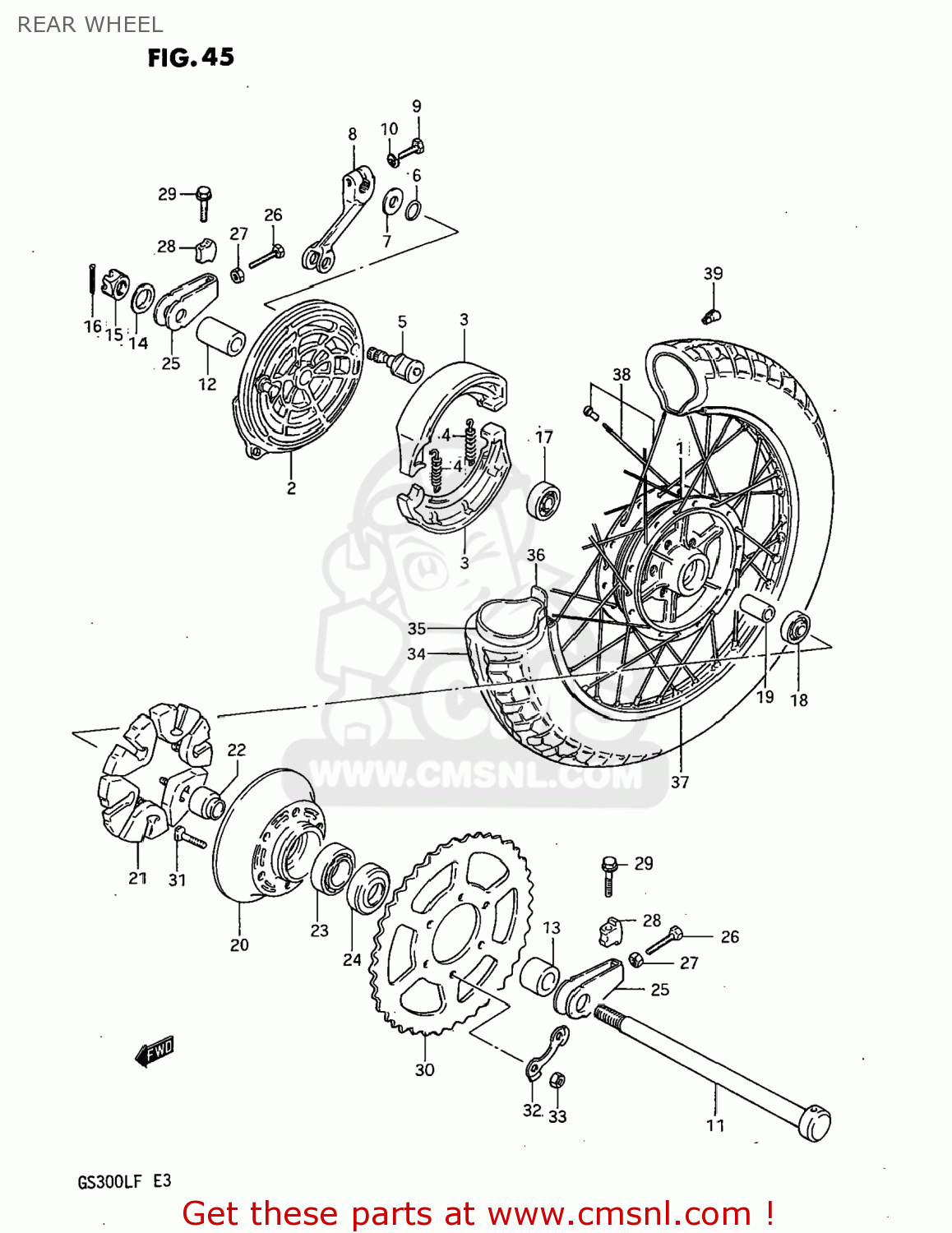

Rear wheel diagram GS300L 1985 (F) USA (E03)
REAR WHEEL GS300L 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411037301
ref: 1
DRUM,REAR HUB
€ 266.50
2
6421044060
ref: 2
PANEL,REAR HUB
€ 111.50
3
6441011301
ref: 3
64400-11860
SHOE,BRAKE
€ 29.50
4
5542030000
ref: 4
SPRING,BRAKE SHOE
€ 3.50
5
5444008003
ref: 5
54440-08004
CAM,FRONT BRAKE
€ 19.00
6
0928015001
ref: 6
09280-15003
O-RING,BOSS
€ 2.00
7
0916015001
ref: 7
09160-15048
WASHER (15X24X1.6)
€ 2.50
8
6445144400
ref: 8
LEVER,RR BRAKE CAM
€ 42.00
9
0110706258
ref: 9
01500-06257
BOLT
€ 2.00
10
0832121068
ref: 10
08321-01067
LOCK WASHER
€ 2.50
11
6471144400
ref: 11
AXLE,REAR
€ 33.50
12
0918017043
ref: 12
SPACER(17.5X28X44.8)
€ 7.00
13
0918017042
ref: 13
SPACER(17X30.5X22.3)
€ 8.50
14
0916017013
ref: 14
09160-17050
WASHER (17X30X3.2)
€ 2.00
15
0914116001
ref: 15
NUT
€ 6.50
16
0411140308
ref: 16
04111-4030A
PIN,COTTER
€ 1.50
17
0814363037
ref: 17
BEARING
€ 23.00
18
0814362037
ref: 18
BEARING
€ 18.50
19
0918017056
ref: 19
09180-17056-XC0
SPACER (17.6X24X57)
€ 19.00
20
6461144001
ref: 20
DRUM,REAR SPROCKET MOUNT
€ 84.00
21
6465111300
ref: 21
ABSORBER,RR HUB SHOCK
€ 12.50
22
6473333000
ref: 22
64733-3300V
SPACER,REAR HUB BEARING
€ 20.00
23
0811362057
ref: 23
BEARING
€ 18.00
24
0928530001
ref: 24
SEAL,OIL(30.5X52X8)
€ 20.00
25
6141047200
ref: 25
ADJUSTER,CHAIN
€ 58.00
26
0910408018
ref: 26
09104-08034
BOLT 8X50
€ 3.00
27
0831012088
ref: 27
08310-00087
NUT
€ 2.00
28
6143331000
ref: 28
61433-3100V
SUPPORTER,CHAIN ADJUST
€ 22.50
29
0151708504
ref: 29
01550-0850B
BOLT, UPPER
€ 2.50
30
6451111530
ref: 30
SPROCKET,REAR (NT:42)
€ 61.50
31
0910510003
ref: 31
BOLT 10X33
€ 2.00
32
0916910006
ref: 32
WASHER
€ 4.50
33
0914010026
ref: 33
09140-10026-XC0
NUT
€ 2.00
34-1
6510044510
ref: 34-1
65100-38330
TIRE
€ 210.00
34-2
6510044530
ref: 34-2
65100-38330
TIRE
€ 210.00
35
6520037320
ref: 35
65200-37300
TUBE ASSY,WHEEL,INNER 4.60-16
€ 31.50
36
6526133030
ref: 36
PROTECTOR,INNER TUBE
€ 5.50
37
6531144900
ref: 37
RIM,REAR WHEEL
€ 71.00
38
6532044900
ref: 38
SPOKE SET,REAR WHEEL
€ 22.00
39-1
5541111000
ref: 39-1
55411-26G00
BALANCER,WHEEL (B)
€ 4.50
39-2
5541211000
ref: 39-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
