FRONT WHEEL
GS300L 1985 (F) USA (E03)

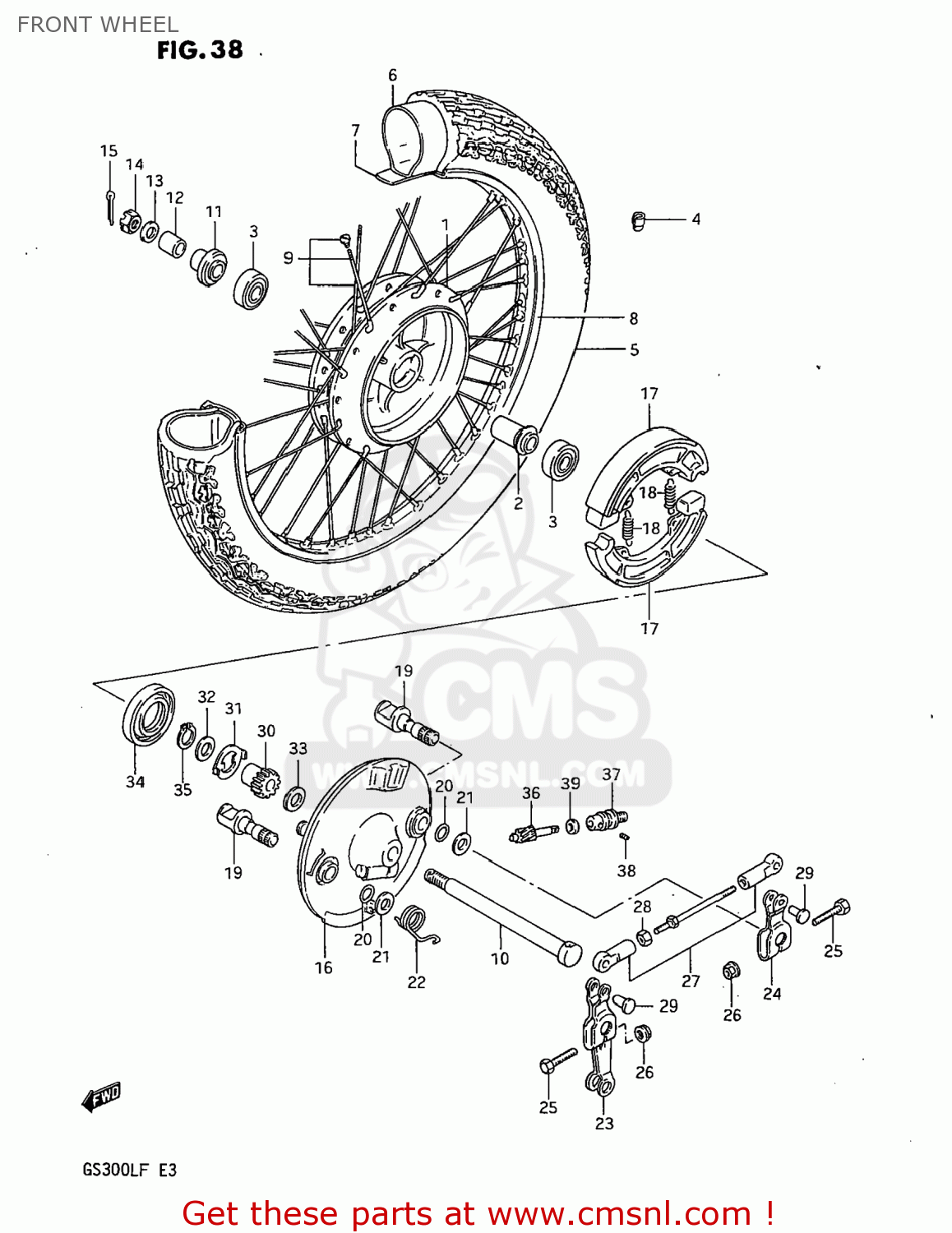

Front wheel diagram GS300L 1985 (F) USA (E03)
FRONT WHEEL GS300L 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411044710
ref: 1
HUB,FRONT
€ 129.00
2
5473011900
ref: 2
SPACER,FRONT HUB BEARING
€ 6.50
3
0812363027
ref: 3
BEARING
€ 19.00
4-1
5541111000
ref: 4-1
55411-26G00
BALANCER,WHEEL (B)
€ 4.50
4-2
5541211000
ref: 4-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
5-1
5510044410
ref: 5-1
TIRE
€ 80.00
5-2
5510044530
ref: 5-2
TIRE,FRONT
€ 79.50
6
5520011601
ref: 6
55200-26F00
TUBE,INNER
€ 24.50
7
5526111010
ref: 7
PROTECTOR,INNER TUBE
€ 3.50
8
5531144900
ref: 8
65311-11220
RIM,FRONT WHEEL
€ 114.50
9
5532044900
ref: 9
SPOKE SET,FRONT
€ 28.00
10
5471133002
ref: 10
54711-3300V
AXLE,FRONT
€ 41.00
11
5474018402
ref: 11
SPACER,FR AXLE,R
€ 18.50
12
0918015034
ref: 12
SPACER(15X22X30)
€ 7.00
13
0832221128
ref: 13
08322-01127
WASHER
€ 2.00
14
0831431128
ref: 14
08314-3112A
NUT 12MM
€ 2.00
15
0411130308
ref: 15
04111-3030A
COTTER PIN
€ 1.50
16
5421044701
ref: 16
PANEL,FRONT HUB
€ 120.50
17
5441044700
ref: 17
54400-44820
SHOE,BRAKE
€ 30.50
18
5542030000
ref: 18
SPRING,BRAKE SHOE
€ 3.50
19
5444011004
ref: 19
64440-38A00
CAM,FRONT BRAKE
€ 43.00
20
0928015001
ref: 20
09280-15003
O-RING,BOSS
€ 2.00
21
0916015001
ref: 21
09160-15048
WASHER (15X24X1.6)
€ 2.50
22
0944830001
ref: 22
09448-30001-XC0
SPRING
€ 16.00
23
5445011900
ref: 23
LEVER,FRONT BRAKE CAM NO
€ 9.00
24
5446111900
ref: 24
LEVER,FRONT BRAKE CAM NO
€ 7.50
25
0151706308
ref: 25
01550-06307
BOLT
€ 2.00
26
0915906017
ref: 26
08319-31067
NUT
€ 2.50
27
5440044810
ref: 27
SHOE SET,BRAKE
€ 17.50
28
0831022058
ref: 28
08310-00057
NUT
€ 2.50
29
5448311900
ref: 29
NO PRODUCT DESCRIPTION AVAILABLE
€ 3.00
30
5461136001
ref: 30
GEAR,SPEEDOMETER
€ 26.50
31
5466149100
ref: 31
DRIVER,SPEEDOMETER GEAR
€ 2.50
32
0916022001
ref: 32
WASHER(22.5X27X1)
€ 2.00
32
0916022001
ref: 32
WASHER(22.5X27X1)
€ 2.00
33
0821122281
ref: 33
09181-22139
SHIM
€ 4.00
34
0928555002
ref: 34
OIL SEAL
€ 9.00
35
0833111229
ref: 35
08331-3122A
CIRCLIP
€ 2.00
36
5462110200
ref: 36
PINION,SPEEDOMETER
€ 12.00
37
5463201001
ref: 37
BUSH,METER GEAR OUTER
€ 9.00
38
0913403101
ref: 38
09134-03101-A05
SCREW
€ 1.50
39
0916005001
ref: 39
09160-05001-A05
WASHER (5.1X9X0.4)
€ 2.00
