FRAME COVER (GS400N,EN)

GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

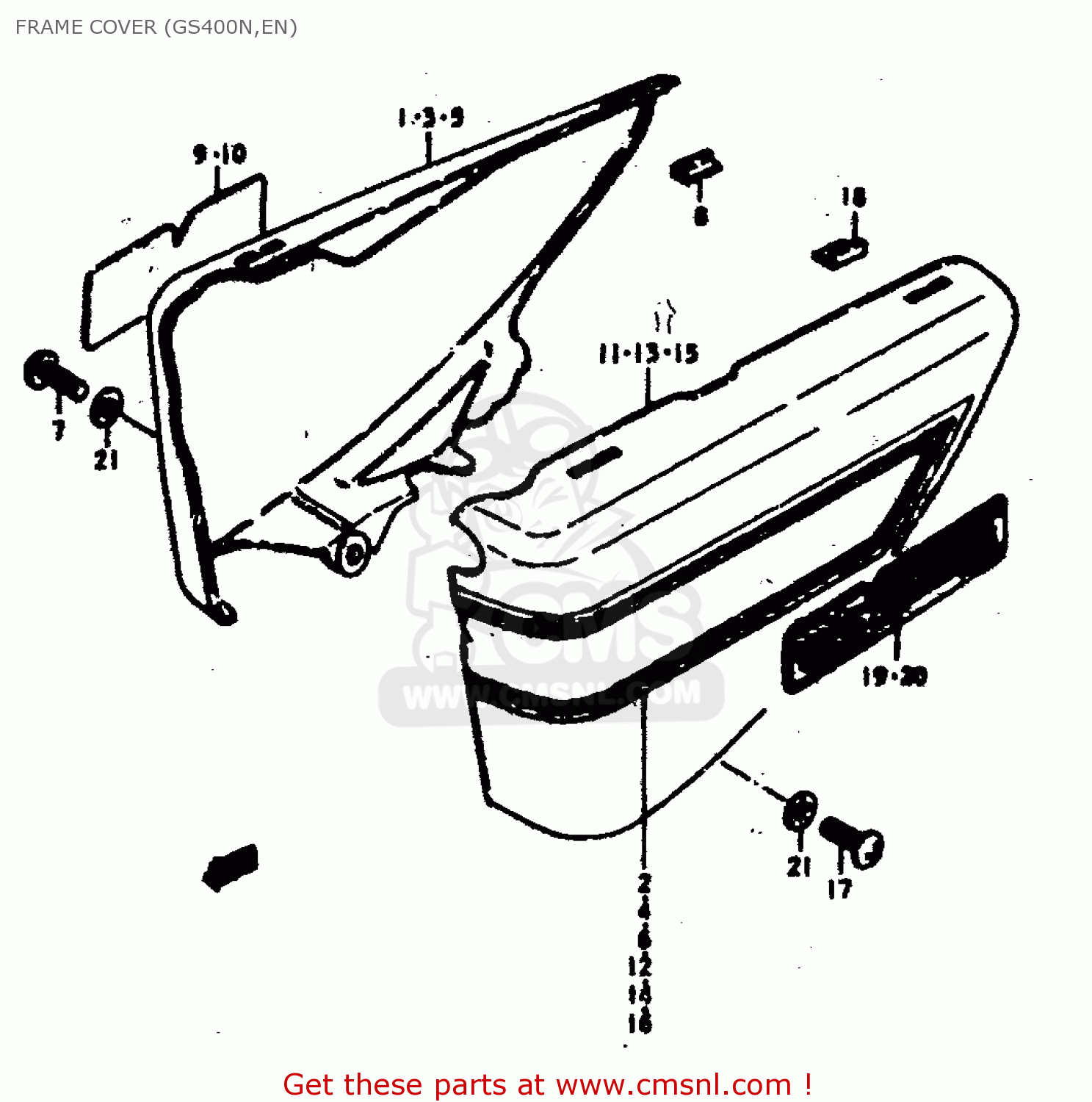

Frame cover (gs400n,en) diagram GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

FRAME COVER (GS400N,EN) GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
FRAME COVER (GS400N,EN) GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
FRAME COVER (GS400N,EN) GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
prices are in EUR
ref
part #
description
quantity
1
4711144001019
ref: 1
COVER,FRAME,R(BLACK)
4711144001019
€ 56.00
2
681364400065M
ref: 2
TAPE, RH
€ 0.00
3
471114400103J
ref: 3
COVER, FRAME RH
471114400103J
€ 56.00
4
6813644000998
ref: 4
TAPE, RH
€ 0.00
5
471114400105J
ref: 5
COVER, FRAME RH
€ 56.00
6
681364400067R
ref: 6
TAPE, RH
681364400067R
€ 16.00
7
0912506009
ref: 7
SCREW (6X15)
0912506009
€ 3.00
8
4711745000
ref: 8
CUSHION,FRAME COVER
4711745000
€ 1.50
10
6813144050
ref: 10
EMBLEM
€ 0.00
11
4721144000019
ref: 11
COVER,FRAME,LEFT
4721144000019
€ 62.50
12
681464400065M
ref: 12
TAPE, LH
€ 0.00
13
472114400003J
ref: 13
COVER, FRAME LH
€ 62.50
14
6814544000998
ref: 14
TAPE,LH
€ 0.00
15
472114400005J
ref: 15
COVER, FRAME LH
€ 62.50
16
681464400067R
ref: 16
TAPE, LH
€ 0.00
17
0214206458
ref: 17
SCREW
0214206458
€ 2.00
18
4711745000
ref: 18
CUSHION,FRAME COVER
4711745000
€ 1.50
20
6813144050
ref: 20
EMBLEM
€ 0.00
21
0916006039
ref: 21
WASHER (6.5X18X1.6)
0916006039
€ 2.00
