REAR BRAKE

GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

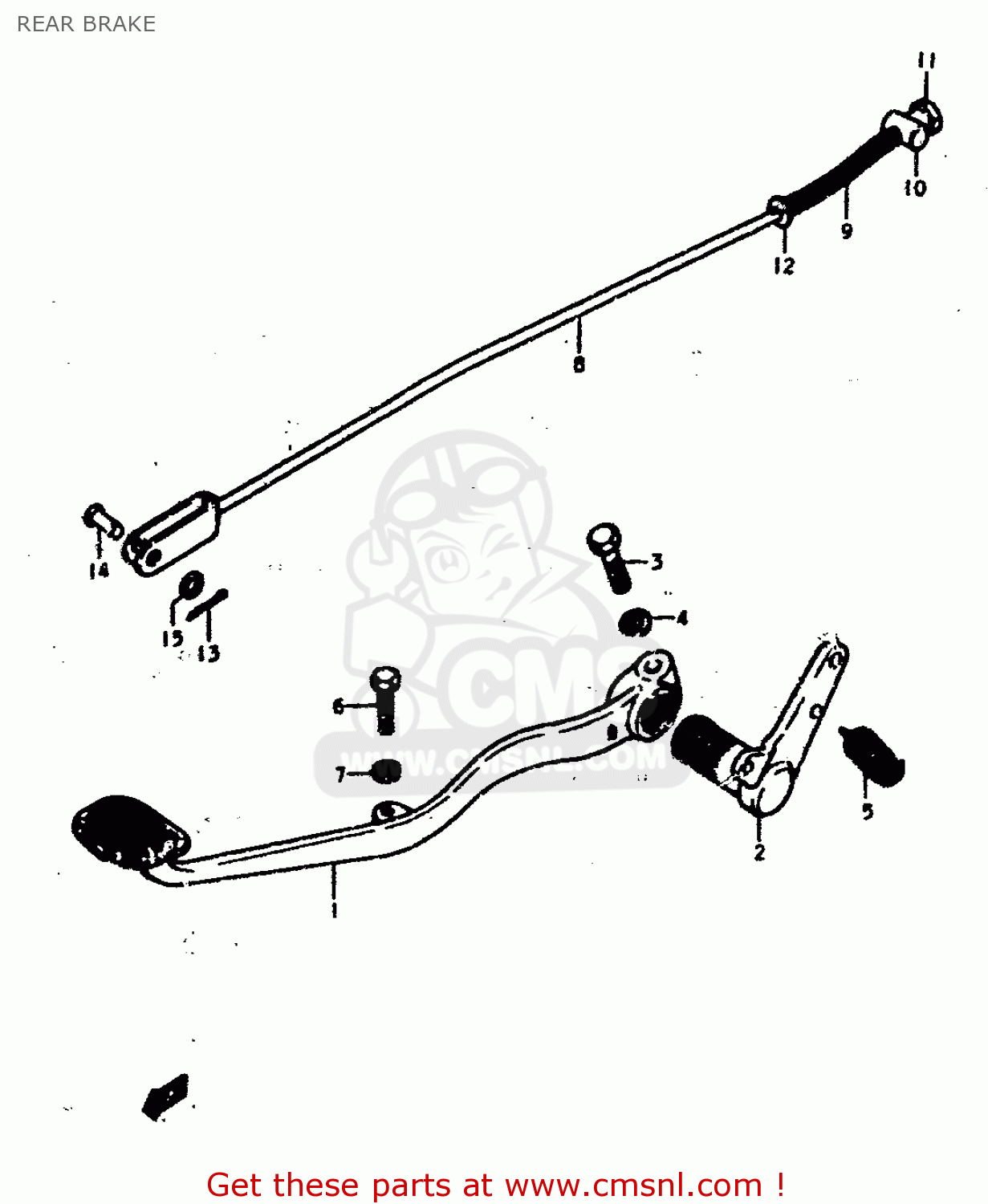

Rear brake diagram GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

REAR BRAKE GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
REAR BRAKE GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
REAR BRAKE GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
prices are in EUR
ref
part #
description
quantity
1
4311044000
ref: 1
PEDAL,BRAKE
4311044000
€ 69.00
2
4312044000
ref: 2
ARM,BRAKE PEDAL ROD
4312044000
€ 43.50
3
0110708258
ref: 3
BOLT
0110708258
€ 2.50
4
0832121088
ref: 4
LOCK WASHER
0832121088
€ 2.00
5
0944314013
ref: 5
SPRING
0944314013
€ 21.50
6
0110706208
ref: 6
BOLT
0110706208
€ 2.00
7
0831011068
ref: 7
NUT
0831011068
€ 2.50
8
4330044000
ref: 8
ROD ASSEMBLY,REAR BRAKE
4330044000
€ 10.00
9
0944009004
ref: 9
SPRING
0944009004
€ 2.00
10
0920913003
ref: 10
PIN
0920913003
€ 3.50
11
0915006001
ref: 11
NUT
0915006001
€ 3.50
12
0832221068
ref: 12
WASHER
0832221068
€ 2.00
13
0411120208
ref: 13
PIN 20X20
0411120208
€ 1.50
14
0920006013
ref: 14
PIN(L:13.5)
0920006013
€ 2.00
15
0832221068
ref: 15
WASHER
0832221068
€ 2.00
