Buy Suzuki GS Parts Online


OIL PUMP

GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

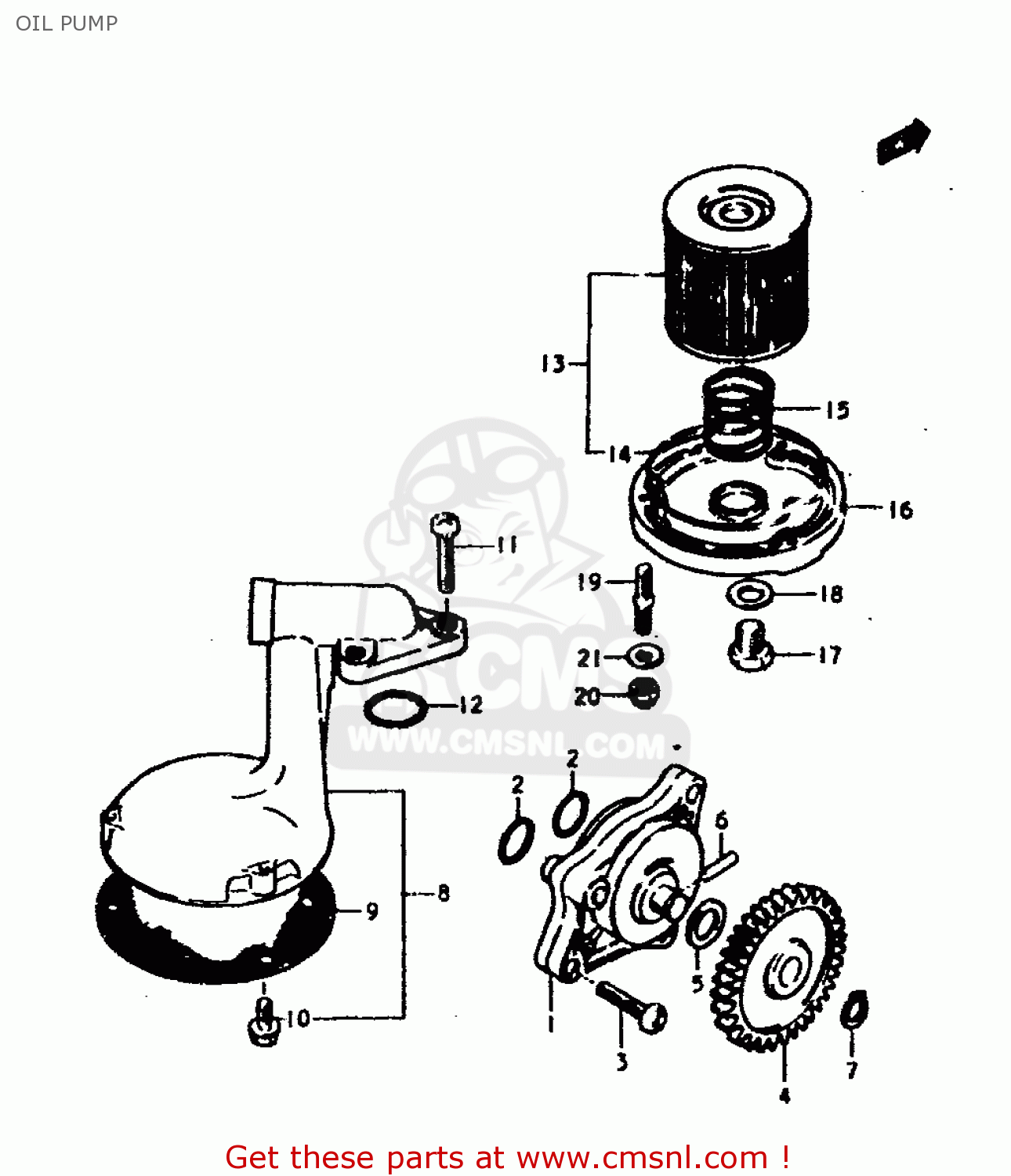

Oil pump diagram GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

OIL PUMP GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
OIL PUMP GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
OIL PUMP GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
prices are in EUR
ref
part #
description
quantity
1-2
1640045013
ref: 1-2
PUMP ASSEMBLY,OIL
1640045013
€ 185.00
2
0928013004
ref: 2
O RING(D:1.9,ID:13)
0928013004
€ 2.50
3
0211206258
ref: 3
SCREW
€ 2.00
4
1633144000
ref: 4
NT:29
GEAR,OIL PUMP DRIVEN
1633144000
€ 34.00
5
0822110185
ref: 5
SHIM
0822110185
€ 2.00
6
0926104009
ref: 6
PIN(4X15.8)
0926104009
€ 1.50
7
0833131109
ref: 7
CIRCLIP
0833131109
€ 2.00
8
1652044000
ref: 8
STRAINER,ENGINE OIL
€ 0.00
9
1652244001
ref: 9
NET
1652244001
€ 6.50
10
0151706108
ref: 10
BOLT
0151706108
€ 2.50
11
0211206208
ref: 11
SCREW
€ 2.00
12
0928016005
ref: 12
O RING(D:2.4,ID:15.8)
0928016005
€ 1.50
13
1650045810
ref: 13
ENGINE OIL FILTER SET
€ 11.50
14
1651845000
ref: 14
O RING,OIL FILTER CHAMBER CAP
1651845000
€ 7.50
15
0944032004
ref: 15
SPRING
0944032004
€ 13.50
16-2
1651245001
ref: 16-2
CAP,OIL FILTER
€ 37.50
19
0142106208
ref: 19
STUD 6X20
0142106208
€ 2.50
20
0831311068
ref: 20
NUT
0831311068
€ 2.00
21
0832221068
ref: 21
WASHER
0832221068
€ 2.00
