SPECIAL MARKET (E2)

GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

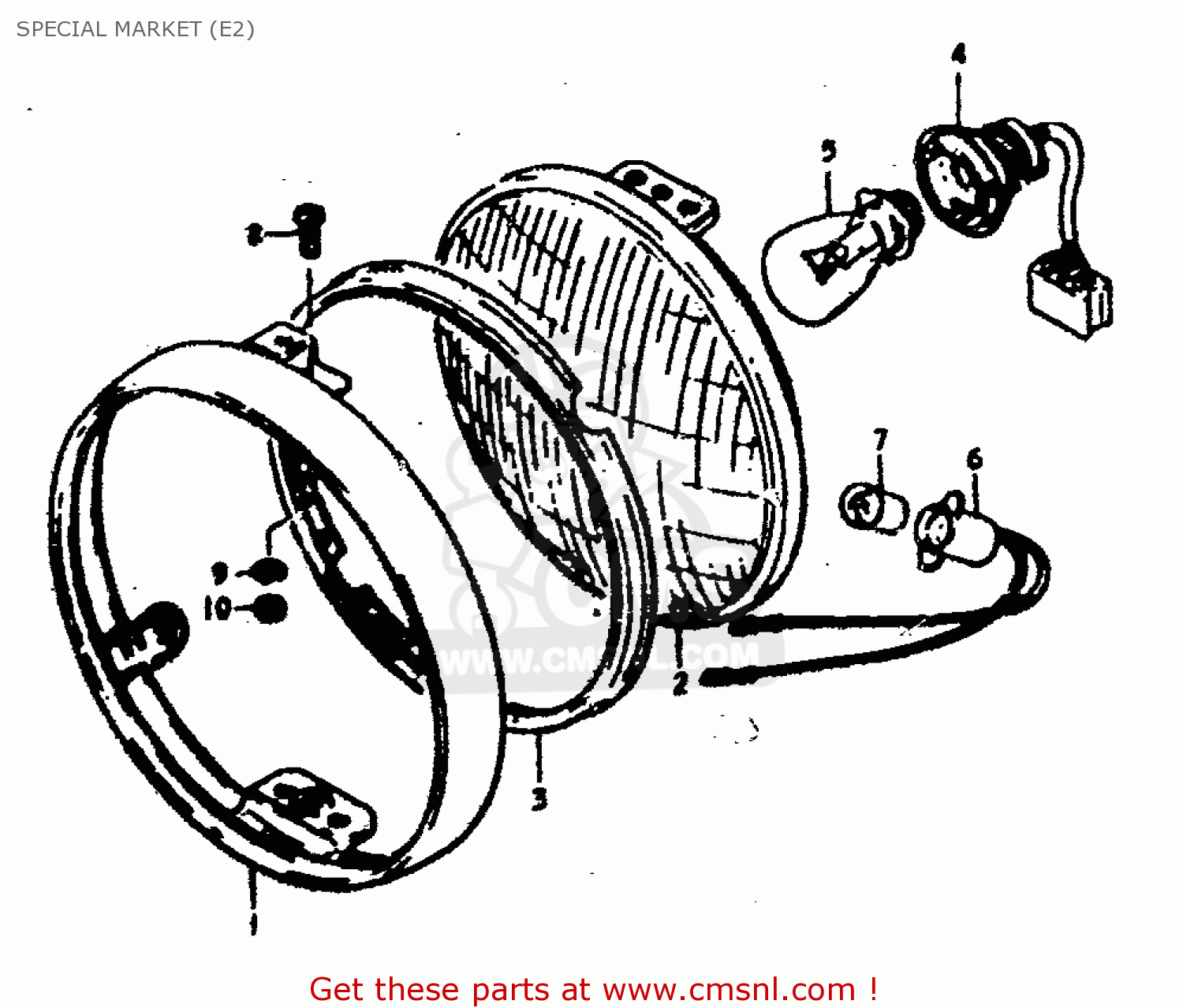

Special market (e2) diagram GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

SPECIAL MARKET (E2) GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
SPECIAL MARKET (E2) GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
SPECIAL MARKET (E2) GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
prices are in EUR
ref
part #
description
quantity
0
3510044651
ref: 0
HEADLAMP ASSY
€ 156.00
1
3511144030
ref: 1
RIM
3511144030
€ 46.50
2
3512113617
ref: 2
UNIT
€ 0.00
3-2
3512733032
ref: 3-2
RETAINER,HEADLAMP
3512733032
€ 17.00
4
3517115616
ref: 4
SOCKET
3517115616
€ 14.50
5
0947112033
ref: 5
12V,35/35W
BULB 12V35/35W
0947112033
€ 6.00
6
3611828660
ref: 6
SOCKET
3611828660
€ 11.50
7
0947112001
ref: 7
12V,3.4W
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
8
0211205108
ref: 8
SCREW
0211205108
€ 2.00
9
0832121058
ref: 9
LOCK WASHER
0832121058
€ 2.00
10
0831022058
ref: 10
NUT
€ 2.50
