FUEL COCK

GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

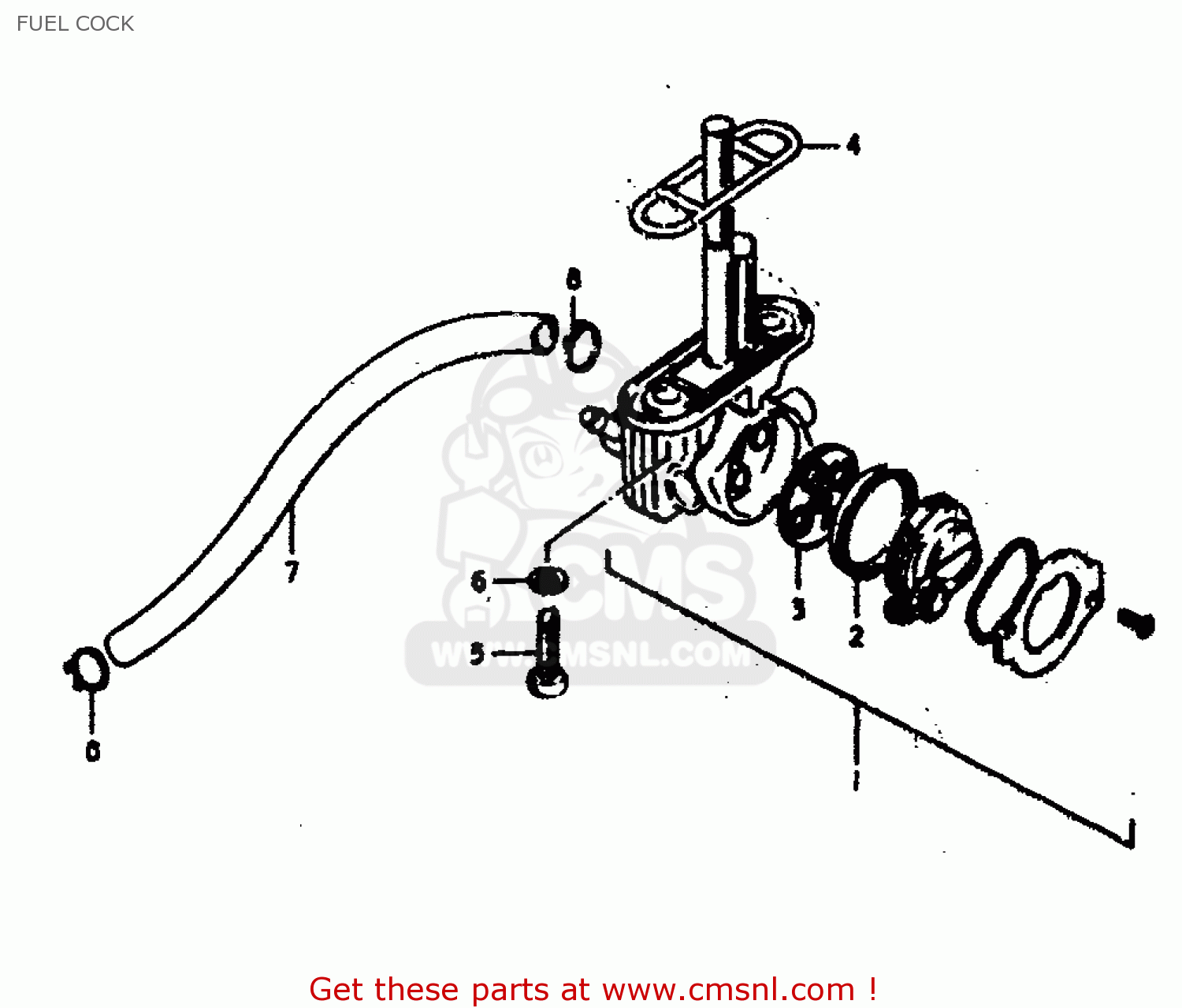

Fuel cock diagram GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

FUEL COCK GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
FUEL COCK GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
FUEL COCK GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
prices are in EUR
ref
part #
description
quantity
1-2
4430044011
ref: 1-2
COCK ASSY,FUEL
4430044011
€ 385.50
2
4435333154
ref: 2
V SEAL,FUEL COCK
4435333154
€ 7.00
3
4434133150
ref: 3
GASKET (NAS)
4434133150
€ 3.00
4
4434831050
ref: 4
TO 44348-31051
GASKET,FUEL COCK (NAS)
4434831050
€ 14.50
5
0912806006
ref: 5
BOLT(6X20)
0912806006
€ 2.00
6
0916806010
ref: 6
GASKET
0916806010
€ 2.00
7
0934307020
ref: 7
TO 09343-07026
HOSE
€ 17.50
8
0940110401
ref: 8
CLIP
0940110401
€ 1.50
