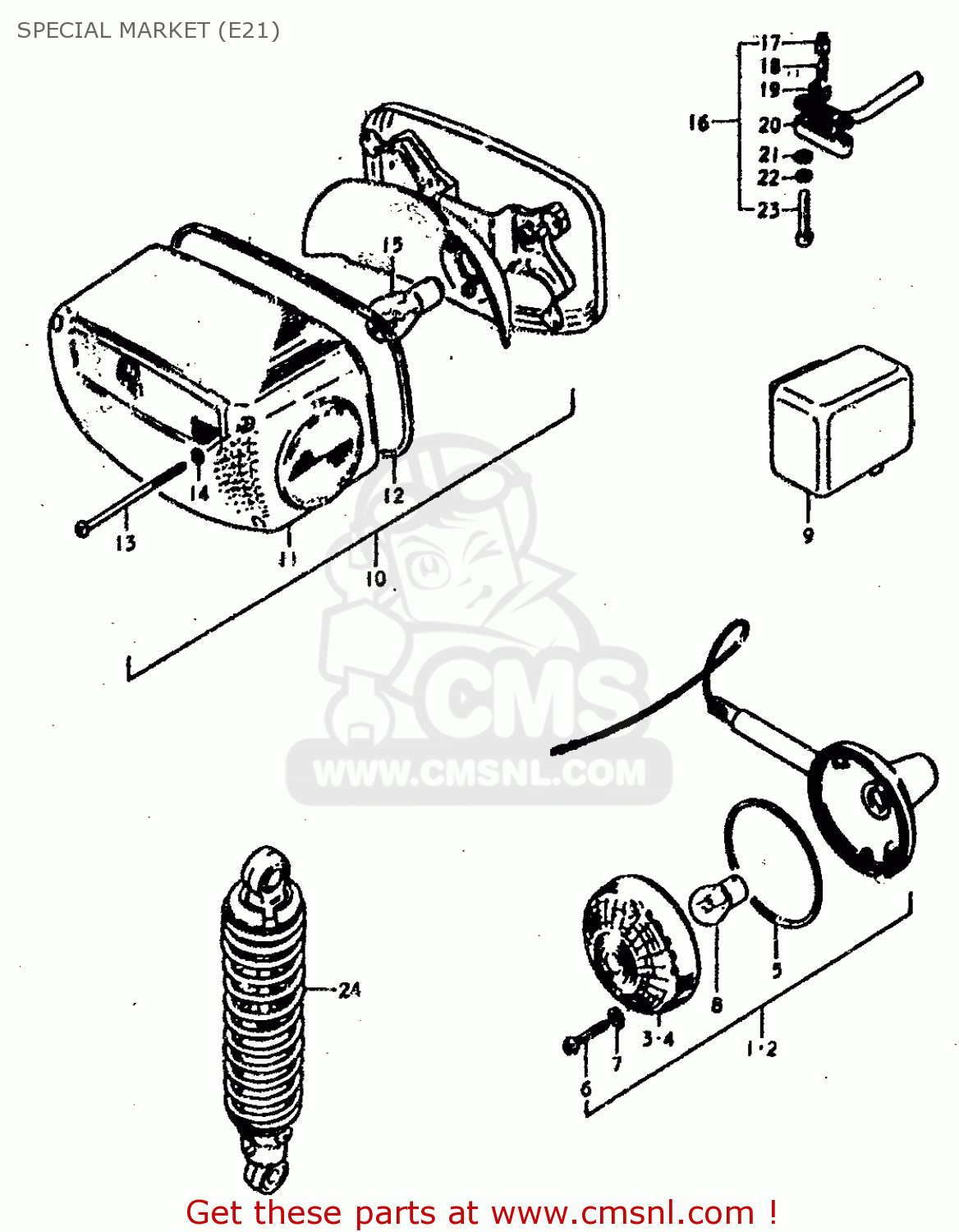

SPECIAL MARKET (E21)

GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

Special market (e21) diagram GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

SPECIAL MARKET (E21) GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

SPECIAL MARKET (E21) GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

prices are in EUR

ref

part #

description

quantity

1-2

3560144071
ref: 1-2

LAMP ASSY, FRONT TURN SIGNAL

€ 78.50

2-2

3560347612
ref: 2-2

LAMP ASSY, REAR TURN SIGNAL

€ 65.00

3

3561228620
ref: 3

LENS

€ 10.50

4

3565239280
ref: 4

LENS

€ 9.00

5

3561328620
ref: 5

GASKET (NAS)

€ 7.00

6-1

3562347610
ref: 6-1

SCREW

€ 1.50

6-2

0321104208
ref: 6-2

SCREW

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

0947112056
ref: 8
12V,21W

BULB 12V 21W

€ 5.00

10-2

3571045021
ref: 10-2

LAMP ASSY, REAL COMBINATION

€ 156.00

11-2

3571245612
ref: 11-2

LENS,REAR COMBINATION LAMP

€ 68.00

12

3571345010
ref: 12

GASKET (NAS)

€ 9.00

13

0912504002
ref: 13

SCREW (4X55)

€ 1.50

14

3562743010
ref: 14

GASKET (NAS)

€ 2.00

15

0947112058
ref: 15
12V,21/5W

BULB

€ 4.00

16

5746033700
ref: 16

SWITCH ASSY,STOP

€ 38.50

17

5746118600
ref: 17

HOLDER

€ 4.50

18

5746218600
ref: 18

SPRING

€ 4.50

19

5746318600
ref: 19

PLATE

€ 4.50

20

5748133010
ref: 20

COVER,FR BK TERMINAL BASE

€ 19.50

21

0832221038
ref: 21

WASHER

€ 2.00

22

0832121038
ref: 22

LOCK WASHER

€ 1.50

23

0912503105
ref: 23

SCREW

€ 2.50

24-2

6210044732
ref: 24-2

SHOCK ABSORBER,REAR

€ 173.50
