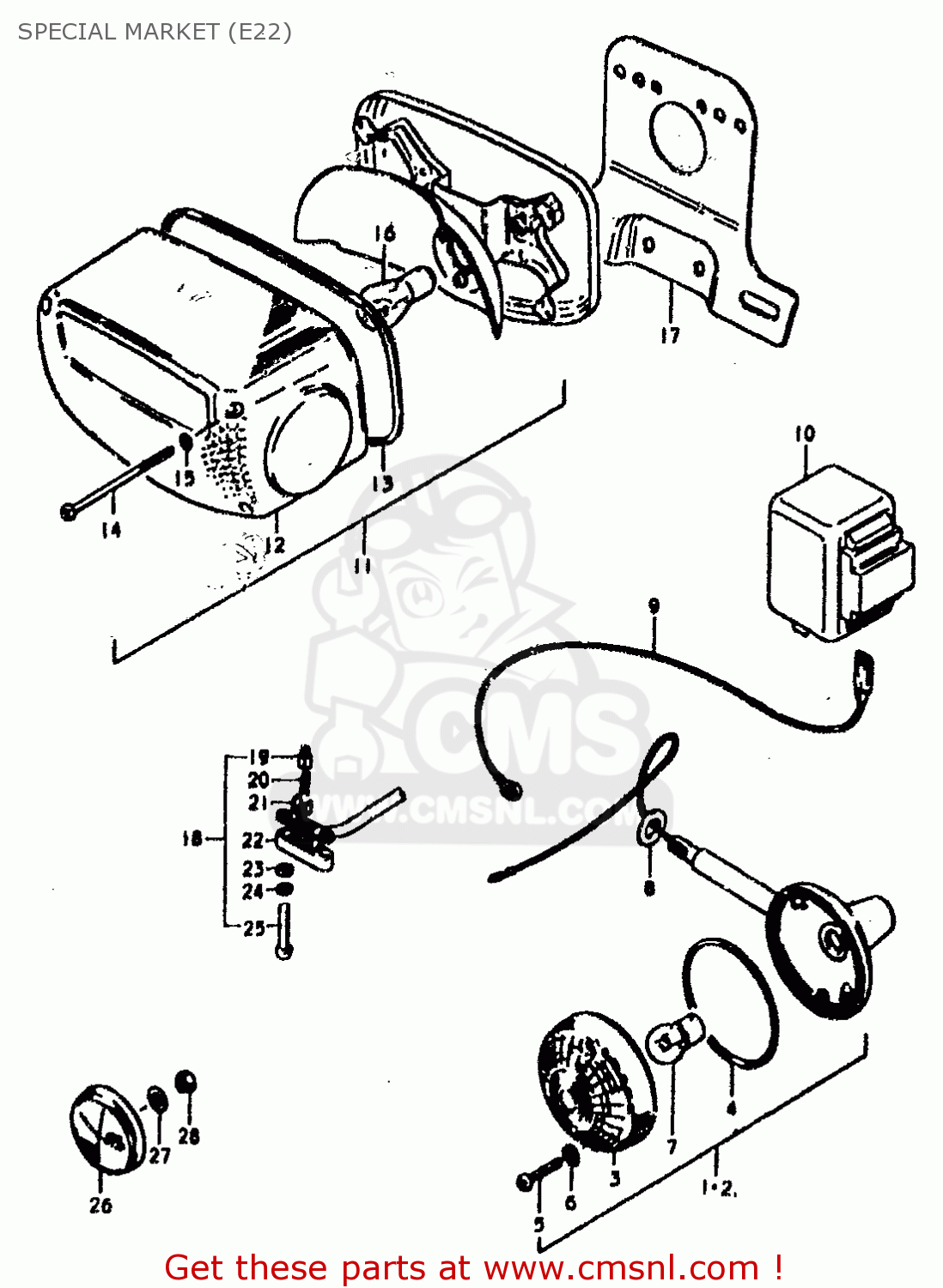

SPECIAL MARKET (E22)

GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

Special market (e22) diagram GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

SPECIAL MARKET (E22) GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

SPECIAL MARKET (E22) GS400E 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

prices are in EUR

ref

part #

description

quantity

1

3560134650999
ref: 1

LAMP ASSY,FRONT TURN SIGNAL

€ 64.50

2

3560344620999
ref: 2

LAMP ASSY,REAR TURN SIGNAL

€ 0.00

3

3561228620
ref: 3

LENS

€ 10.50

4

3561328620
ref: 4

GASKET (NAS)

€ 7.00

5

0211204258
ref: 5

SCREW 4X25

€ 2.00

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0947112045
ref: 7
PHILIPS/HELLA DM,K15

BULB(12V21W)

€ 5.00

8

0916010020
ref: 8

WASHER(10.5X24X1)

€ 2.00

9

3685231900
ref: 9

LEAD WIRE,TURN SIGNAL RELAY (-)

€ 6.00

10

3861045090
ref: 10

RELAY, TURN SIGNAL

€ 67.50

11-2

3571045632999
ref: 11-2

LAMP ASSY, REAR COMBINATION

€ 149.50

12

3571245631
ref: 12

LENS,RR COMBIN

€ 41.00

13

3571345010
ref: 13

GASKET (NAS)

€ 9.00

14

0912504002
ref: 14

SCREW (4X55)

€ 1.50

15

3562743010
ref: 15

GASKET (NAS)

€ 2.00

16

0947112046
ref: 16
PHILIPS/HELLA DM,K15

BULB(12V21/5W)

€ 1.50

17-2

3592745603
ref: 17-2

PLATE,LICENCE

€ 14.00

18

5746033700
ref: 18

SWITCH ASSY,STOP

€ 38.50

19

5746118600
ref: 19

HOLDER

€ 4.50

20

5746218600
ref: 20

SPRING

€ 4.50

21

5746318600
ref: 21

PLATE

€ 4.50

22

5748133010
ref: 22

COVER,FR BK TERMINAL BASE

€ 19.50

23

0832221038
ref: 23

WASHER

€ 2.00

24

0832121038
ref: 24

LOCK WASHER

€ 1.50

25

0912503105
ref: 25

SCREW

€ 2.50

26-2

3597045611
ref: 26-2

REFLECTOR,REFLEX

€ 47.50

27-2

0918006048
ref: 27-2

SPACER

€ 2.00

28

0831011058
ref: 28

NUT

€ 2.50
