CAM SHAFT-VALVE
GS450GA 1985 (F) USA (E03)

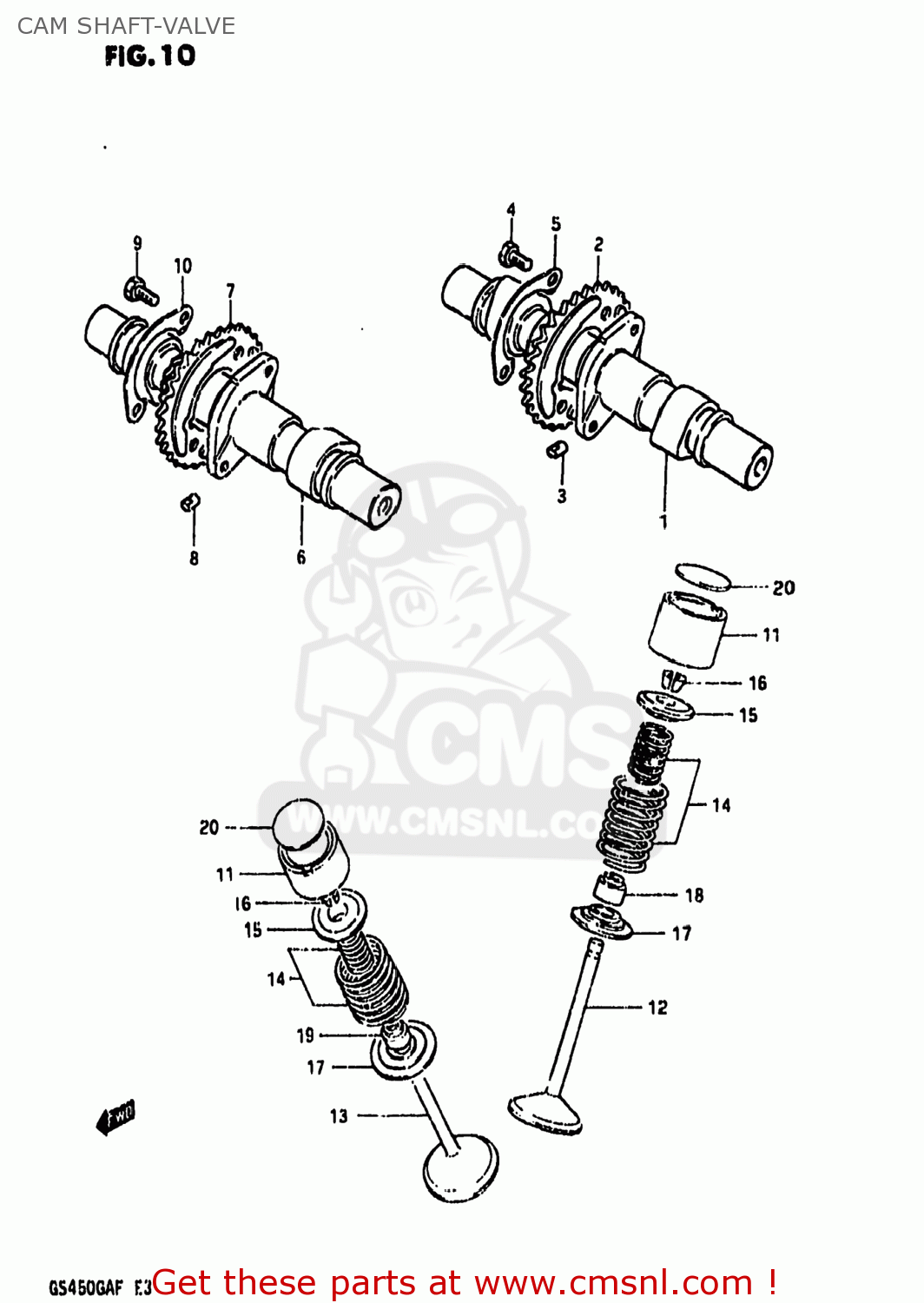

Cam shaft-valve diagram GS450GA 1985 (F) USA (E03)
CAM SHAFT-VALVE GS450GA 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271144500
ref: 1
CAMSHAFT
€ 72.50
2
1274045041
ref: 2
12740-45042
SPROCKET,CAMSHAFT
€ 67.00
3
1274844000
ref: 3
PIN,SPROCKET
€ 4.50
4
0911106027
ref: 4
BOLT(6X12.5)
€ 1.50
5
1274744000
ref: 5
12747-44001
WASHER,CAM CHAIN SPROCKET
€ 2.00
6
1272144500
ref: 6
CAMSHAFT,EXHAUST
€ 94.00
7
1275045041
ref: 7
SPROCKET,EXHAUST CAM(NT:30)
€ 65.00
8
1274844000
ref: 8
PIN,SPROCKET
€ 4.50
9
0911106027
ref: 9
BOLT(6X12.5)
€ 1.50
10
1274744000
ref: 10
12747-44001
WASHER,CAM CHAIN SPROCKET
€ 2.00
11
1289145001
ref: 11
TAPPET,INTAKE
€ 45.00
12
1291145030
ref: 12
VALVE,INTAKE
€ 28.00
13
1291245021
ref: 13
VALVE,EXHAUST
€ 51.50
14
1292044110
ref: 14
SPRING SET,VALVE
€ 13.50
15
1293145000
ref: 15
12931-45001
RETAINER,VALVE SPRING
€ 6.00
16
1293245010
ref: 16
COTTER VALVE
€ 2.50
17
1293345001
ref: 17
SEAT,VALVE SPRING
€ 5.50
18
0928907002
ref: 18
SEAL,OIL(7X14.4X9)
€ 3.00
19
0928907003
ref: 19
SEAL,OIL(7X14.5X10.5)
€ 3.00
20-1
1289245000
ref: 20-1
12892-45000-215
SHIM,TAPPET
€ 17.00
20-10
1289245009
ref: 20-10
12892-45000-260
SHIM,TAPPET
€ 16.00
20-11
1289245010
ref: 20-11
12892-45000-265
SHIM,TAPPET
€ 17.00
20-12
1289245011
ref: 20-12
12892-45000-270
SHIM,TAPPET
€ 17.00
20-13
1289245012
ref: 20-13
12892-45000-275
SHIM,TAPPET
€ 17.00
20-14
1289245013
ref: 20-14
12892-45000-280
SHIM,TAPPET
€ 16.50
20-15
1289245014
ref: 20-15
12892-45000-285
SHIM,TAPPET
€ 17.00
20-16
1289245015
ref: 20-16
12892-45000-290
SHIM,TAPPET
€ 17.00
20-17
1289245016
ref: 20-17
12892-45000-295
SHIM,TAPPET
€ 17.00
20-18
1289245017
ref: 20-18
12892-45000-300
SHIM,TAPPET
€ 17.00
20-19
1289245018
ref: 20-19
12892-45000-305
SHIM,TAPPET
€ 16.50
20-2
1289245001
ref: 20-2
12892-45000-220
SHIM,TAPPET
€ 16.50
20-20
1289245019
ref: 20-20
12892-45000-310
SHIM,TAPPET
€ 17.00
20-3
1289245002
ref: 20-3
12892-45000-225
SHIM,TAPPET
€ 17.00
20-4
1289245003
ref: 20-4
12892-45000-230
SHIM,TAPPET
€ 16.00
20-5
1289245004
ref: 20-5
12892-45000-235
SHIM,TAPPET
€ 16.50
20-6
1289245005
ref: 20-6
12892-45000-240
SHIM,TAPPET
€ 17.00
20-7
1289245006
ref: 20-7
12892-45000-245
SHIM,TAPPET
€ 17.00
20-8
1289245007
ref: 20-8
12892-45000-250
SHIM,TAPPET
€ 16.00
20-9
1289245008
ref: 20-9
12892-45000-255
SHIM,TAPPET
€ 16.50
21
1280045810
ref: 21
12800-45811
SHIM SET,TAPPET
€ 1,227.00
21
1280045810
ref: 21
12800-45811
SHIM SET,TAPPET
€ 1,227.00
22
9900069480
ref: 22
99000-69521
CASE
€ 152.50
