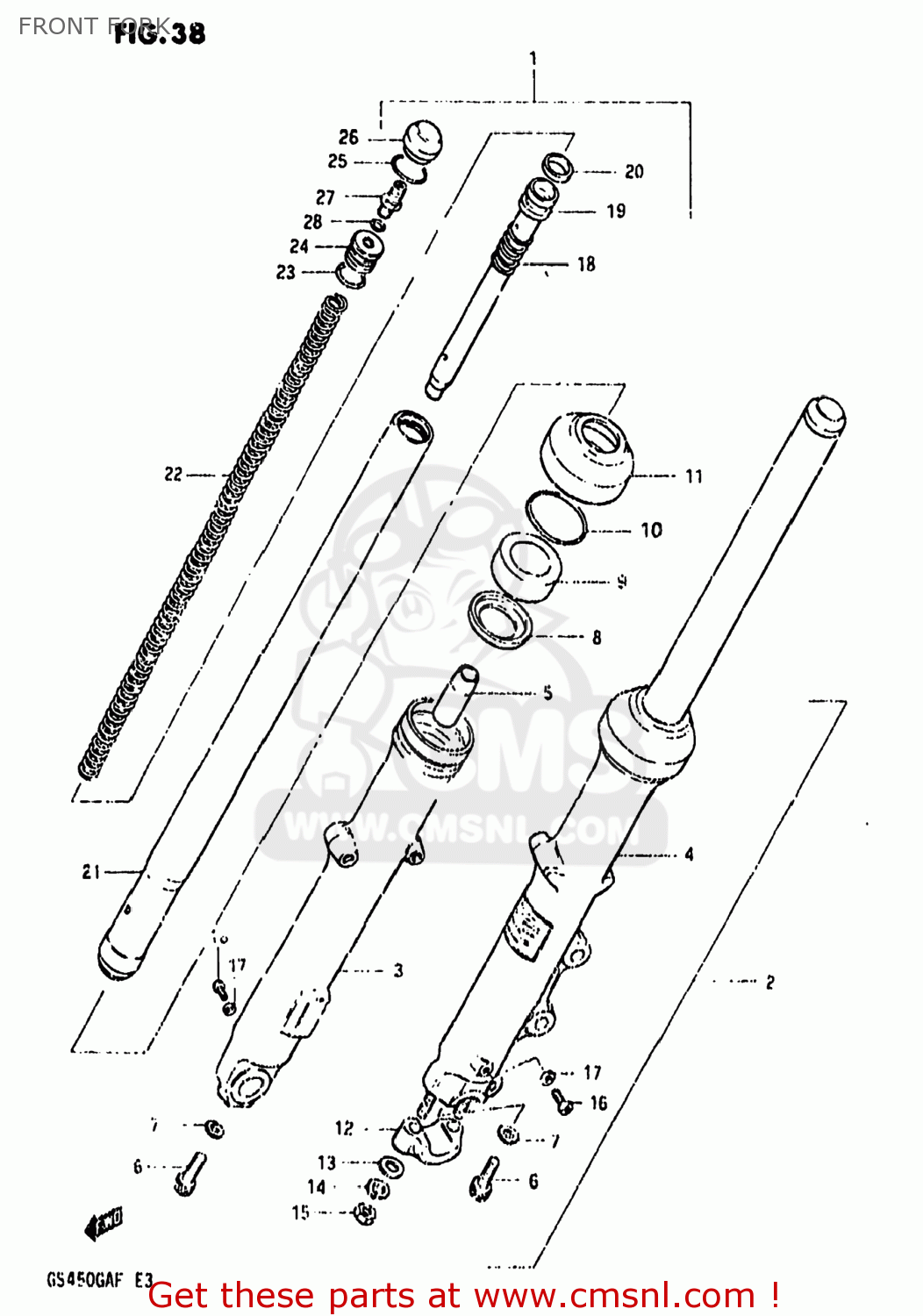

FRONT FORK

ref

part #

description

quantity

1

5110344500
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 208.50

2

5110444500
ref: 2

DAMPER ASSEMBLY,LEFT

€ 134.50

3

5113044500
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 0.00

4

5113044500
ref: 4

TUBE,FORK,OUTER,RIGHT

€ 0.00

5

5119548000
ref: 5

PIECE,OIL LOCK

€ 8.50

6

5114748130
ref: 6

BOLT(8X27)

€ 3.50

7

5114831030
ref: 7
51148-36011

GASKET (NAS)

€ 4.00

8

5116844030
ref: 8

SPACER,OIL SEAL

€ 4.50

9

5115337310
ref: 9
51153-02B00

OIL SEAL,FRONT FORK

€ 15.00

10

5115337310
ref: 10
51153-02B00

OIL SEAL,FRONT FORK

€ 15.00

11

5157137310
ref: 11

DUST SEAL

€ 22.00

12

5113231030
ref: 12

HOLDER,AXLE

€ 31.50

13

0832221088
ref: 13
08322-01087

WASHER

€ 2.00

14

0832121088
ref: 14
08321-01087

LOCK WASHER

€ 2.00

15

0914008008
ref: 15

NUT

€ 1.50

16

0211204068
ref: 16
02112-0406B

SCREW 4X6

€ 2.00

17

5118333030
ref: 17

GASKET (NAS)

€ 6.50

18

5117736030
ref: 18

SPRING,REBOUND

€ 4.50

19

5114644500
ref: 19

CYLINDER,FRONT FORK

€ 15.50

20

5119633130
ref: 20

RING,PISTON

€ 7.50

21

5111044500
ref: 21

TUBE,FORK,INNER

€ 146.00

22

5117144500
ref: 22

SPRING

€ 13.00

23

5118133131
ref: 23

O RING

€ 5.00

24

5117244170
ref: 24

SEAT,SPRING

€ 0.00

25

5116948500
ref: 25

RING,STOPPER

€ 2.00

26

5118944170
ref: 26

CAP,FRONT FORK

€ 4.50

27

5129345440
ref: 27

VALVE,AIR

€ 17.00

28

5111745400
ref: 28
09280-06005

O-RING (D:3.8 ID:19)

€ 2.50

all assemblies
