TURN SIGNAL LAMP
GS450GA 1985 (F) USA (E03)

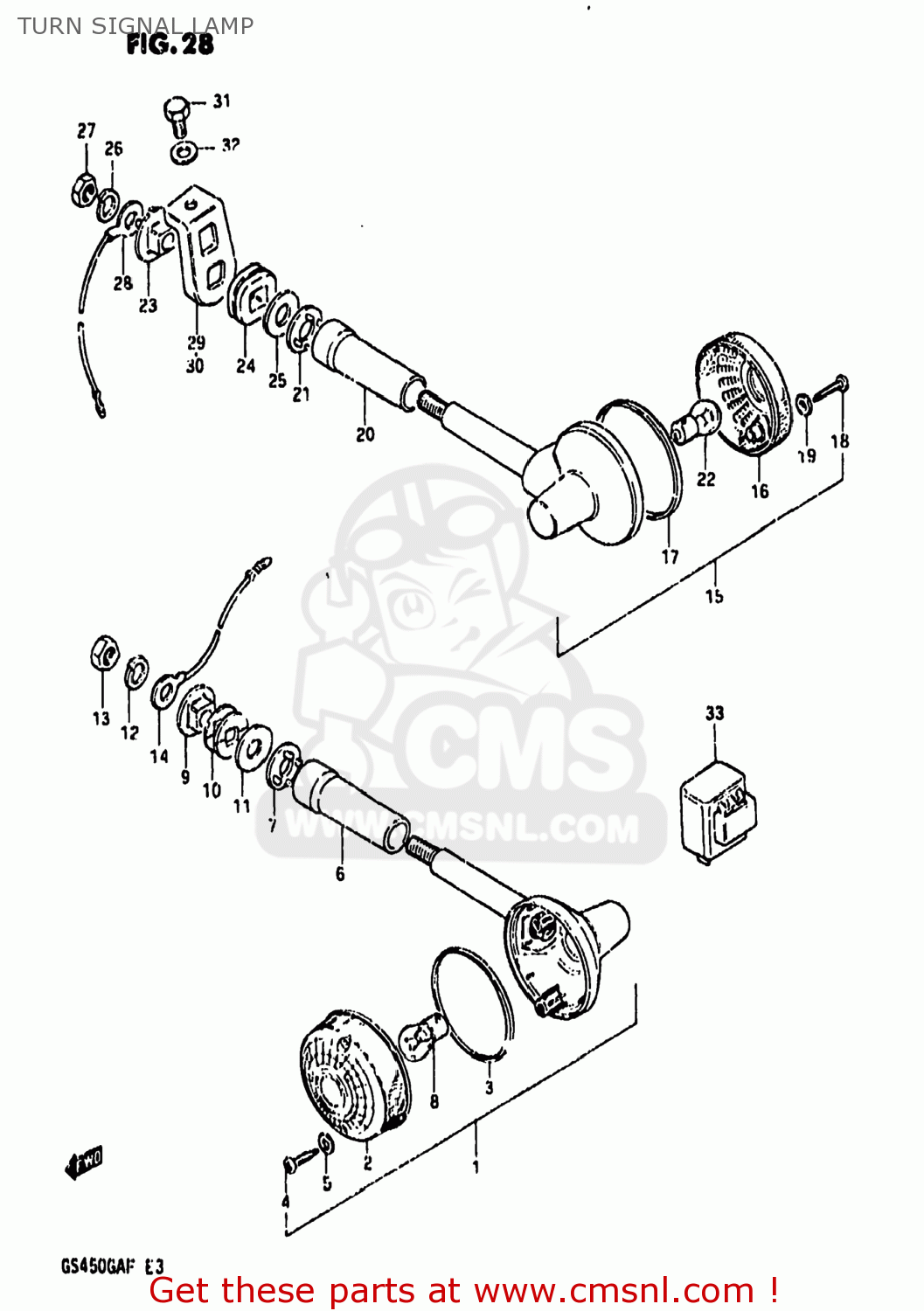

Turn signal lamp diagram GS450GA 1985 (F) USA (E03)
TURN SIGNAL LAMP GS450GA 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560347230999
ref: 1
LAMP ASSY,TURNSIGNAL
€ 122.50
2
3561228620
ref: 2
LENS
€ 10.50
3
3561328620
ref: 3
GASKET (NAS)
€ 7.00
4
0321104208
ref: 4
03211-04207
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
3561747230
ref: 6
COVER,STAY
€ 10.00
7
3566547210
ref: 7
35668-47290
SPACER
€ 3.00
8
0947112006
ref: 8
BULB(12V23W,STANLEY,A4577A)
€ 4.00
9
3569532401
ref: 9
SPACER
€ 4.50
10
3569032200
ref: 10
CUSHION
€ 38.50
11
0916010006
ref: 11
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
12
0832121106
ref: 12
08321-0110A
LOCK WASHER
€ 3.00
13
0831012106
ref: 13
08310-0010A
NUT
€ 2.00
14
3666033000
ref: 14
LEAD WIRE,EARTH
€ 5.00
15
3560347230999
ref: 15
LAMP ASSY,TURNSIGNAL
€ 122.50
16
3561228620
ref: 16
LENS
€ 10.50
17
3561328620
ref: 17
GASKET (NAS)
€ 7.00
18
0321104208
ref: 18
03211-04207
SCREW
€ 1.50
19
3562743010
ref: 19
GASKET (NAS)
€ 2.00
20
3561747230
ref: 20
COVER,STAY
€ 10.00
21
3566547210
ref: 21
35668-47290
SPACER
€ 3.00
22
0947112006
ref: 22
BULB(12V23W,STANLEY,A4577A)
€ 4.00
23
3569532401
ref: 23
SPACER
€ 4.50
24
0932015004
ref: 24
CUSHION
€ 5.00
25
0916010006
ref: 25
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
26
0832121106
ref: 26
08321-0110A
LOCK WASHER
€ 3.00
27
0831012106
ref: 27
08310-0010A
NUT
€ 2.00
28
3686244000
ref: 28
LEAD WIRE,EARTH
€ 4.00
29
3562144501
ref: 29
BRACKET,REAR TURN SIGNAL
€ 4.50
30
3564144501
ref: 30
BRACKET,REAR TURN SIGNAL
€ 4.00
31
0110708128
ref: 31
01500-08127
BOLT 8X12
€ 2.50
32
0832211088
ref: 32
08322-01087
WASHER
€ 2.00
33
3861031310
ref: 33
38610-31X50
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
