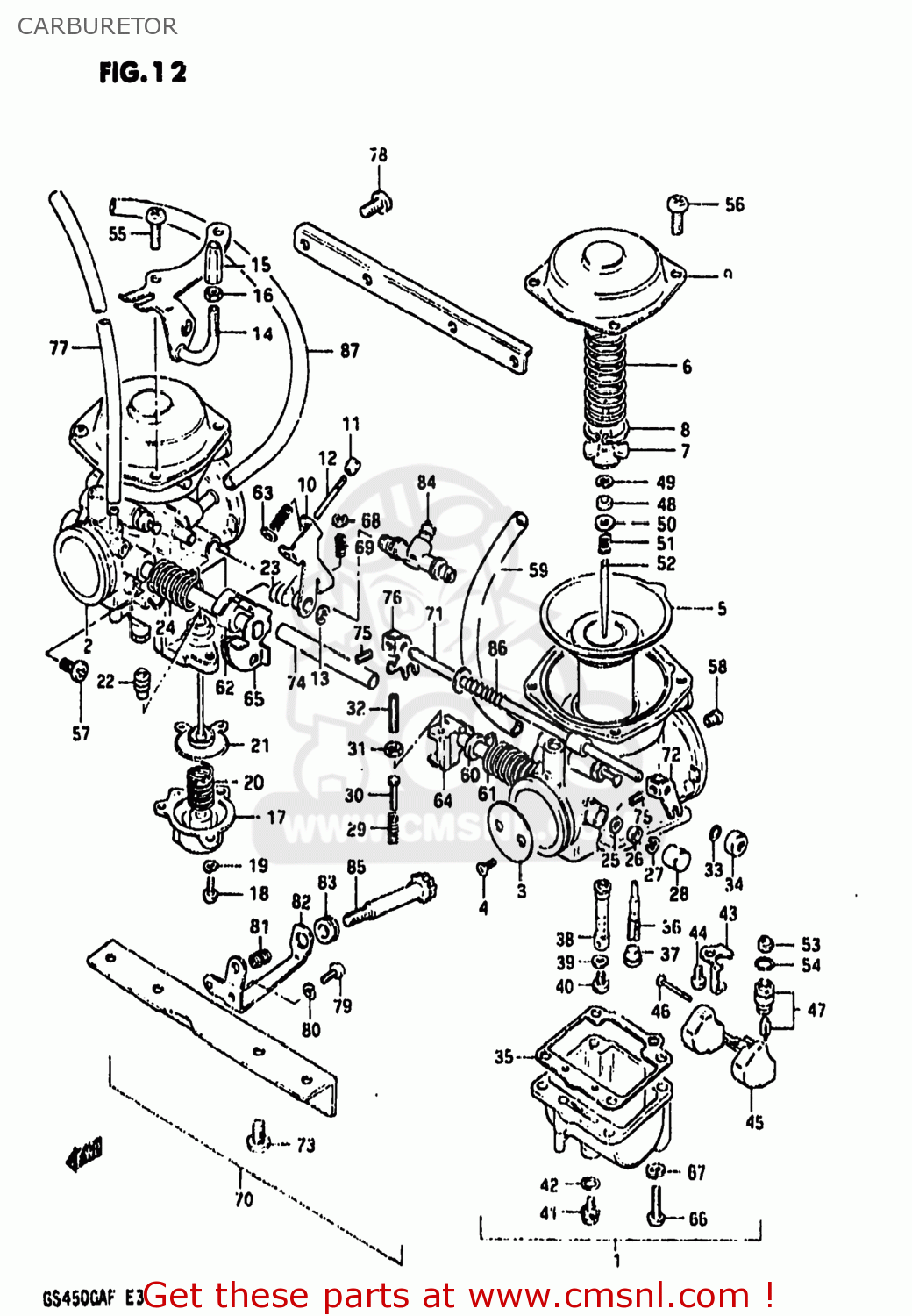

CARBURETOR

ref

part #

description

quantity

1

1320144500
ref: 1

CARBURETOR ASSEMBLY,LEFT (BS

€ 205.00

2

1320244500
ref: 2

CARBURETOR ASSEMBLY

€ 148.50

3

1355144500
ref: 3

VALVE,THROTTLE

€ 26.00

4

1360444080
ref: 4

SCREW

€ 3.50

5

1350044500
ref: 5
13500-49250

DIAPHRAGM ASSEMBLY

€ 128.50

6

1350347070
ref: 6

SPRING

€ 9.50

7

1338944030
ref: 7

HOLDER,GUIDE

€ 10.50

8

1358144030
ref: 8

E RING

€ 6.50

9

1350238300
ref: 9

COVER

€ 22.00

10

1349044500
ref: 10

LEVER,ACCELERTION PUMP

€ 13.00

11

1349744500
ref: 11

O-RING

€ 0.00

12

1349844500
ref: 12

NO PRODUCT DESCRIPTION AVAILABLE

€ 10.00

13

1361744500
ref: 13

E RING,ACCELETION LEVER

€ 2.50

14

1362144500
ref: 14
13627-44460

BRACKET

€ 11.50

15

1357798010
ref: 15

ADJUSTER

€ 0.00

16

1366103010
ref: 16

NUT

€ 3.50

17

1348844500
ref: 17

COVER ASSEMBLY,DIAPHRAGM

€ 15.00

18

0211204106
ref: 18
02112-0410A

SCREWM4X0.7X10

€ 1.00

19

0832121046
ref: 19
08321-0104A

LOCK WASHER

€ 2.00

20

1349444500
ref: 20

SPRING,ACCELERATOR PUMP

€ 2.50

21

1349144500
ref: 21

DIAPHRAGM ASSY,ACCELERATING

€ 31.50

22

1349944500
ref: 22

BOOT, ACCELE PUMP ROD

€ 11.00

23

1357344500
ref: 23

SPRING

€ 3.50

24

1357344210
ref: 24

SPRING

€ 0.00

25

1365151010
ref: 25

SEAL

€ 4.00

26

1355747070
ref: 26

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

27

1361744080
ref: 27

E RING

€ 3.50

28

1357847070
ref: 28

CAP

€ 5.50

29

1326844110
ref: 29

SPRING,THROTTLE SCREW

€ 0.00

30

1356344110
ref: 30

PIN,THROTTLE LEVER

€ 0.00

31

1360747070
ref: 31

NUT

€ 4.00

32

1360547080
ref: 32

SCREW

€ 7.00

33

1327847090
ref: 33

O RING

€ 2.00

34

1368231210
ref: 34

CAP,STARTER VALVE

€ 5.00

35

1325144500
ref: 35

GASKET,FLOAT CHAMBER

€ 8.00

36

0949242010
ref: 36

JET,PILOT(42.5)

€ 8.50

37

1335744080
ref: 37

PLUG,NEEDLE JET

€ 4.50

38

0949400377
ref: 38

JET,NEEDLE

€ 8.50

39

1333244080
ref: 39
13382-03110

WASHER,NEEDLE NOZZLE

€ 2.50

40

0949124016
ref: 40

JET,MAIN(120)

€ 11.50

41

1324744080
ref: 41

PLUG,DRAIN

€ 9.50

42

1324644080
ref: 42

GASKET (NAS)

€ 3.50

43

1337311400
ref: 43

PLATE,NEEDLE VALVE FITING

€ 7.00

44

0211204066
ref: 44
02112-0406B

SCREW

€ 2.00

45

1325044080
ref: 45

FLOAT

€ 31.00

46

1325492311
ref: 46

PIN,FLOAT

€ 2.00

47

1337044500
ref: 47

VALVE ASSY,NEEDLE

€ 40.50

48

1338747010
ref: 48

RING

€ 7.50

49

1339410010
ref: 49

CLIP

€ 4.50

50

1338247010
ref: 50

WASHER,JET NEEDLE

€ 3.00

51

1338847010
ref: 51

SPRING

€ 7.00

52

1338344500
ref: 52

NEEDLE JET

€ 9.00

53

1337665010
ref: 53
13376-19F00

FILTER

€ 6.50

54

1337444080
ref: 54
13374-35C00

O-RING,NEEDLE VALVE

€ 6.00

55

0211205106
ref: 55
02112-0510A

SCREW 5X10

€ 2.00

56

0211205086
ref: 56
02112-0508A

SCREW

€ 2.00

57

1360573000
ref: 57

SCREW

€ 10.50

58

0949327001
ref: 58

JET,AIR(135)

€ 11.00

59

1368311420
ref: 59
44420-44AR0

HOSE

€ 13.00

60

1338744200
ref: 60

SPACER,THROTTLE SHAFT

€ 0.00

61

1357344200
ref: 61

SPRING

€ 0.00

62

1338744210
ref: 62

SPACER,THROTTLE SHAFT

€ 0.00

63

1349644500
ref: 63

GUIDE,HOLDER

€ 1.00

64

1355044210
ref: 64

SHAFT ASSEMBLY

€ 0.00

65

1355044500
ref: 65

SHAFT ASSEMBLY

€ 26.00

66

0211205166
ref: 66
02112-0516A

SCREW

€ 2.00

67

0832121056
ref: 67
08321-0105A

LOCK WASHER

€ 3.00

68

1339401010
ref: 68
13394-10010

E-RING

€ 4.50

69

1326844012
ref: 69

SPRING,THROTTLE SCREW

€ 0.00

70

1321044500
ref: 70

CARBURETOR ASSEMBLY

€ 127.00

71

1341044500
ref: 71

SHAFT,STARTER

€ 0.00

72

1342244080
ref: 72

LEVER

€ 10.00

73

0211206126
ref: 73
02112-0612A

SCREW

€ 1.50

74

1368344500
ref: 74

HOSE

€ 4.00

75

1360547070
ref: 75

SCREW

€ 5.50

76

1342244500
ref: 76

LEVER,STARTER

€ 16.00

77

1368345050
ref: 77
09355-45855-600

HOSE 4.5X8X390

€ 14.00

78

0211205126
ref: 78
02112-0512A

SCREW 5X12

€ 1.50

79

0211205086
ref: 79
02112-0508A

SCREW

€ 2.00

80

0832121056
ref: 80
08321-0105A

LOCK WASHER

€ 3.00

81

1327144220
ref: 81
13268-37420

SPRING,THROTTLE ADJUST

€ 3.50

82

1362144210
ref: 82
13627-44120

BRACKET,THROTTLE ADJUST

€ 0.00

83

1368116600
ref: 83

CAP,RUBBER

€ 7.00

84

1368511400
ref: 84

NIPPLE,CARBURETOR

€ 19.50

85

1326747070
ref: 85

SCREW

€ 21.00

86

1343744500
ref: 86

SPRING,STARTER

€ 0.00

87

1368711400
ref: 87
44420-44AR0

HOSE

€ 13.00
