CRANKSHAFT
GS450GA 1985 (F) USA (E03)

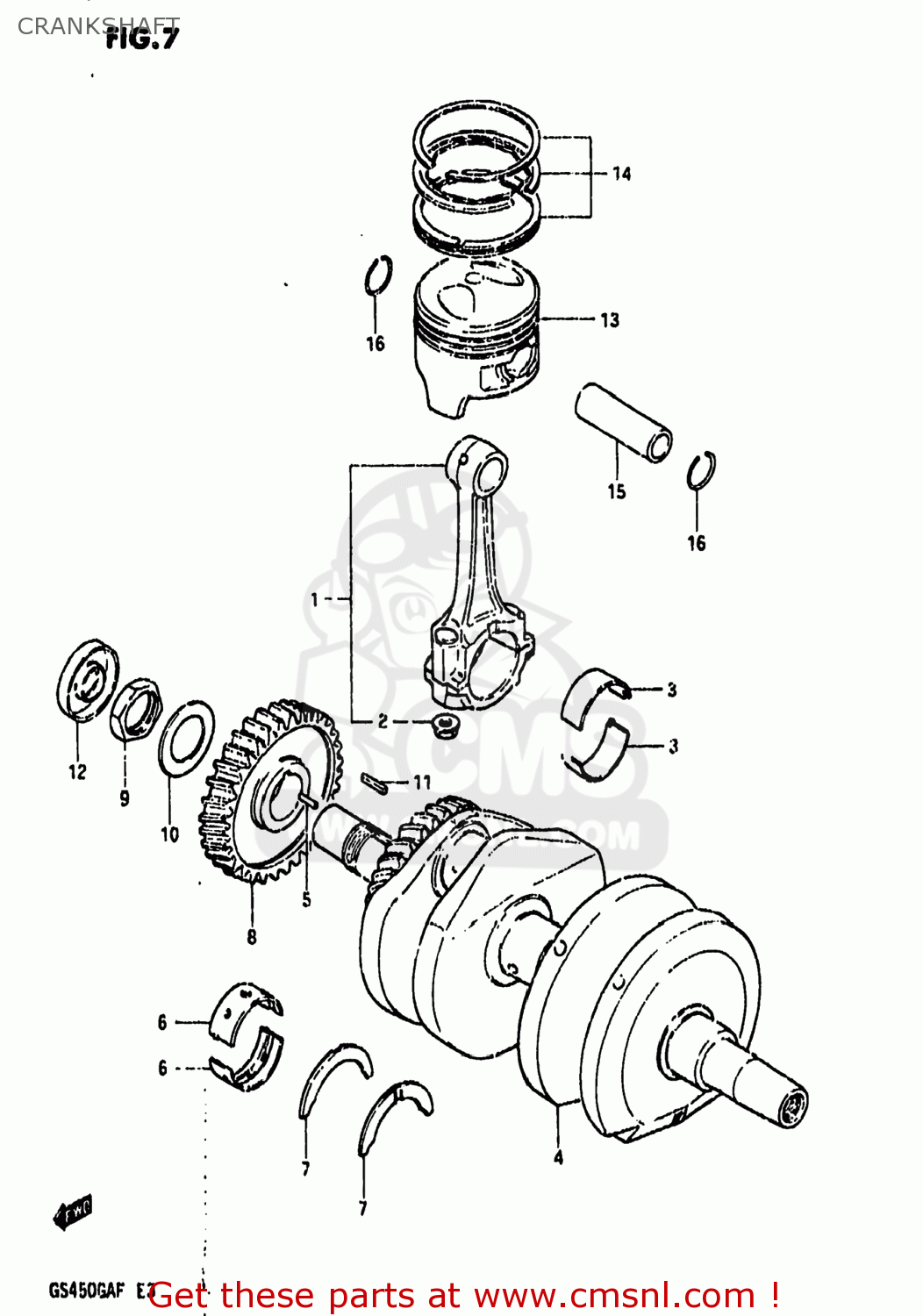

Crankshaft diagram GS450GA 1985 (F) USA (E03)
CRANKSHAFT GS450GA 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1216044100
ref: 1
12160-44101
ROD ASSEMBLY,CONNECTING
€ 135.50
2
0915908033
ref: 2
NUT
€ 2.50
3-1
1216444501010
ref: 3-1
12164-01D01-0A0
BEARING,CRANK PIN
€ 13.50
3-2
1216444501020
ref: 3-2
12164-01D01-0B0
BEARING,CRANK PIN
€ 14.50
3-3
1216444501030
ref: 3-3
12164-01D01-0C0
BEARING,CRANK PIN
€ 14.50
3-4
1216444501040
ref: 3-4
12164-01D01-0D0
BEARING,CRANK PIN
€ 15.00
3-5
1216444100025
ref: 3-5
BEARING,CRANK PIN(US:0.25)
€ 15.50
3-6
1216444100050
ref: 3-6
BEARING,CRANK PIN(US:0.5)
€ 14.50
4
1222044501
ref: 4
12220-44502
CRANKSHAFT
€ 367.50
5
0621103052
ref: 5
04221-03059
PIN 3X5
€ 1.50
6-1
1222944500010
ref: 6-1
METAL CRANKSHAFT
€ 6.00
6-2
1222944500020
ref: 6-2
METAL CRANKSHAFT
€ 6.00
6-3
1222944500030
ref: 6-3
METAL CRANKSHAFT
€ 6.00
6-4
1222944500040
ref: 6-4
METAL CRANKSHAFT
€ 5.50
6-5
1222944100025
ref: 6-5
BEARING,CRANKSHAFT(US:0.25)
€ 21.50
6-6
1222944100050
ref: 6-6
BEARING,CRANKSHAFT(US:0.5)
€ 9.50
7-1
1222844104
ref: 7-1
BEARING,CRANK THRUST(GREEN)
€ 8.00
7-2
1222844105
ref: 7-2
PLATE,CRANK THRUST
€ 6.50
7-3
1222844106
ref: 7-3
BEARING,CRANK THRUST
€ 8.50
7-4
1222844107
ref: 7-4
PLATE,CRANK THRUST
€ 5.50
7-5
1222844108
ref: 7-5
PLATE,CRANK THRUST
€ 7.50
7-6
1222844109
ref: 7-6
PLATE,CRANK THRUST
€ 4.00
7-7
1222844110
ref: 7-7
PLATE,CRANK THRUST
€ 4.00
8
2111144500
ref: 8
GEAR,PRIMARY DRIVE
€ 46.00
9
0914024007
ref: 9
NUT
€ 4.50
10
0916425001
ref: 10
WASHER
€ 4.50
11
0834131059
ref: 11
KEY
€ 3.00
12
0928322015
ref: 12
SEAL,OIL(22X40X8)
€ 10.50
13-1
1211144110
ref: 13-1
12111-44100
PISTON
€ 69.00
13-2
1211144110050
ref: 13-2
12103-44810-050
PISTON
€ 116.50
13-3
1211144110100
ref: 13-3
12103-44810-100
PISTON
€ 86.00
14-1
1214044140
ref: 14-1
12140-44110
RING SET,PISTON
€ 61.50
14-2
1214044140050
ref: 14-2
RING SET,PISTON (OS:0.5)
€ 33.00
14-3
1214044140100
ref: 14-3
12140-44111-100
RING SET,PISTON (OS:1.0)
€ 36.00
15
1215145501
ref: 15
PIN,PISTON (18MM)
€ 14.00
16
0938118002
ref: 16
CIRCLIP
€ 1.50
