PROPELLER SHAFT-FINAL DRIVE GEAR
GS450GA 1985 (F) USA (E03)

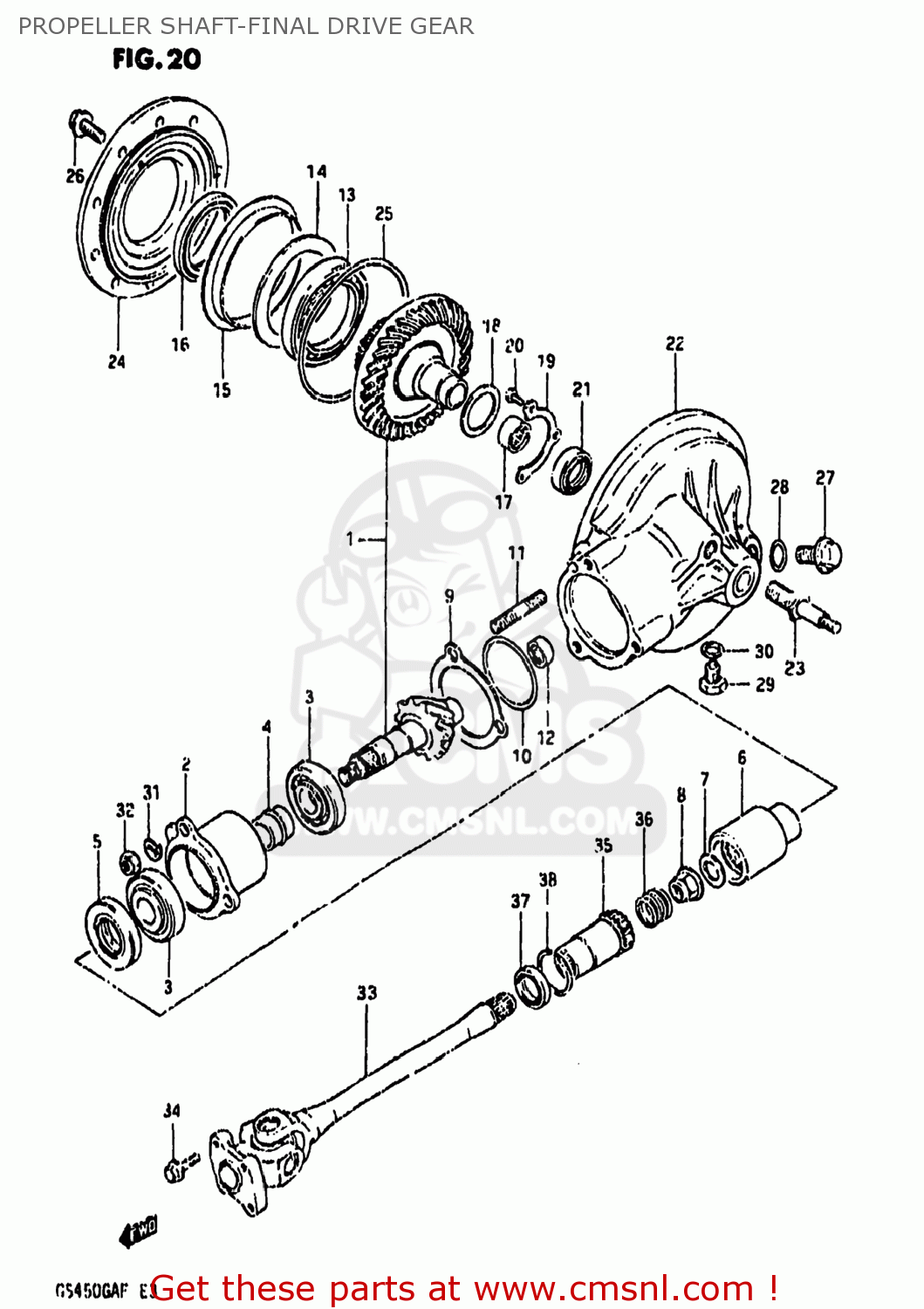

Propeller shaft-final drive gear diagram GS450GA 1985 (F) USA (E03)
PROPELLER SHAFT-FINAL DRIVE GEAR GS450GA 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
2730034821
ref: 0
GEAR/CASE SET FINAL BEVEL
€ 852.00
1
2730034810
ref: 1
GEAR SET,FINAL BEVEL (N
€ 658.50
2
2744144500
ref: 2
HOUSING,DRIVE GEAR
€ 29.00
3
0926525014
ref: 3
09265-25024
BEARING
€ 44.00
4
0918025059
ref: 4
SPACER
€ 9.50
5
0928332017
ref: 5
SEAL,OIL(32X54X7)
€ 16.50
6
2717245100
ref: 6
GEAR,FINAL DRIVE
€ 47.00
7
0916014021
ref: 7
WASHER(14X29X4)
€ 5.00
8
0915914010
ref: 8
NUT
€ 11.00
9
2744545103
ref: 9
SHIM,DRIVE GEAR HOUSING
€ 5.50
9-1
2744545100
ref: 9-1
SHIM,DRIVE GEAR HOUSING
€ 4.00
9-2
2744545102
ref: 9-2
SHIM,DRIVE GEAR HOUSING
€ 4.50
9-3
2744545101
ref: 9-3
SHIM,DRIVE GEAR HOUSING
€ 5.50
10
0928063004
ref: 10
O RING(D:2.4,ID:62.6)
€ 9.50
11
0910810049
ref: 11
STUD
€ 0.00
12
0926316018
ref: 12
BEARING
€ 21.00
13
0926270001
ref: 13
BEARING(70X110X13)
€ 78.50
14-1
2732734200
ref: 14-1
SHIM,DRIVEN GEAR BEARING T0.35
€ 2.50
14-2
2732734210
ref: 14-2
SHIM,DRIVEN GEAR BEARING T.040
€ 3.00
14-3
2732734220
ref: 14-3
SHIM,DRIVEN GEAR BEARING T0.50
€ 3.00
14-4
2732734230
ref: 14-4
SHIM,DRIVEN GEAR BEARING T0.60
€ 3.00
15
2732834200
ref: 15
PLATE,FINAL DRIVEN BRG OIL
€ 4.00
16
0928970001
ref: 16
SEAL,OIL(70X96X16)
€ 41.50
17
0926332007
ref: 17
BEARING(32X46X17.7)
€ 44.00
18-1
2732634201
ref: 18-1
SHIM,FINAL DRIVEN GEAR
€ 2.50
18-2
2732634211
ref: 18-2
SHIM,FINAL DRIVEN GEAR
€ 2.50
18-3
2732634221
ref: 18-3
SHIM,FINAL DRIVEN GEAR
€ 3.50
18-4
2732634231
ref: 18-4
SHIM,FINAL DRIVEN GEAR
€ 2.50
18-5
2732634241
ref: 18-5
SHIM,FINAL DRIVEN GEAR
€ 3.50
19
2732934200
ref: 19
RETAINER,FINAL DRIVEN GEAR BRG
€ 4.50
20
0211206128
ref: 20
02112-06127
SCREW 6X12
€ 2.00
21
0928330028
ref: 21
SEAL,OIL(30X42X7)
€ 7.50
22
2745044500
ref: 22
CASE,FINAL GEAR
€ 213.00
23
0910810025
ref: 23
STUD
€ 16.00
24
2746034201
ref: 24
27460-34202
CASE,FINAL GEAR BEARING
€ 74.50
25
0928000015
ref: 25
O RING(D:3.5,ID:131.6)
€ 9.50
26
0151708258
ref: 26
01550-08257
BOLT
€ 2.50
27
0924718001
ref: 27
PLUG
€ 8.00
28
0928018004
ref: 28
O RING(D:2.4,ID:17.8)
€ 5.50
29
0924714019
ref: 29
09247-14036
PLUG
€ 5.50
30
0916814004
ref: 30
GASKET(14X19.2X2) (NAS)
€ 2.50
31
0832131105
ref: 31
08321-0110A
LOCK WASHER
€ 3.00
32
0915910036
ref: 32
09159-10027
NUT
€ 3.00
33
2710044500
ref: 33
SHAFT ASSEMBLY,PROPELLER
€ 136.00
34
0910308050
ref: 34
BOLT(8X17)
€ 5.50
35
2717145101
ref: 35
COUPLING,PROPELLER SHAFT
€ 38.00
36
0944027005
ref: 36
SPRING
€ 3.50
37
0928330026
ref: 37
SEAL,OIL(30X40.5X5.5)
€ 9.00
38
0938140003
ref: 38
CIRCLIP
€ 5.00
