CYLINDER

GS450L 1980 (T) USA (E03)

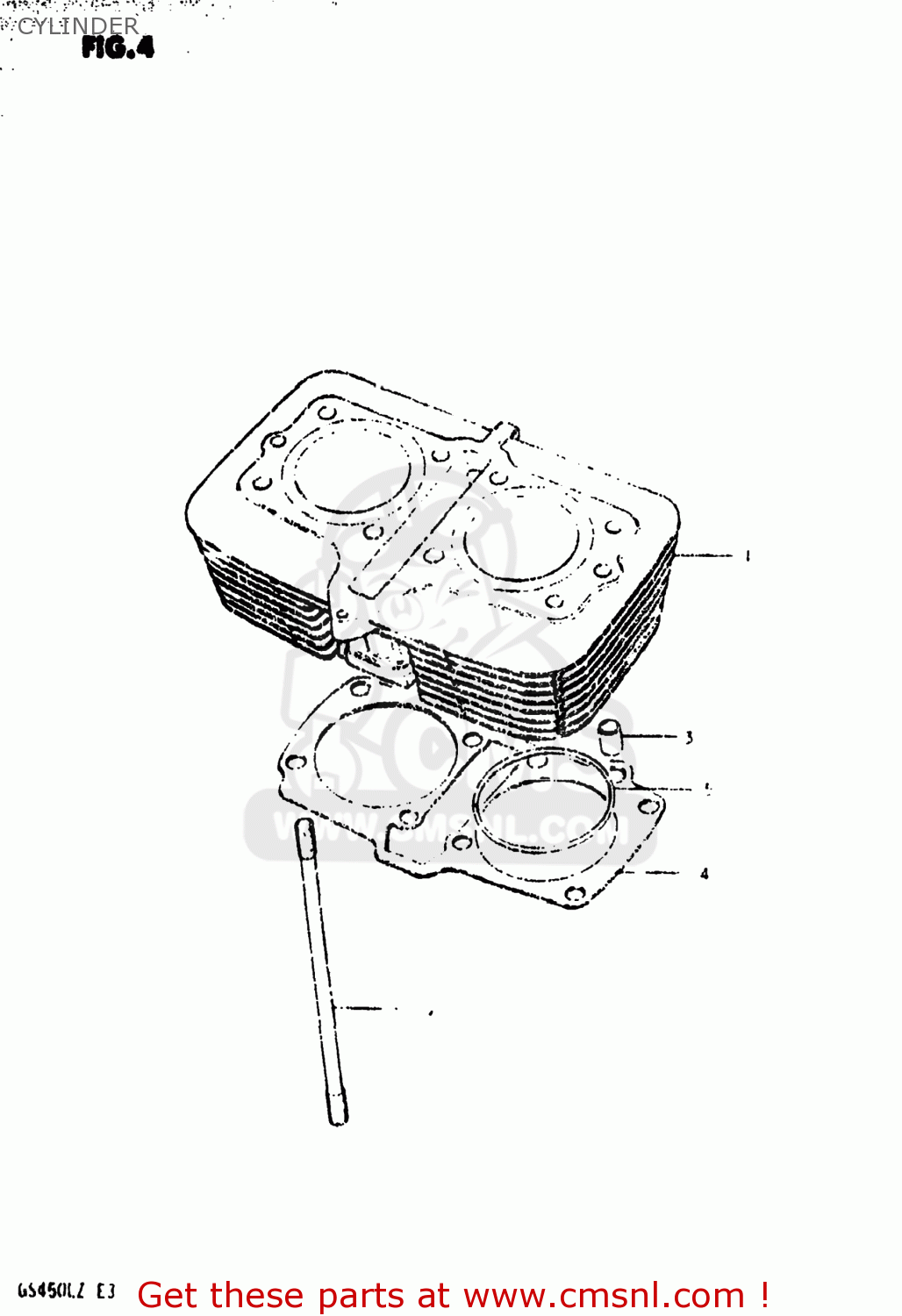

Cylinder diagram GS450L 1980 (T) USA (E03)

CYLINDER GS450L 1980 (T) USA (E03)

CYLINDER GS450L 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121044100
ref: 1
11210-44110

CYLINDER

€ 522.00

2

0910810028
ref: 2
09108-10112

STUD

€ 9.00

3

0421111189
ref: 3

PIN

€ 2.00

4

1124144100
ref: 4
11241-44100-H17

GASKET,CYLINDER (MCA)

€ 12.50

5

0928074002
ref: 5

O RING(D:2,ID:74)

€ 6.00
