Buy Suzuki GS Parts Online
home
LEFT HANDLE SWITCH (MODEL T
GS450L 1980 (T) USA (E03)

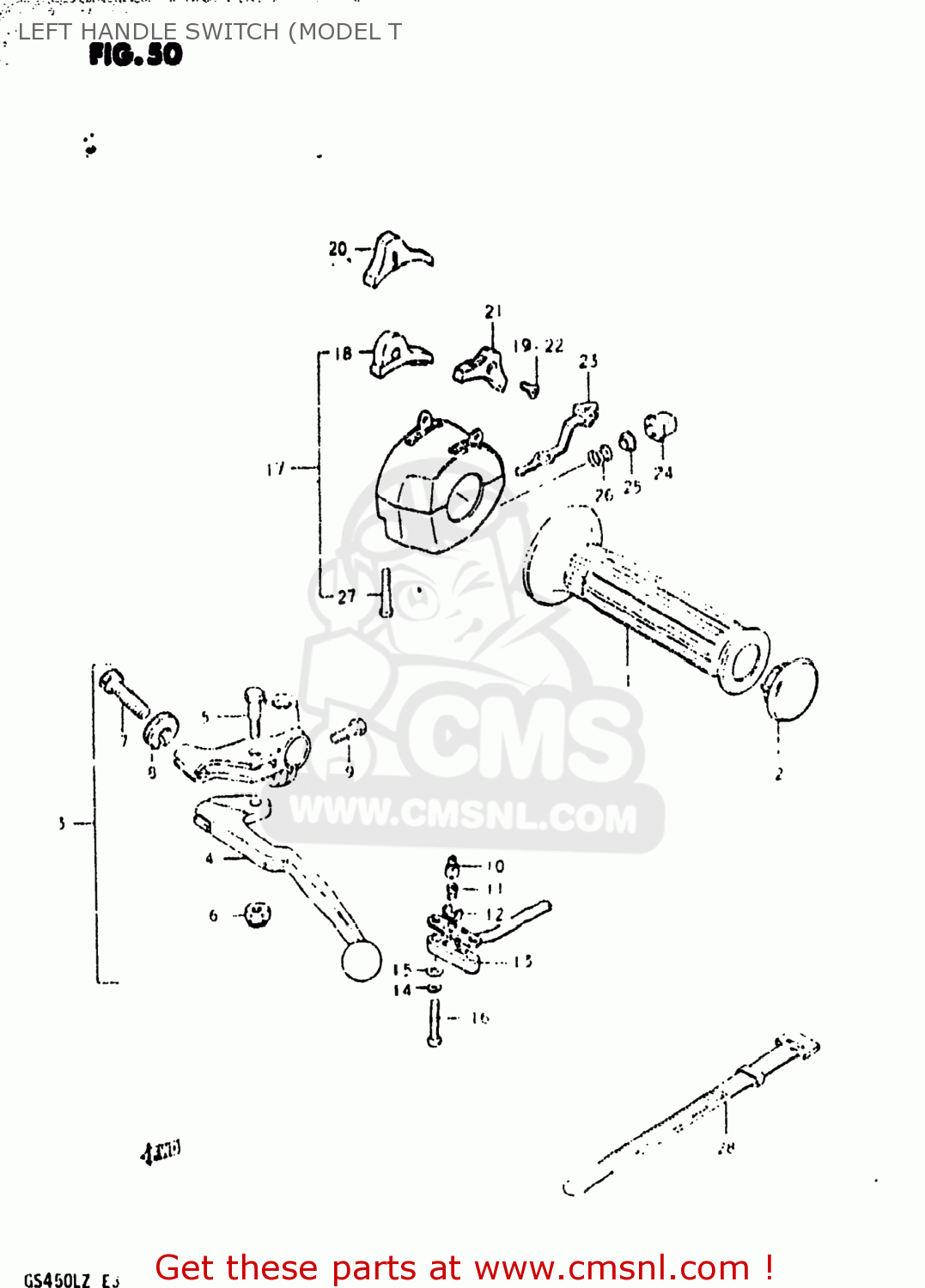

Left handle switch (model t diagram GS450L 1980 (T) USA (E03)
LEFT HANDLE SWITCH (MODEL T GS450L 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5721144100
ref: 1
57211-49500
GRIP,LEFT
€ 9.00
2
5721649100
ref: 2
CAP,GRIP END
€ 3.50
3
5750049111
ref: 3
57500-49301
LEVER ASSEMBLY
€ 53.50
4
5762049111
ref: 4
LEVER,CLUTCH
€ 34.00
5
5743111011
ref: 5
57431-11013
BOLT,LEVER
€ 6.00
6
0831921068
ref: 6
08319-2106A
NUT 6MM
€ 2.00
7
5744111010
ref: 7
ADJUSTER,CABLE
€ 8.00
8
5744211010
ref: 8
NUT,CABLE ADJUSTER
€ 4.00
9
5745149100
ref: 9
BOLT,CLUTCH LEVER HOLDER
€ 3.00
10
5746118600
ref: 10
57465-18601
HOLDER
€ 4.50
11
5746218600
ref: 11
57465-18601
SPRING
€ 4.50
12
5746318600
ref: 12
57465-18601
PLATE
€ 4.50
13
5748133010
ref: 13
COVER,FR BK TERMINAL BASE
€ 19.50
14
0832121038
ref: 14
09162-03001
LOCK WASHER
€ 1.50
15
0832221038
ref: 15
08322-01037
WASHER
€ 2.00
16
0912503105
ref: 16
09125-03105-XC0
SCREW
€ 2.50
17
3740045603
ref: 17
SWITCH ASSY,HANDLE,L
€ 0.00
18
3741445602
ref: 18
KNOB,STOP
€ 2.50
19
0212203068
ref: 19
02122-03067
SCREW
€ 1.00
20
3741145012
ref: 20
KNOB,LIGHTING SWITCH
€ 4.50
21
3742145012
ref: 21
KNOB,DIMMER SWITCH
€ 5.50
22
0212203068
ref: 22
02122-03067
SCREW
€ 1.00
23
3751345011
ref: 23
KNOB,TURNSIGNAL
€ 6.50
24
5737145000
ref: 24
BUTTON,HORN
€ 3.00
25
5737245000
ref: 25
CONTACT
€ 3.00
26
5738245000
ref: 26
SPRING
€ 2.50
27
0211205258
ref: 27
02112-05257
SCREW
€ 2.00
28
0940712402
ref: 28
CLAMP(L:120)
€ 3.00
