REAR SWINGING ARM

GS450L 1980 (T) USA (E03)

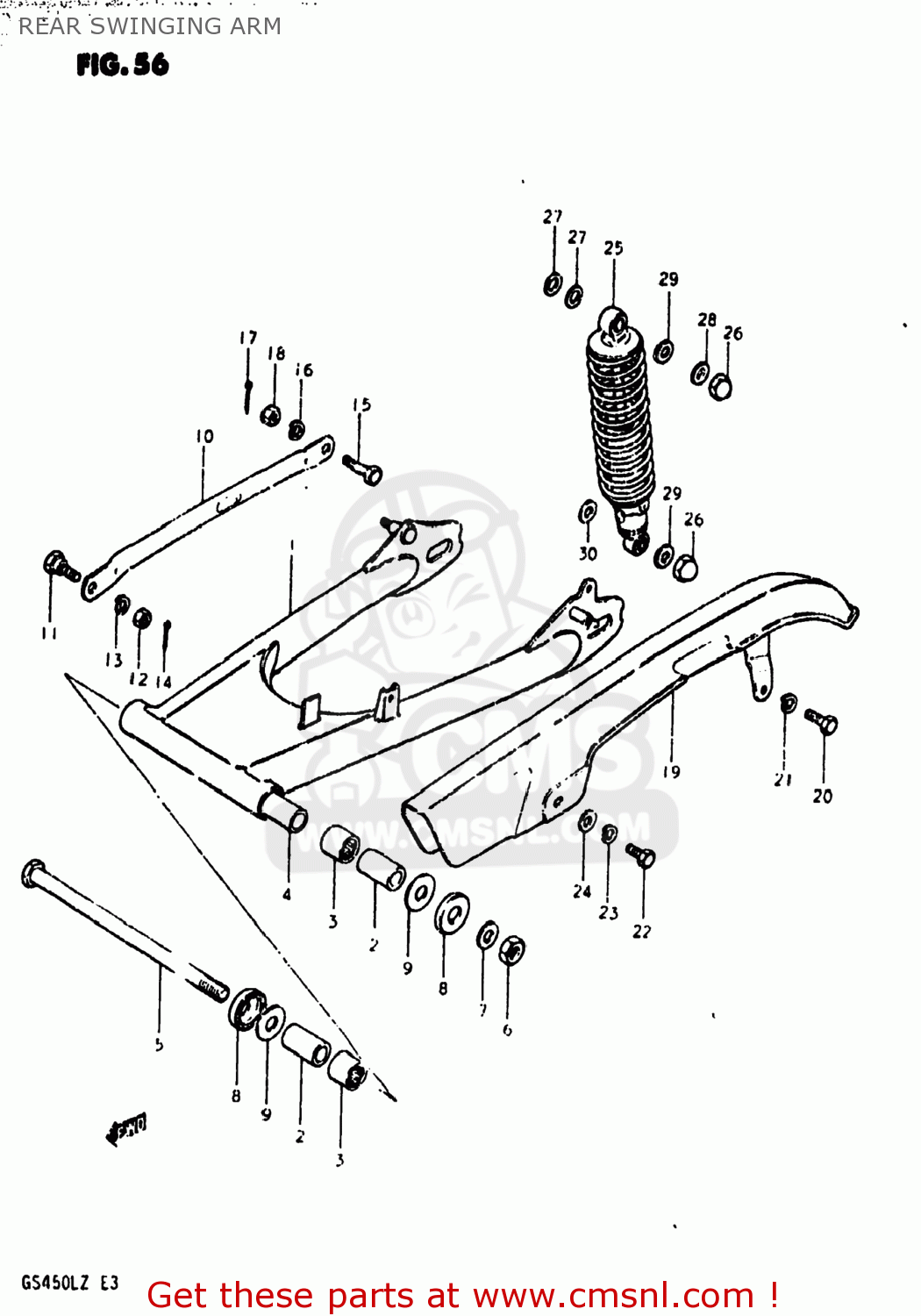

Rear swinging arm diagram GS450L 1980 (T) USA (E03)

REAR SWINGING ARM GS450L 1980 (T) USA (E03)
REAR SWINGING ARM GS450L 1980 (T) USA (E03)
REAR SWINGING ARM GS450L 1980 (T) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
6110044820019
ref: 1-1
61100-44821-019
SWING ARM ASSEMBLY,REAR
€ 180.00
1-2
6110044821019
ref: 1-2
ARM,REAR SWING
6110044821019
€ 180.00
2
6125145001
ref: 2
SPACER,RR SWGARM PIVOT
6125145001
€ 12.50
3
0926322017
ref: 3
BEARING(22X29X30)
0926322017
€ 18.50
4
6128144001
ref: 4
SPACER,SWINGINGARM CTR
6128144001
€ 12.00
5
6121133002
ref: 5
SHAFT,REAR SWING ARM
6121133002
€ 84.00
6
0831921148
ref: 6
08319-2114A
NUT 14MM
0831921148
€ 3.00
7
0832211148
ref: 7
08322-01147
WASHER
0832211148
€ 2.00
8-1
6126245003
ref: 8-1
61262-45002
COVER,REAR SWING ARM DUST
€ 4.50
8-2
6126245002
ref: 8-2
CVR,RR SWGARM DUST SEAL(OD:40)
6126245002
€ 4.50
9
0916014020
ref: 9
WASHER(14.2X34X1)
0916014020
€ 2.50
10
6431144200019
ref: 10
LINK,REAR TORQUE
€ 13.00
11
0911110010
ref: 11
BOLT(10X24.5)
0911110010
€ 5.50
12
0831022108
ref: 12
08310-00107
NUT
0831022108
€ 2.50
13
0832121108
ref: 13
08321-01107
LOCK WASHER
0832121108
€ 2.00
14
0411120208
ref: 14
04111-2020A
PIN 20X20
0411120208
€ 1.50
15
0910110003
ref: 15
BOLT(10X31)
0910110003
€ 4.00
16
0832121108
ref: 16
08321-01107
LOCK WASHER
0832121108
€ 2.00
17
0411120208
ref: 17
04111-2020A
PIN 20X20
0411120208
€ 1.50
18
0831011108
ref: 18
08310-00107
NUT
0831011108
€ 2.50
19-1
6131047201
ref: 19-1
61310-47203
CASE,CHAIN
€ 70.50
19-2
6131047202
ref: 19-2
61310-47203
CASE,CHAIN
€ 70.50
19-3
6131047203
ref: 19-3
CASE,CHAIN
6131047203
€ 70.50
20
0110706168
ref: 20
01500-06167
BOLT, UPPER
€ 3.00
21
0832121068
ref: 21
08321-01067
LOCK WASHER
0832121068
€ 2.50
22
0110706108
ref: 22
01500-06107
BOLT
€ 2.00
23
0832121068
ref: 23
08321-01067
LOCK WASHER
0832121068
€ 2.50
24
0832221068
ref: 24
08322-01067
WASHER
0832221068
€ 2.00
25-1
6210044131
ref: 25-1
62100-44411
ABSORBER ASSEMBLY,REAR SHOCK
€ 197.50
25-2
6210044132
ref: 25-2
62100-44411
ABSORBER ASSEMBLY,REAR SHOCK
€ 197.50
26
0831311108
ref: 26
08313-10107
NUT, LOWER LH
0831311108
€ 2.50
27
0832211128
ref: 27
08322-01127
WASHER
0832211128
€ 2.00
28
0916010001
ref: 28
09160-10093
WASHER
0916010001
€ 2.00
29
0916010033
ref: 29
09160-10128-XC0
WASHER(10.5X24X3.2)
0916010033
€ 2.00
30
0916012004
ref: 30
09160-12088
WASHER (12.5X24X1.6)
0916012004
€ 2.00
