TRANSMISSION
GS450L 1980 (T) USA (E03)

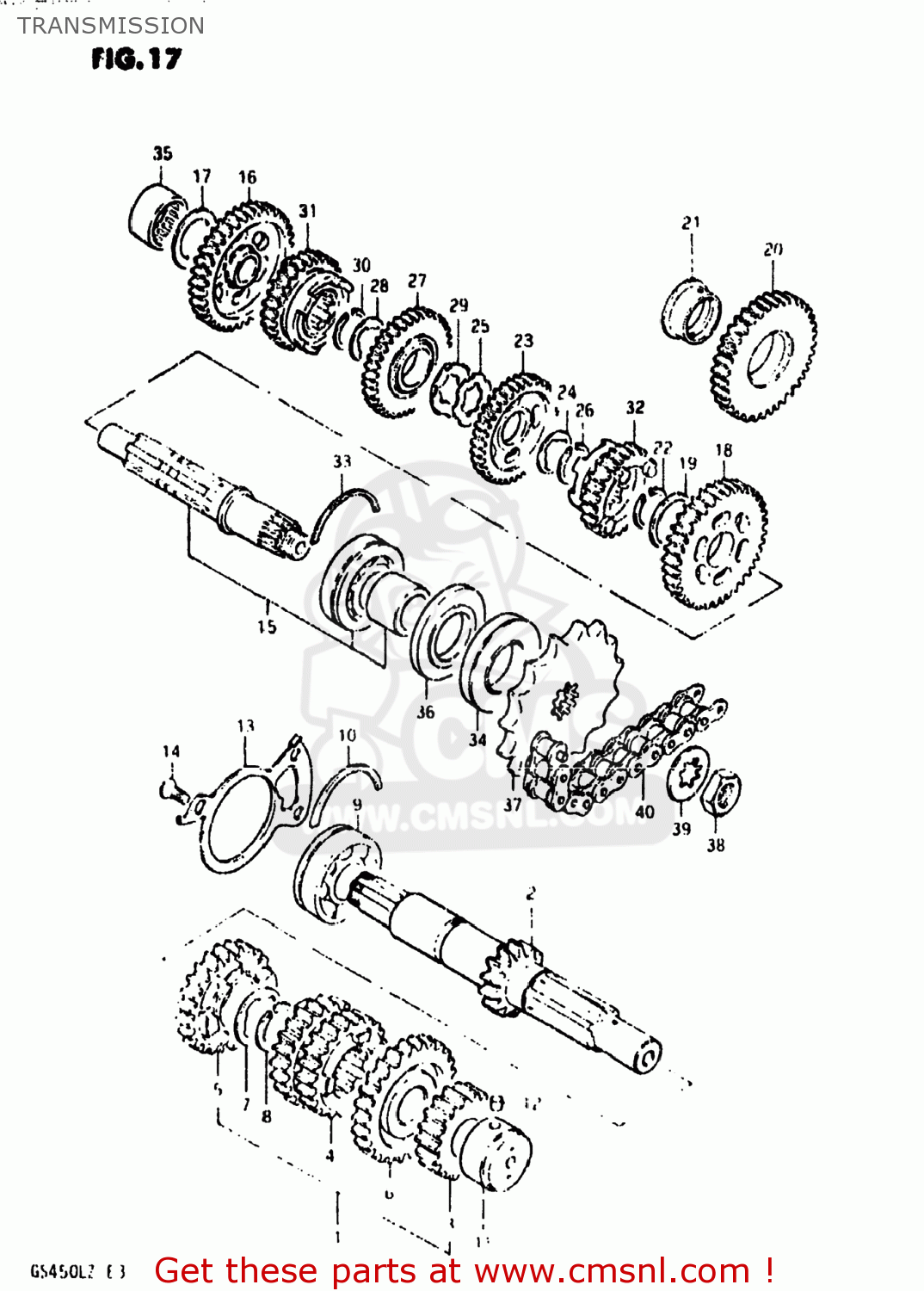

Transmission diagram GS450L 1980 (T) USA (E03)
TRANSMISSION GS450L 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412044100
ref: 1
SHAFT,COUNTER
€ 178.00
2
2412144100
ref: 2
SHAFT,COUNTER
€ 61.50
3
2422144001
ref: 3
GEAR,2ND DRIVE(NT:18)
€ 83.00
4
2423144001
ref: 4
GEAR,THIRD DRIVE
€ 69.50
5
2425044001
ref: 5
GEAR,FIFTH DRIVE
€ 66.00
6
2426044000
ref: 6
GEAR,SIXTH DRIVE
€ 58.50
7
0821125341
ref: 7
09181-25167
WASHER
€ 3.50
8
0938025010
ref: 8
CIRCLIP
€ 3.00
9
0926225051
ref: 9
09262-25105
BEARING(25X62X17)
€ 59.50
10
0939062006
ref: 10
09390-62012
C-RING
€ 5.00
11
0926320028
ref: 11
09263-20027
ROLLER BEARING (20X34X1
€ 34.00
12
0422107129
ref: 12
PIN
€ 1.50
13
2474144100
ref: 13
24741-44102
PLATE,COUNTERSHAFT BEARING
€ 10.50
14
0212206168
ref: 14
02122-06167
SCREW
€ 2.00
15
2410044810
ref: 15
24100-44811
SHAFT,DRIVE
€ 125.00
16
2431044000
ref: 16
24310-44001
GEAR,FIRST DRIVEN
€ 98.50
17
0821120341
ref: 17
WASHER
€ 2.00
18
2432044002
ref: 18
GEAR,SECOND DRIVEN
€ 79.50
19
0821125321
ref: 19
WASHER
€ 3.00
20
2432144004
ref: 20
24321-20F01
GEAR,SECOND DRIVEN
€ 98.50
21
0930125001
ref: 21
24322-19F00
BUSHING
€ 12.50
22
0938025010
ref: 22
CIRCLIP
€ 3.00
23
2433144002
ref: 23
24331-44003
GEAR,THIRD DRIVEN
€ 89.50
24
0916725012
ref: 24
WASHER,LOCK
€ 3.50
25
0916725013
ref: 25
WASHER,LOCK
€ 2.50
26
0938025010
ref: 26
CIRCLIP
€ 3.00
27
2434144002
ref: 27
24341-44003
GEAR,FOURTH DRIVEN
€ 82.50
28
0916725012
ref: 28
WASHER,LOCK
€ 3.50
29
0916925001
ref: 29
WASHER
€ 2.00
30
0938025010
ref: 30
CIRCLIP
€ 3.00
31
2435144001
ref: 31
GEAR,5TH DRIVEN(NT:25)
€ 108.00
32-1
2436144001
ref: 32-1
24361-44010
GEAR,SIXTH DRIVEN
€ 121.00
32-2
2436144002
ref: 32-2
24361-44010
GEAR,SIXTH DRIVEN
€ 121.00
33
0939062006
ref: 33
09390-62012
C-RING
€ 5.00
34-1
0928332019
ref: 34-1
SEAL,OIL(32X64X8)
€ 13.50
34-2
0928332015
ref: 34-2
SEAL,OIL(32X62X7)
€ 15.50
35
0926320028
ref: 35
09263-20027
ROLLER BEARING (20X34X1
€ 34.00
36
0928232002
ref: 36
SEAL,OIL(32X62X5.5)
€ 11.50
37
2751144000
ref: 37
SPROCKET,ENGINE(NT:16)
€ 49.00
38
0914020009
ref: 38
NUT
€ 9.00
39
0916725011
ref: 39
09167-25019
WASHER
€ 2.50
40
2760044130
ref: 40
CHAIN ASSEMBLY,DRIVE
€ 0.00
up
all assemblies
