MASTER CYLINDER (MODEL Z)

GS450L 1980 (T) USA (E03)

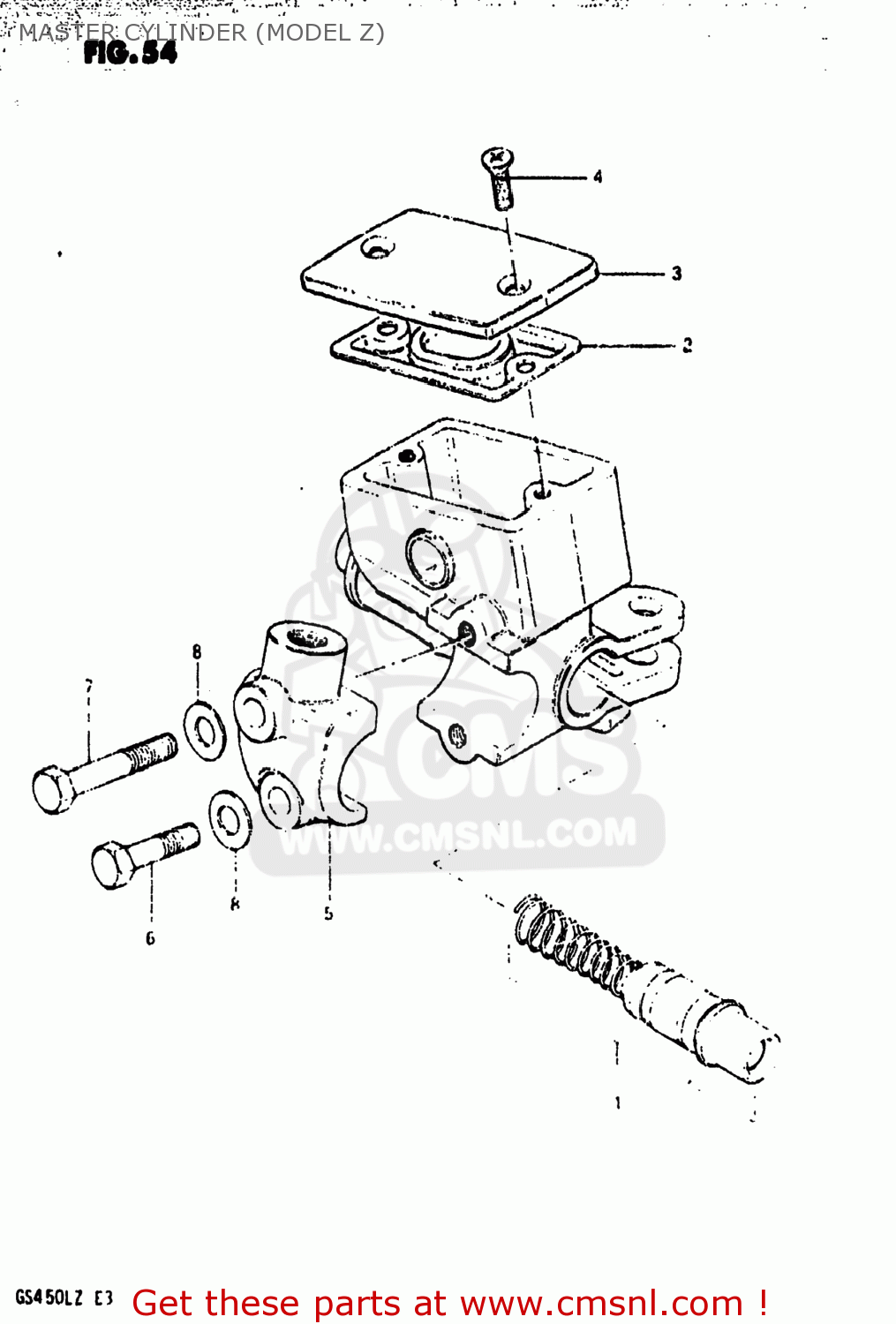

Master cylinder (model z) diagram GS450L 1980 (T) USA (E03)

MASTER CYLINDER (MODEL Z) GS450L 1980 (T) USA (E03)

MASTER CYLINDER (MODEL Z) GS450L 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

0

5960044230
ref: 0
59600-44X50

CYLINDER ASSEMBLY,MASTER

€ 206.00

1

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

2

6966749300
ref: 2
59667-49460

6966749300

3

6966949330
ref: 3
59669-41C00

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967144300
ref: 5

HOLDER

€ 14.50

6

0110706258
ref: 6
01500-06257

BOLT

€ 2.00

7

0110706408
ref: 7
01500-0640B

BOLT 6X40

€ 2.00

8

0832121068
ref: 8
08321-01067

LOCK WASHER

€ 2.50
