FRONT FORK (MODEL T
GS450L 1980 (T) USA (E03)

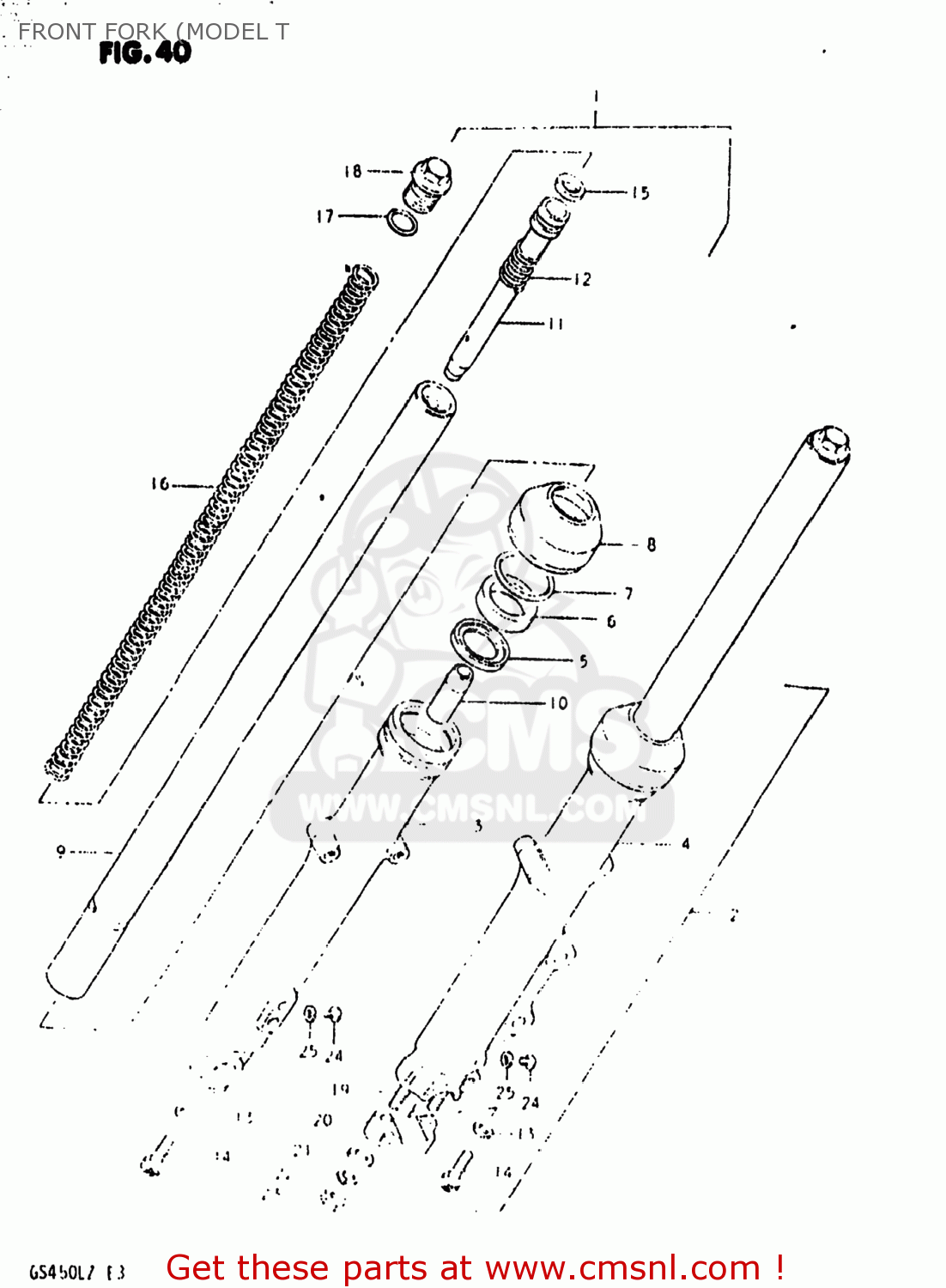

Front fork (model t diagram GS450L 1980 (T) USA (E03)
FRONT FORK (MODEL T GS450L 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110344210
ref: 1
51103-44211
DAMPER ASSEMBLY,RIGHT
€ 307.50
2
5110444210
ref: 2
DAMPER ASSEMBLY,LEFT
€ 0.00
3
5113044033
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 129.00
4
5114044031
ref: 4
TUBE,FORK,LEFT,OUTER
€ 107.50
5
5116844030
ref: 5
SPACER,OIL SEAL
€ 4.50
6
5115344031
ref: 6
51153-02B00
OIL SEAL,FRONT FORK
€ 15.00
7
5115633130
ref: 7
51156-02B00
CIRCLIP,FORK OIL SEAL
€ 4.50
8
5157133131
ref: 8
51571-37310
BOOT
€ 22.00
9
5111044200
ref: 9
TUBE,FORK,INNER
€ 185.50
10
5119548000
ref: 10
PIECE,OIL LOCK
€ 8.50
11
5114644731
ref: 11
51146-38300
CYLINDER,FRONT FORK
€ 42.00
12
5117736030
ref: 12
SPRING,REBOUND
€ 4.50
13
5114831030
ref: 13
51148-36011
GASKET (NAS)
€ 4.00
14
5114748130
ref: 14
BOLT(8X27)
€ 3.50
15
5119633130
ref: 15
RING,PISTON
€ 7.50
16
5117144210
ref: 16
SPRING
€ 0.00
17
5118131030
ref: 17
O RING
€ 3.50
18
5135133130
ref: 18
BOLT
€ 30.50
19
0142108258
ref: 19
01421-0825A
STUD 8X25
€ 2.50
20
5113231030
ref: 20
HOLDER,AXLE
€ 31.50
21
0832221088
ref: 21
08322-01087
WASHER
€ 2.00
22
0832121088
ref: 22
08321-01087
LOCK WASHER
€ 2.00
23
0914008005
ref: 23
09140-08017
NUT (8MM)
€ 1.50
24
0211204068
ref: 24
02112-0406B
SCREW 4X6
€ 2.00
25
5118333030
ref: 25
GASKET (NAS)
€ 6.50
