FRONT WHEEL (MODEL T
GS450L 1980 (T) USA (E03)

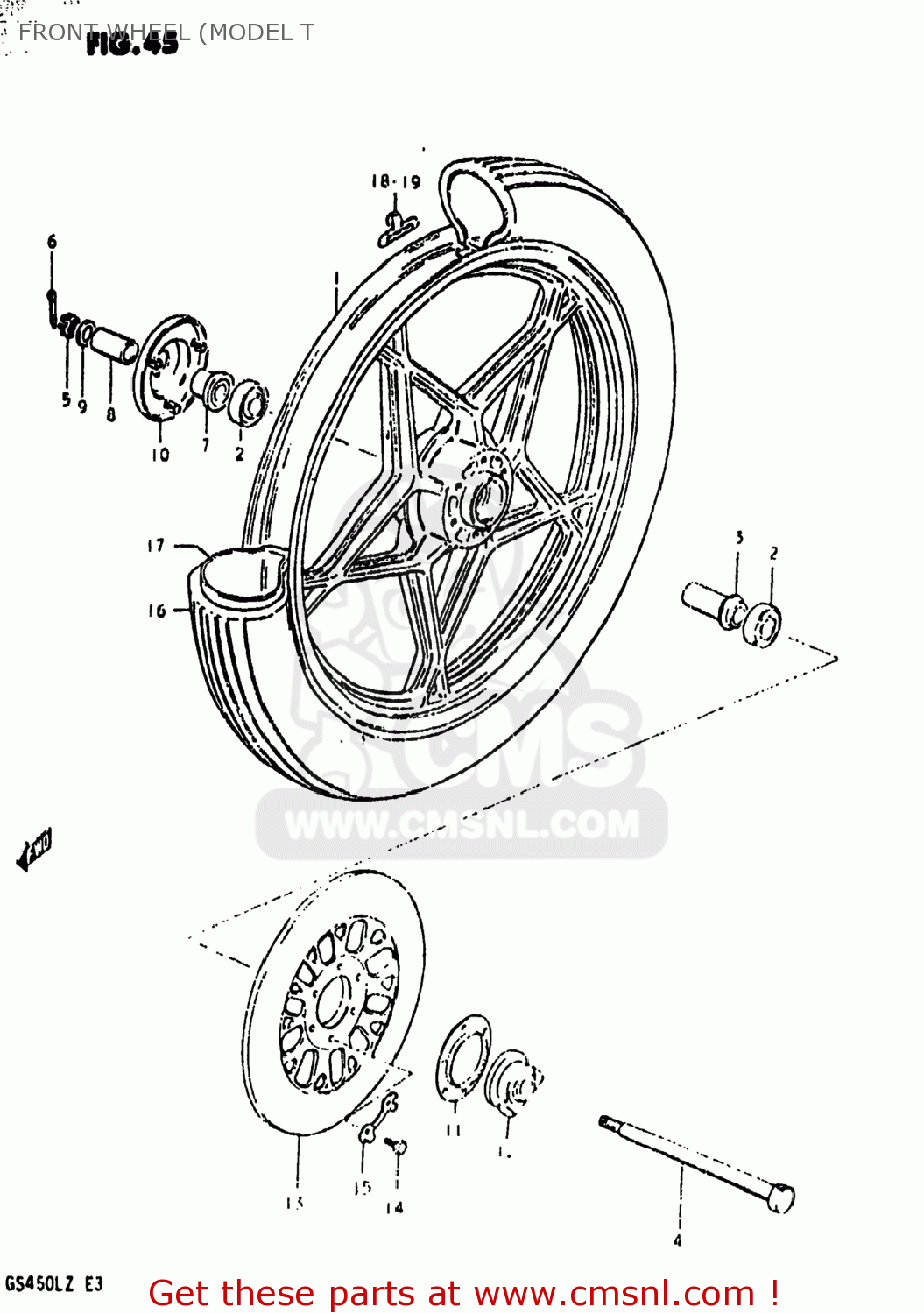

Front wheel (model t diagram GS450L 1980 (T) USA (E03)
FRONT WHEEL (MODEL T GS450L 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
541114760412U
ref: 1-1
54111-49350-291
WHEEL (1.9X1.85)
€ 491.00
1-2
5411147604291
ref: 1-2
54111-49301-291
FR CAST WHEEL 1
€ 491.00
2
0812363027
ref: 2
BEARING
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
€ 13.00
4
5471133002
ref: 4
54711-3300V
AXLE,FRONT
€ 41.00
5
0831431128
ref: 5
08314-3112A
NUT 12MM
€ 2.00
6
0411130308
ref: 6
04111-3030A
COTTER PIN
€ 1.50
7
5474018410
ref: 7
SPACER,FR HUB BEARING,R
€ 17.00
8
0918015034
ref: 8
SPACER(15X22X30)
€ 7.00
9
0832221128
ref: 9
08322-01127
WASHER
€ 2.00
10
5487145000
ref: 10
COVER,FR HUB,R
€ 6.00
11
5487145010
ref: 11
DUST SEAL,SPEEDOMETER GEAR BOX
€ 21.00
12
5460034001
ref: 12
54600-08C00
BOX ASSEMBLY,SPEEDOMETER GEAR
€ 96.50
13
5921145200
ref: 13
DISC,FR BRAKE
€ 144.00
14
0910008140
ref: 14
BOLT(8X25)
€ 2.00
15
0916908016
ref: 15
WASHER
€ 3.50
16-1
5510044210
ref: 16-1
TIRE,FRONT
€ 40.50
16-2
5510044230
ref: 16-2
TIRE,FRONT
€ 0.00
17
5520044220
ref: 17
TUBE,INNER
€ 0.00
18
5541147001
ref: 18
BALANCER,WHEEL
€ 4.00
19
5541247001
ref: 19
BALANCER,WHEEL
€ 3.50
