CAM SHAFT - VALVE
GS450L 1988 (J) USA (E03)

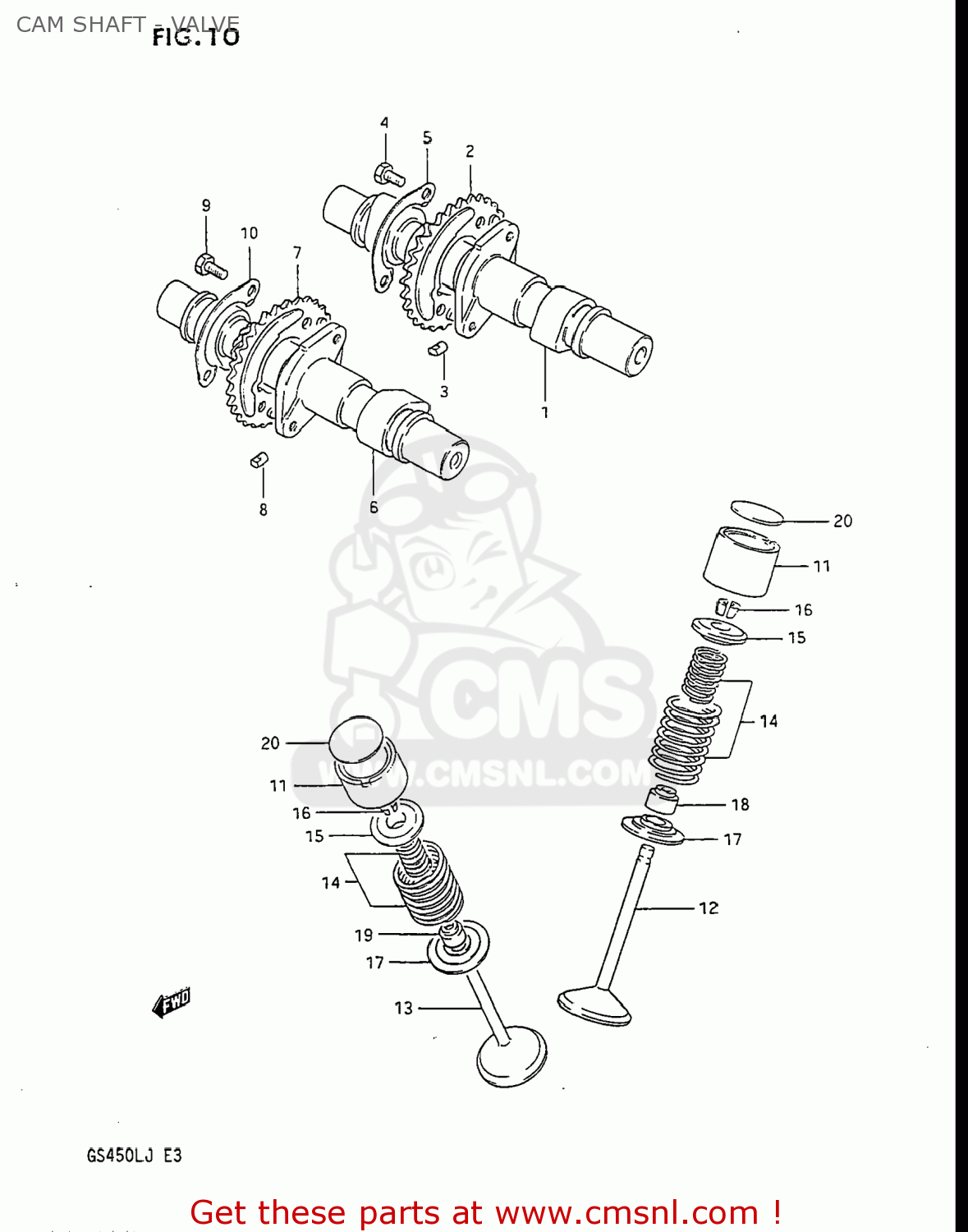

Cam shaft - valve diagram GS450L 1988 (J) USA (E03)
CAM SHAFT - VALVE GS450L 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271144101
ref: 1
CAMSHAFT,INTAKE
€ 128.00
2
1274045041
ref: 2
12740-45042
SPROCKET,CAMSHAFT
€ 67.00
3
1274844000
ref: 3
PIN,SPROCKET
€ 4.50
4
0911106027
ref: 4
BOLT(6X12.5)
€ 1.50
5
1274744000
ref: 5
12747-44001
WASHER,CAM CHAIN SPROCKET
€ 2.00
6-1
1272144101
ref: 6-1
CAMSHAFT,EXHAUST
€ 193.00
6-2
1272144900
ref: 6-2
12721-44101
CAMSHAFT,EXHAUST
€ 193.00
7
1275045041
ref: 7
SPROCKET,EXHAUST CAM(NT:30)
€ 65.00
8
1274844000
ref: 8
PIN,SPROCKET
€ 4.50
9
0911106027
ref: 9
BOLT(6X12.5)
€ 1.50
10
1274744000
ref: 10
12747-44001
WASHER,CAM CHAIN SPROCKET
€ 2.00
11
1289145001
ref: 11
TAPPET,INTAKE
€ 45.00
12
1291145030
ref: 12
VALVE,INTAKE
€ 28.00
13
1291245021
ref: 13
VALVE,EXHAUST
€ 51.50
14
1292044110
ref: 14
SPRING SET,VALVE
€ 13.50
15
1293145000
ref: 15
12931-45001
RETAINER,VALVE SPRING
€ 6.00
16
1293245010
ref: 16
COTTER VALVE
€ 2.50
17
1293345001
ref: 17
SEAT,VALVE SPRING
€ 5.50
18
0928907002
ref: 18
SEAL,OIL(7X14.4X9)
€ 3.00
19
0928907003
ref: 19
SEAL,OIL(7X14.5X10.5)
€ 3.00
20-1
1289245000215
ref: 20-1
SHIM,TAPPET(T:2.15)
€ 17.00
20-10
1289245000260
ref: 20-10
SHIM,TAPPET(T:2.60)
€ 16.00
20-11
1289245000265
ref: 20-11
SHIM,TAPPET(T:2.65)
€ 17.00
20-12
1289245000270
ref: 20-12
SHIM,TAPPET(T:2.70)
€ 17.00
20-13
1289245000275
ref: 20-13
SHIM,TAPPET(T:2.75)
€ 17.00
20-14
1289245000280
ref: 20-14
SHIM,TAPPET(T:2.80)
€ 16.50
20-15
1289245000285
ref: 20-15
SHIM,TAPPET(T:2.85)
€ 17.00
20-16
1289245000290
ref: 20-16
SHIM,TAPPET(T:2.90)
€ 17.00
20-17
1289245000295
ref: 20-17
SHIM,TAPPET(T:2.95)
€ 17.00
20-18
1289245000300
ref: 20-18
SHIM,TAPPET(T:3.00)
€ 17.00
20-19
1289245000305
ref: 20-19
SHIM,TAPPET(T:3.05)
€ 16.50
20-2
1289245000220
ref: 20-2
SHIM,TAPPET(T:2.20)
€ 16.50
20-20
1289245000310
ref: 20-20
SHIM,TAPPET(T:3.10)
€ 17.00
20-3
1289245000225
ref: 20-3
SHIM,TAPPET(T:2.25)
€ 17.00
20-4
1289245000230
ref: 20-4
SHIM,TAPPET(T:2.30)
€ 16.00
20-5
1289245000235
ref: 20-5
SHIM,TAPPET(T:2.35)
€ 16.50
20-6
1289245000240
ref: 20-6
SHIM,TAPPET(T:2.40)
€ 17.00
20-7
1289245000245
ref: 20-7
SHIM,TAPPET(T:2.45)
€ 17.00
20-8
1289245000250
ref: 20-8
SHIM,TAPPET(T:2.50)
€ 16.00
20-9
1289245000255
ref: 20-9
SHIM,TAPPET(T:2.55)
€ 16.50
21
1280045810
ref: 21
12800-45811
SHIM SET,TAPPET
€ 1,227.00
21
1280045810
ref: 21
12800-45811
SHIM SET,TAPPET
€ 1,227.00
22
9900069480
ref: 22
99000-69521
CASE
€ 152.50
