CYLINDER

GS450L 1988 (J) USA (E03)

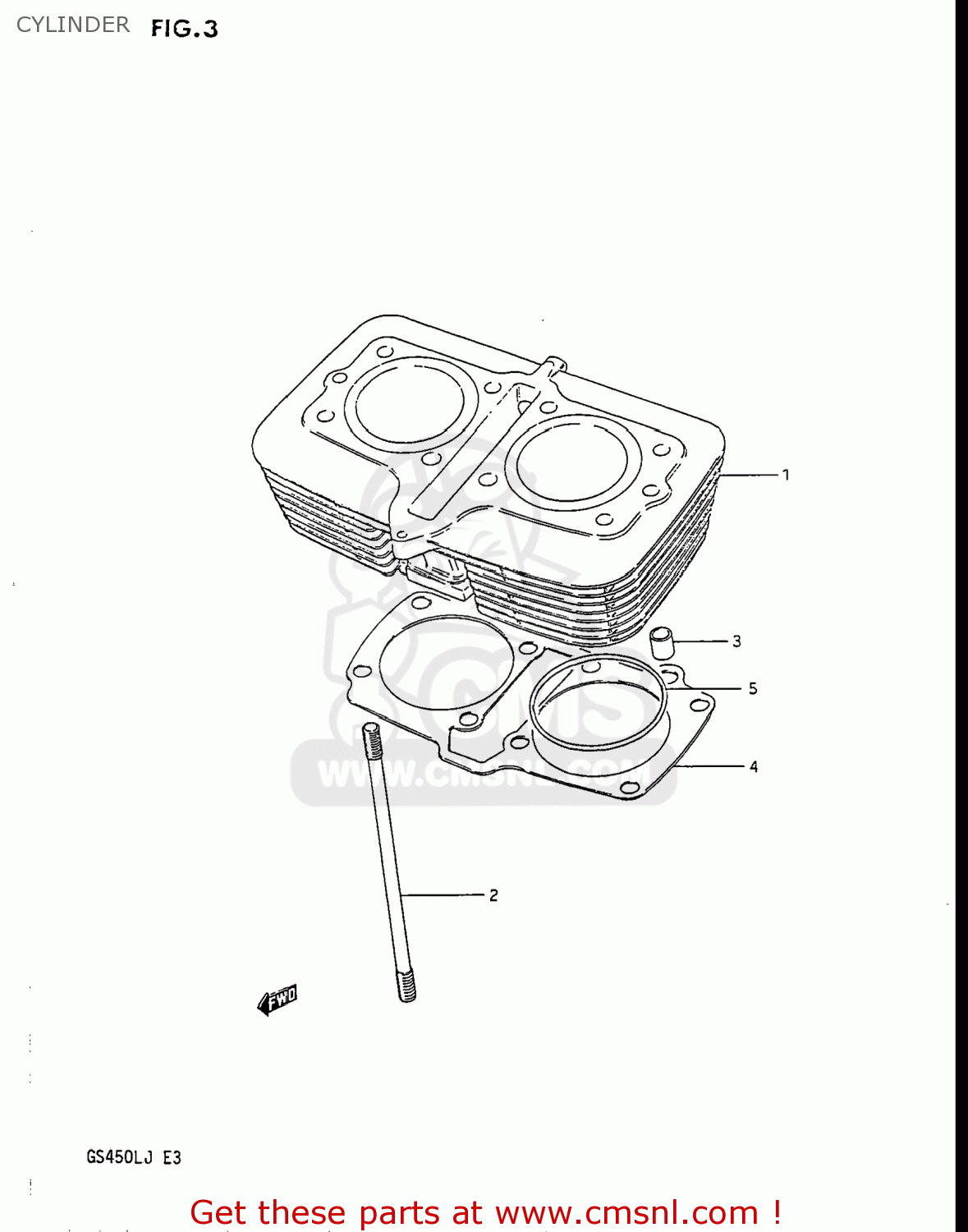

Cylinder diagram GS450L 1988 (J) USA (E03)

CYLINDER GS450L 1988 (J) USA (E03)

CYLINDER GS450L 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121044110
ref: 1

CYLINDER

€ 522.00

2

0910810071
ref: 2
09108-10112

STUD

€ 9.00

3

0421111189
ref: 3

PIN

€ 2.00

4

1124144100
ref: 4
11241-44100-H17

GASKET,CYLINDER (MCA)

€ 12.50

5

0928074002
ref: 5

O RING(D:2,ID:74)

€ 6.00
