SPEEDOMETER - TACHOMETER
GS450L 1988 (J) USA (E03)

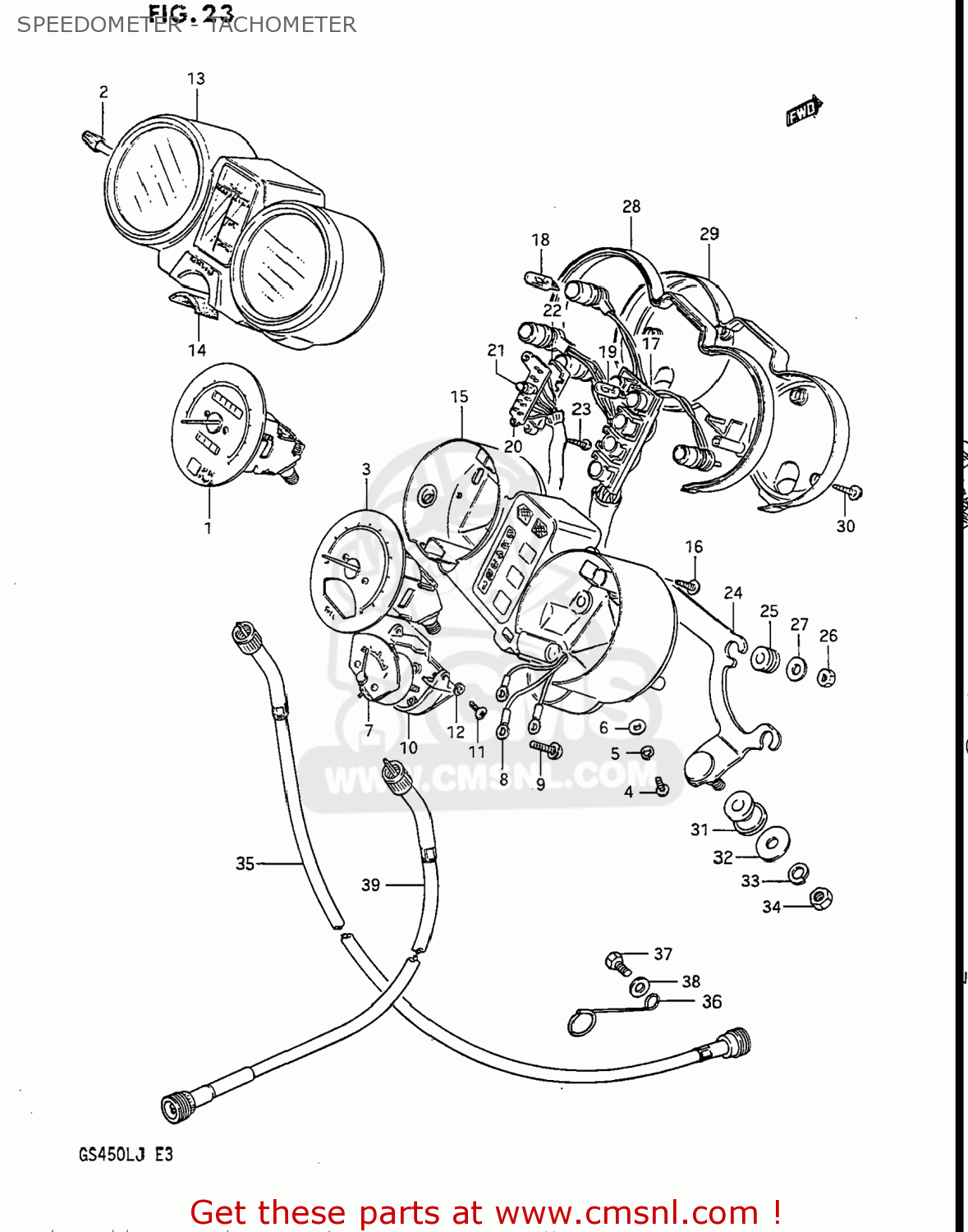

Speedometer - tachometer diagram GS450L 1988 (J) USA (E03)
SPEEDOMETER - TACHOMETER GS450L 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412044930
ref: 1-1
METER,SPEEDOMETER (KM/MPH)
€ 147.00
1-2
3412044940
ref: 1-2
34120-44930
SPEEDOMETER
€ 147.00
2
3498045020
ref: 2
KNOB
€ 4.50
3-1
3422044930
ref: 3-1
34220-44910
TACHOMETER
€ 214.50
3-2
3422044910
ref: 3-2
METER,TACHOMETER
€ 214.50
4
0211204108
ref: 4
02112-04107
SCREW 4X10
€ 2.00
5
0832221047
ref: 5
08322-01047
WASHER 4MM
€ 2.00
6
0832121047
ref: 6
08321-0104A
WASHER,LOCK 4M
€ 2.00
7
3432044911
ref: 7
METER,FUEL
€ 86.50
8
3437844911
ref: 8
WIRE,FUEL METER LEAD
€ 14.50
9
3438309400
ref: 9
SCREW(3X22)
€ 2.50
10
3435044910
ref: 10
BRACKET,FUEL METER
€ 7.50
11
0211203108
ref: 11
02112-03107
SCREW
€ 1.50
12
0832121038
ref: 12
09162-03001
LOCK WASHER
€ 1.50
13
3415044910
ref: 13
HOOD,METER
€ 80.00
14
3499347000
ref: 14
SEAL,IGNITION SWITCH
€ 3.00
15-1
3411144930
ref: 15-1
34111-44900
CASE,METER,INNER
€ 75.00
15-2
3411144910
ref: 15-2
34111-44900
CASE,METER,INNER
€ 75.00
16
0214204127
ref: 16
SCREW
€ 2.00
17-1
3632144930
ref: 17-1
SOCKET,METER
€ 39.00
17-2
3632144940
ref: 17-2
SOCKET,METER
€ 64.50
18-1
0947112028
ref: 18-1
BULB(12V3.4W,T10)
€ 3.50
18-2
0947112028
ref: 18-2
BULB(12V3.4W,T10)
€ 3.50
19
0947112077
ref: 19
BULB(12V1.7W,T10,WB121)
€ 1.00
20
3645344910
ref: 20
SOCKET,GEAR INDICATOR
€ 122.00
21
0947112078
ref: 21
BULB(14V1.12W,BQ041-32503B)
€ 6.50
22
3645444910
ref: 22
COVER,INDICATOR,LOWER
€ 4.50
23
0321103166
ref: 23
SCREW
€ 1.50
24
3495044910
ref: 24
BRACKET,COMBINATION METER
€ 30.00
25
3418944910
ref: 25
34189-32B00
CUSHION,METER
€ 5.00
26
0831011058
ref: 26
08310-00057
NUT
€ 2.50
27
0916005017
ref: 27
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
28
3496144910
ref: 28
COVER,METER,UNDER
€ 59.00
29
3419344910
ref: 29
COVER,LWR
€ 40.00
30
0214204127
ref: 30
SCREW
€ 2.00
31
3495631001
ref: 31
CUSHION,METER BRACKET
€ 4.50
32
0916008057
ref: 32
09160-08135
WASHER (8.5X20X1.6)
€ 2.00
33
0832121084
ref: 33
08321-0108A
WASHER,LOCK,8.
€ 2.50
34
0831011085
ref: 34
08310-0008A
NUT
€ 1.50
35
3491044900
ref: 35
34910-45123
CABLE ASSEMBLY,SPEEDOMETER
€ 24.00
36
3493845100
ref: 36
CLAMP,SPEEDOMETER CABLE
€ 14.50
37
0110706167
ref: 37
01500-06167
BOLT
€ 3.00
38
0832221067
ref: 38
08322-01067
WASHER
€ 2.00
39
3494044111
ref: 39
34940-05311
CABLE ASSEMBLY,TACHOMETER
€ 49.00
