WIRING HARNESS
GS450L 1988 (J) USA (E03)

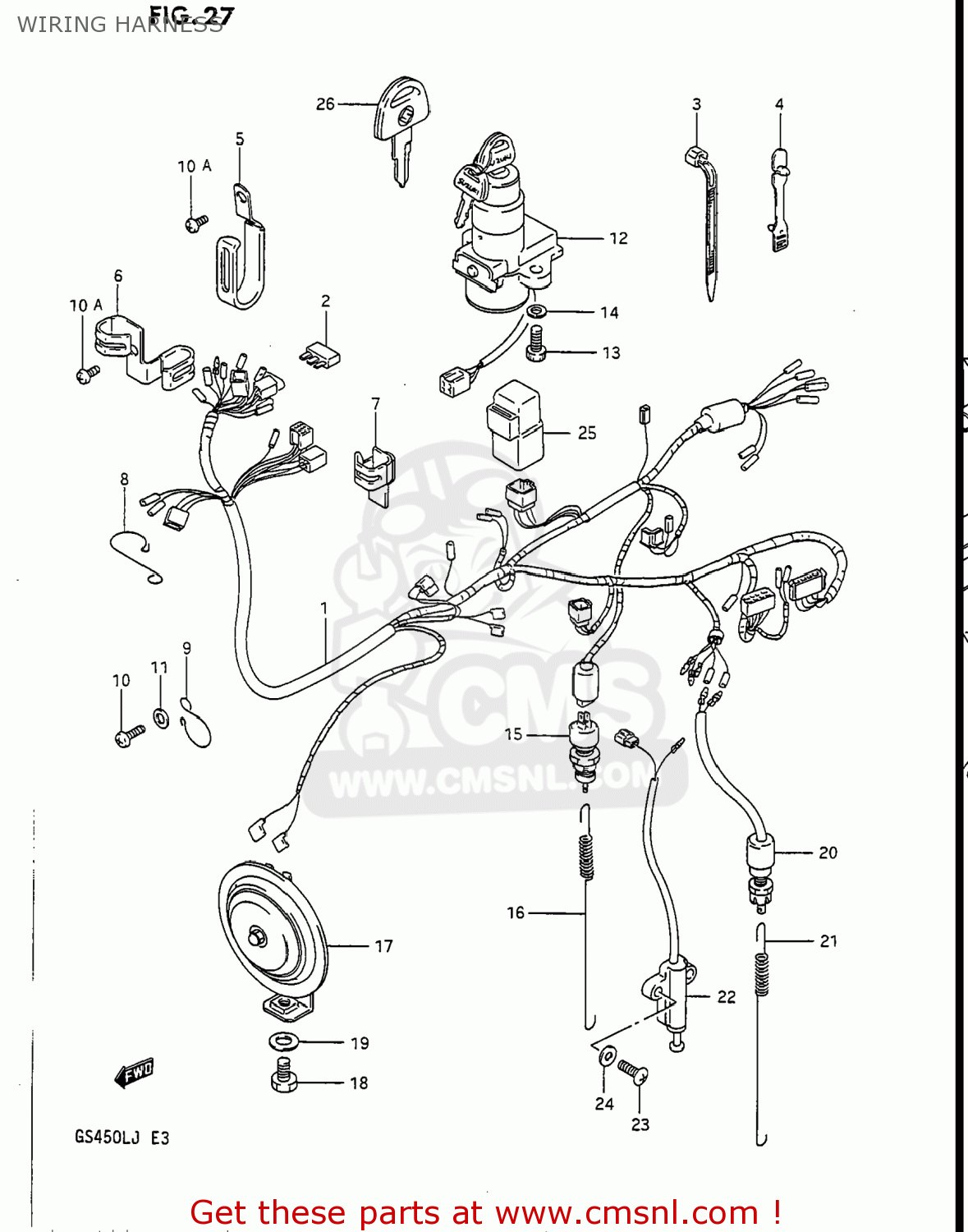

Wiring harness diagram GS450L 1988 (J) USA (E03)
WIRING HARNESS GS450L 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661044720
ref: 1-1
36610-44X50
HARNESS,WIRING
€ 181.00
1-2
3661044750
ref: 1-2
HARNESS,WIRING
€ 142.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3
0940714403
ref: 3
CLAMP(L:125)
€ 2.50
4
0940705403
ref: 4
CLAMP,L:88
€ 1.50
5
3665134400
ref: 5
CLAMP,WIRING HARNESS
€ 0.00
6
3665134410
ref: 6
CLAMP,WIRING HARNESS
€ 0.00
7
3665134420
ref: 7
CLAMP,WIRING HARNESS
€ 0.00
8
3661944401
ref: 8
CLIP,WIRING HARNESS
€ 0.00
9
3661944002
ref: 9
CLIP,WIRING HARNESS
€ 2.50
10
0211206125
ref: 10
02112-0612A
SCREW
€ 1.50
10A
0211205066
ref: 10A
02112-0506B
SCREW
€ 2.00
11
0832221064
ref: 11
08322-0106B
WASHER
€ 2.00
12-1
3710031301
ref: 12-1
37100-30B20
LOCK ASSEMBLY,STEERING
€ 108.50
12-2
3710030B20
ref: 12-2
SWITCH ASSY,IGNITION
€ 108.50
13
3715247011
ref: 13
07130-0616B
BOLT
€ 3.00
14
0832121067
ref: 14
08321-01067
WASHER,LOCK
€ 2.50
15
3774024A00
ref: 15
SWITCH ASSY,STOP LAMP
€ 20.50
16
0944306035
ref: 16
09443-06035-XC0
SPRING
€ 4.50
17
3850044410
ref: 17
HORN ASSEMBLY
€ 45.00
18
0110708125
ref: 18
01500-0812A
BOLT
€ 1.50
19
0832211084
ref: 19
08322-0108A
WASHER
€ 1.50
20
3784034500
ref: 20
SWITCH ASSEMBLY,SIDE STAND
€ 14.00
21
0944306030
ref: 21
09443-06048
SPRING
€ 4.50
22-1
3784044A00
ref: 22-1
37840-44X50
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
22-2
3784044A10
ref: 22-2
37840-44X50
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
23
0211206205
ref: 23
02112-0620A
SCREW
€ 2.00
24
0832221064
ref: 24
08322-0106B
WASHER
€ 2.00
25
3874024B10
ref: 25
38740-24X50
RELAY ASSEMBLY
€ 37.50
26
3714647010
ref: 26
KEY,BLANK
€ 15.00
