STARTING MOTOR
GS450L 1988 (J) USA (E03)

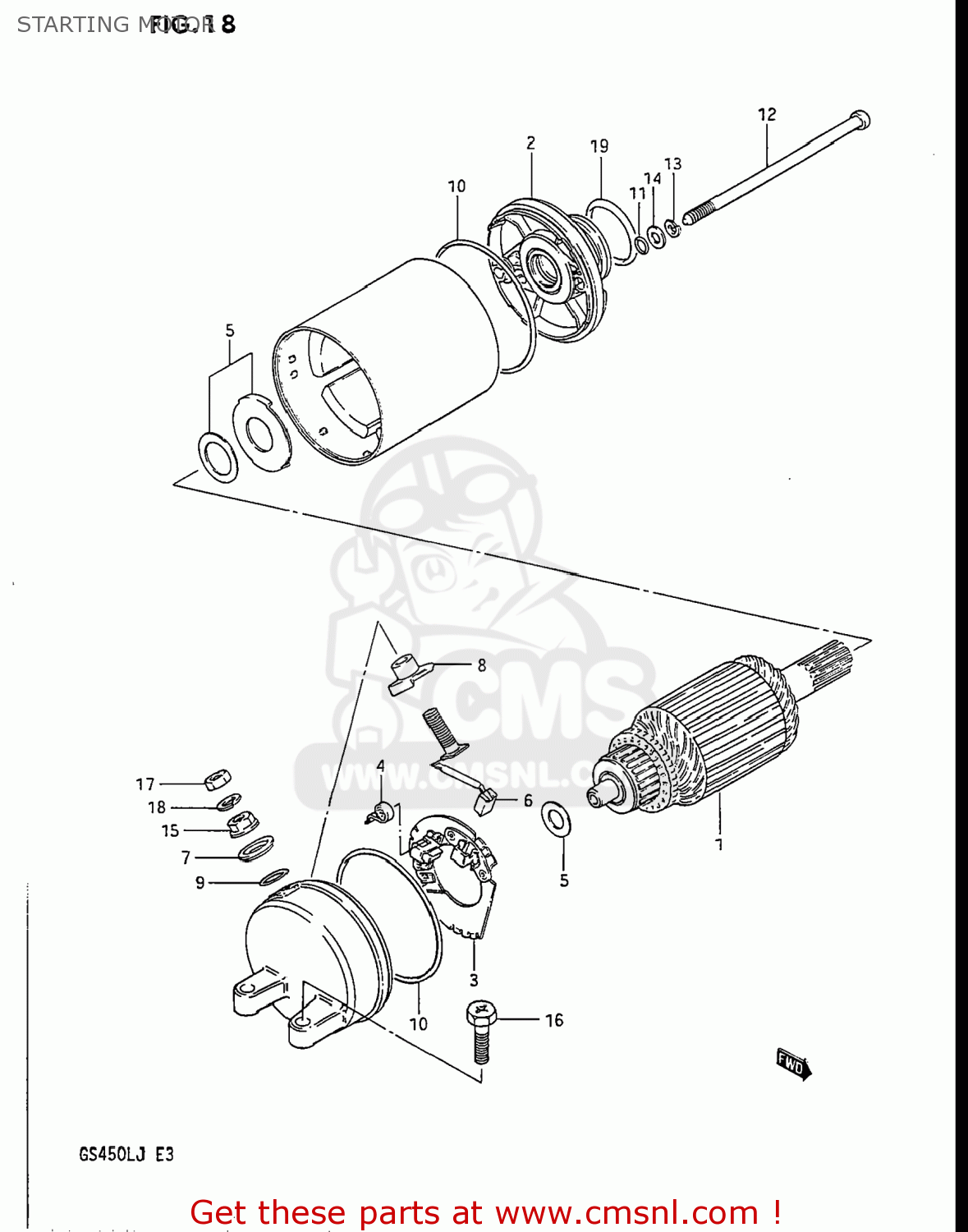

Starting motor diagram GS450L 1988 (J) USA (E03)
STARTING MOTOR GS450L 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
3110043401
ref:
31100-30B00-H17
MOTOR ASSEMBLY,STARTING
€ 731.50
1
3131043400
ref: 1
31310-43401-H17
ARMATURE
€ 173.00
2
3115043400
ref: 2
BRACKET SET,STARTING MOTOR
€ 88.00
3
3113244110
ref: 3
31132-27A01
HOLDER,BRUSH
€ 47.00
4
3113565010
ref: 4
SPRING
€ 3.00
5
3117043400
ref: 5
SHIM SET,STARTING MOTOR
€ 3.50
6
3113038300
ref: 6
BRUSH SUB ASSY,STARTING MOTOR
€ 12.50
7
3117238300
ref: 7
BUSHING
€ 4.00
8
3117138300
ref: 8
BUSH,B
€ 5.50
9
3114338300
ref: 9
O RING
€ 3.50
10
3126444110
ref: 10
O RING
€ 8.00
11
3115638300
ref: 11
O RING
€ 3.00
12
3128105300
ref: 12
31281-88C00
BOLT
€ 8.50
13
0832121057
ref: 13
08321-0105A
LOCK WASHER
€ 2.00
14
3116138300
ref: 14
WASHER
€ 2.50
15
0915906017
ref: 15
08319-31067
NUT
€ 2.50
16
0912806024
ref: 16
09103-06212
SCREW (6X25)
€ 2.50
17
0831011066
ref: 17
08310-0006A
NUT
€ 2.00
18
0832121066
ref: 18
08321-0106A
WASHER,LOCK
€ 2.00
19
0928024003
ref: 19
O RING(D:3,ID:24.5)
€ 2.00
