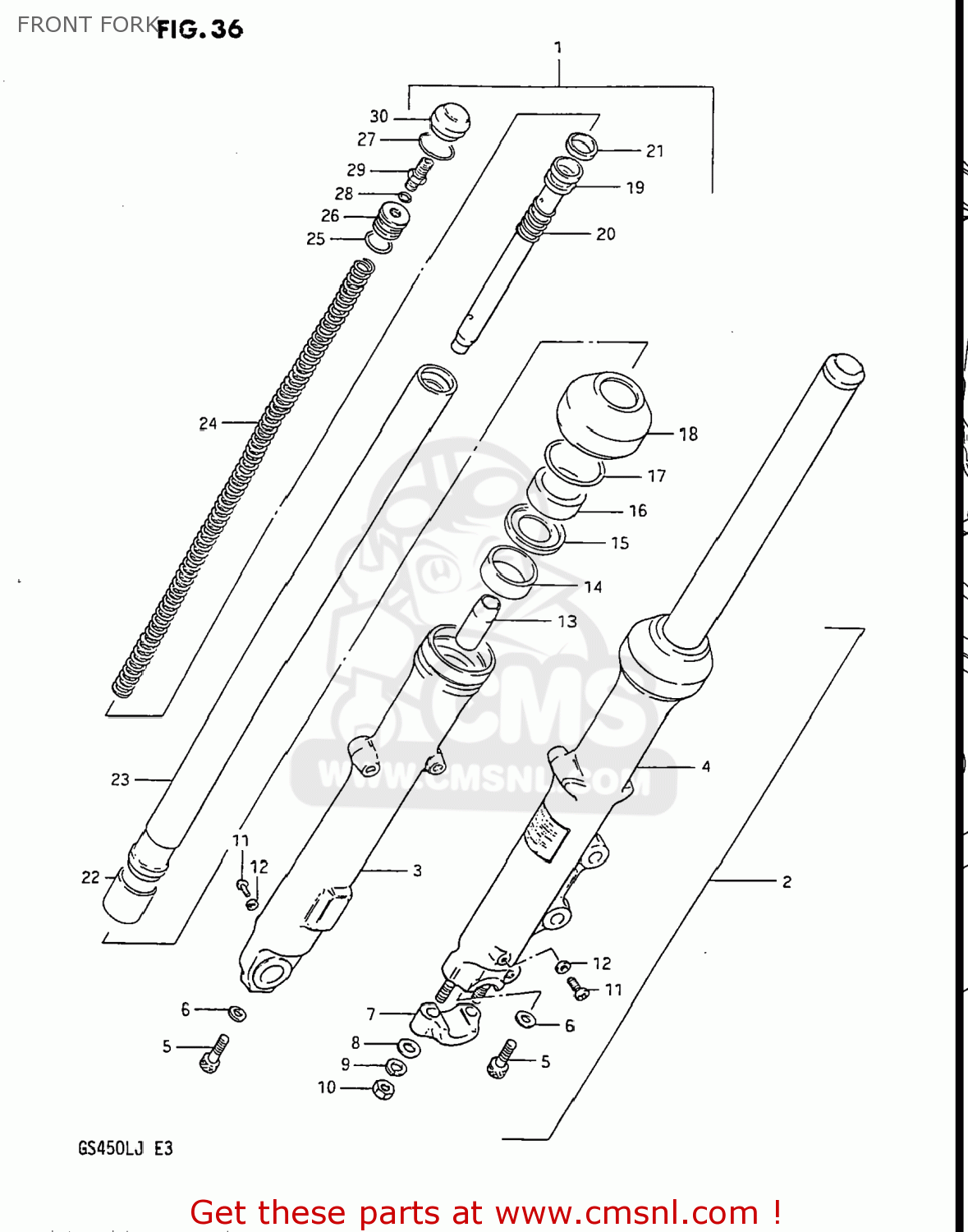

FRONT FORK

ref

part #

description

quantity

1

5110344900
ref: 1

DAMPER ASSEMBLY,FRONT FORK,RIGHT

€ 0.00

2

5110444900
ref: 2

DAMPER ASSEMBLY,FRONT FORK,LEFT

€ 396.00

3

5113047420
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 181.00

4

5114034200
ref: 4

TUBE,FORK,LEFT,OUTER

€ 157.00

5

5114748130
ref: 5

BOLT(8X27)

€ 3.50

6

5114836011
ref: 6

GASKET (NAS)

€ 4.00

7

5113231030
ref: 7

HOLDER,AXLE

€ 31.50

8

0832221088
ref: 8
08322-01087

WASHER

€ 2.00

9

0832121088
ref: 9
08321-01087

LOCK WASHER

€ 2.00

10

0914008005
ref: 10
09140-08017

NUT (8MM)

€ 1.50

11

0110706088
ref: 11
09100-06157

BOLT

€ 2.50

12

5118331030
ref: 12

GASKET,DRAIN,PLUG (NAS)

€ 4.00

13

5119545030
ref: 13

PIECE,OIL LOCK

€ 16.00

14

5115245400
ref: 14

BUSH,GUIDE

€ 14.00

15

5116801A30
ref: 15
51168-30B00

SPACER,SEAL

€ 5.00

16

5115320520
ref: 16
51153-19D10

OIL SEAL,FRONT FORK

€ 14.00

17

5115645440
ref: 17
51156-01A00

CIRCLIP,FORK OIL SEAL

€ 3.50

18

5157120520
ref: 18

DUST SEAL,FR FORK

€ 19.50

19

5114644900
ref: 19

CYLINDER,FRONT FORK

€ 23.00

20

5117720500
ref: 20

SPRING,FORK REBOUND

€ 2.50

21

5119645200
ref: 21

RING,PISTON

€ 5.50

22

5112145400
ref: 22

PISTON

€ 22.00

23

5111044900
ref: 23

TUBE,FRONT FORK,INNER

€ 166.00

24

5117144900
ref: 24

SPRING,FRONT FORK

€ 21.00

25

5118131030
ref: 25

O RING

€ 3.50

26

5117234420
ref: 26

SEAT,SPRING

€ 6.00

27

5116947400
ref: 27

RING,STOPPER

€ 2.50

28

5111745400
ref: 28
09280-06005

O-RING (D:3.8 ID:19)

€ 2.50

29

5129345440
ref: 29

VALVE,AIR

€ 17.00

30

5118934420
ref: 30

CAP

€ 6.50

all assemblies
