GS450L 1988 (J) USA (E03)

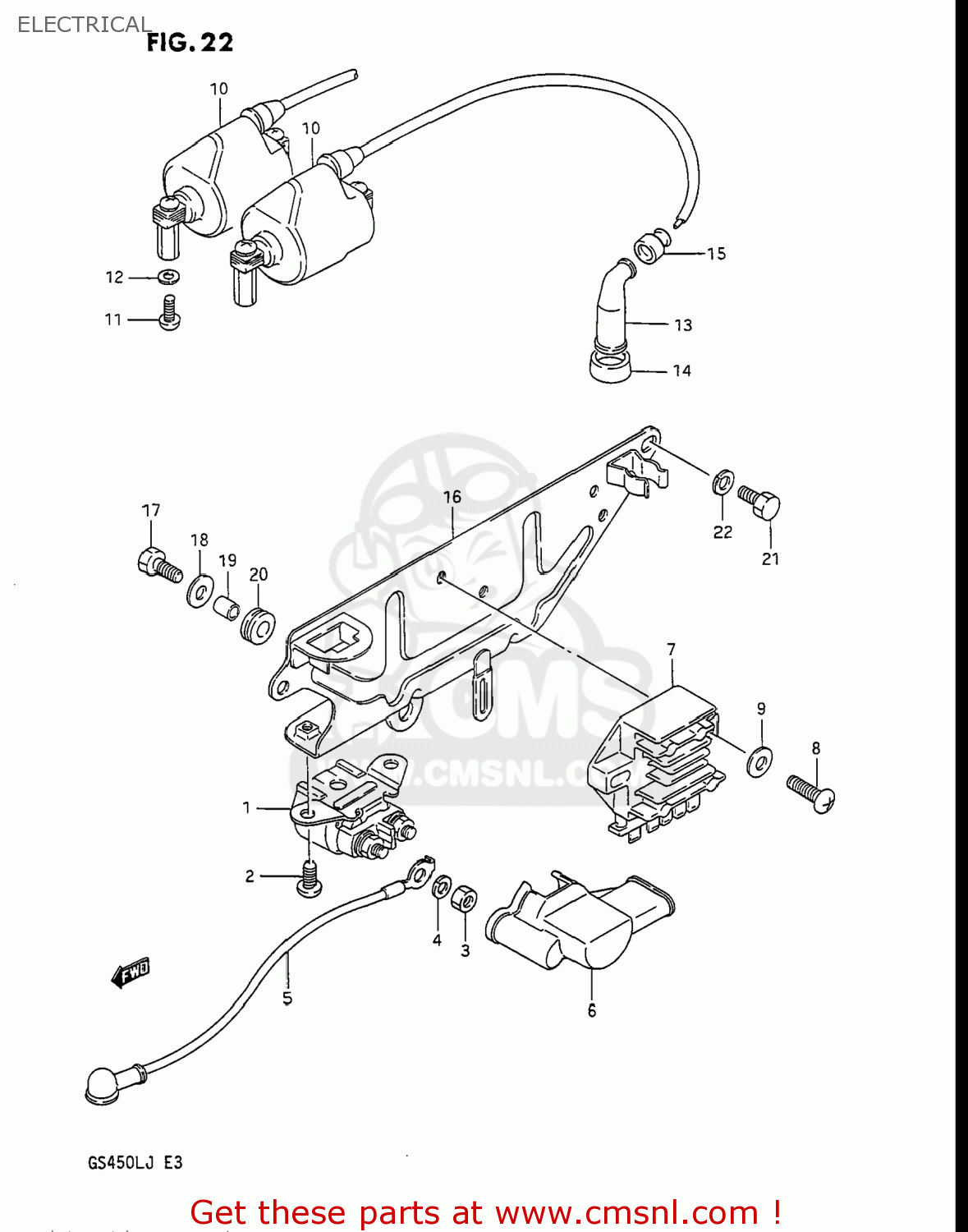

Electrical diagram GS450L 1988 (J) USA (E03)
ELECTRICAL GS450L 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
€ 89.00
2
0211206106
ref: 2
02112-0610B
SCREW
€ 1.50
3
0831011066
ref: 3
08310-0006A
NUT
€ 2.00
4
0832121066
ref: 4
08321-0106A
WASHER,LOCK
€ 2.00
5
3385044520
ref: 5
33850-06B00
WIRE,STARTER MOTOR LEAD
€ 30.00
6
3186144500
ref: 6
31861-46D00
CAP,STARTER RELAY
€ 6.50
7
3280044230
ref: 7
32800-33401
RECTIFIER ASSEMBLY
€ 235.00
8
0211206208
ref: 8
02112-06207
SCREW
€ 2.00
9
0832221067
ref: 9
08322-01067
WASHER
€ 2.00
10
3341044510
ref: 10
33410-44X50
COIL ASSEMBLY,IGNITION
€ 146.50
11
0211205107
ref: 11
SCREW
€ 2.00
12
0832121057
ref: 12
08321-0105A
LOCK WASHER
€ 2.00
13
3351043010
ref: 13
CAP,SPARK PLUG
€ 11.50
14
3354169010
ref: 14
SEAL,SPARK PLUG
€ 5.00
15
3354298000
ref: 15
33542-38B00
SEAL,SPARK PLU
€ 4.50
16-1
4741044502
ref: 16-1
47410-44503
HOLDER COMP,ELECTRONIC PARTS
€ 8.50
16-2
4741044503
ref: 16-2
HOLDER,ELECTRONIC PARTS
€ 8.50
17
0110706206
ref: 17
01500-0620A
BOLT,M6X1X20
€ 2.00
18
0916006057
ref: 18
09160-06109
WASHER
€ 2.00
19
0918006044
ref: 19
09180-06248
SPACER (6.1X8X9.5)
€ 2.50
20
0932008001
ref: 20
CUSHION
€ 3.50
21
0110706107
ref: 21
01500-06107
BOLT
€ 2.00
22
0832121067
ref: 22
08321-01067
WASHER,LOCK
€ 2.50
