CRANKCASE COVER (MODEL D)

GS450S 1982 (D) GENERAL EXPORT (E01)

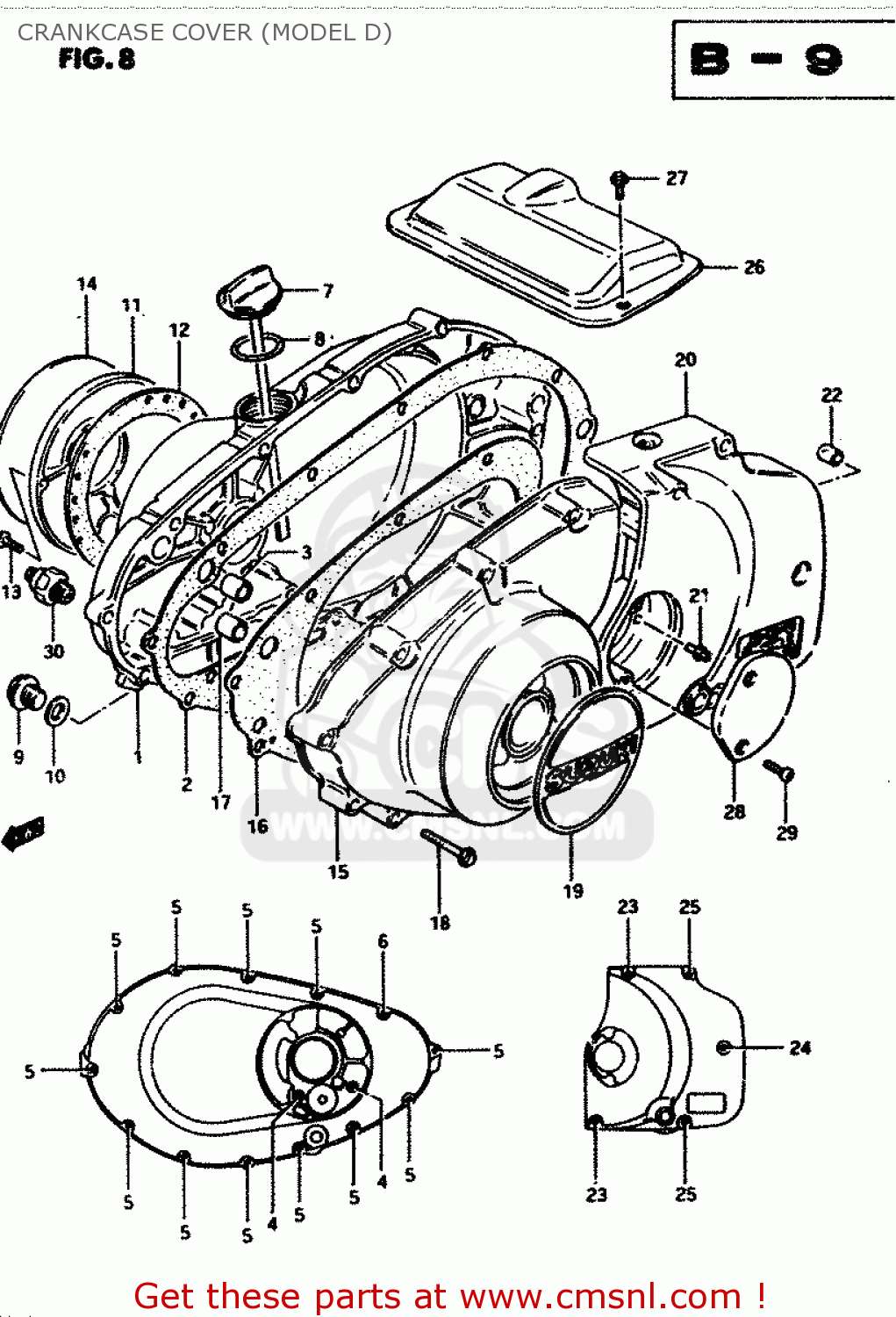

Crankcase cover (model d) diagram GS450S 1982 (D) GENERAL EXPORT (E01)

CRANKCASE COVER (MODEL D) GS450S 1982 (D) GENERAL EXPORT (E01)

CRANKCASE COVER (MODEL D) GS450S 1982 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1134144111
ref: 1

COVER,CLUTCH

€ 135.50

2

1148244100
ref: 2

GASKET,CLUTCH COVER (MCA)

€ 17.50

3

0920613001
ref: 3

PIN

€ 2.50

4

0154706555
ref: 4

BOLT (6X55)

€ 3.00

5

0154706354
ref: 5

BOLT 6X35

€ 3.00

6

0154706254
ref: 6

BOLT 6X25

€ 2.50

7

1197044110
ref: 7

GAUGE,OIL LEVEL

€ 20.50

8

0928027002
ref: 8

O-RING

€ 3.00

9

0924714012
ref: 9

PLUG (14X12)

€ 3.50

10

0916814004
ref: 10

GASKET(14X19.2X2) (NAS)

€ 2.50

11

1138144111
ref: 11

COVER,CONTACT

€ 41.50

12

1149144110
ref: 12

GASKET,CONTACT (MCA)

€ 4.50

13

0154705165
ref: 13

BOLT 5X16

€ 2.00

14

6823344100
ref: 14

EMBLEM,MAGNETO COVER

€ 15.50

15

1135144112
ref: 15

COVER,MAGNETO

€ 171.00

16

1148344101
ref: 16

GASKET,MAGNETO COVER (MCA)

€ 12.50

17

0920613001
ref: 17

PIN

€ 2.50

18

0154706354
ref: 18

BOLT 6X35

€ 3.00

19

6823344100
ref: 19

EMBLEM,MAGNETO COVER

€ 15.50

20

1136144111
ref: 20

COVER, ENGINE SPROCKET

€ 86.00

21

0835111009
ref: 21

NIPPLE

€ 32.00

22

0421109129
ref: 22

PIN

€ 2.00

23

0154706654
ref: 23

BOLT

€ 2.00

24

0154706505
ref: 24

BOLT 6X50

€ 3.50

25

0154706404
ref: 25

BOLT 6X40

€ 3.00

26

1138244110
ref: 26

COVER,STARTER MOTOR

€ 20.50

27

0154705084
ref: 27

BOLT

€ 2.50

28

1138744110
ref: 28

CAP, CLUTCH RELEASE

€ 10.00

29

0213205125
ref: 29

SCREW

€ 2.00

30

3782033200
ref: 30

SWITCH ASSEMBLY

€ 29.00
