TURN SIGNAL LAMP (E34)

GS450S 1982 (D) GENERAL EXPORT (E01)

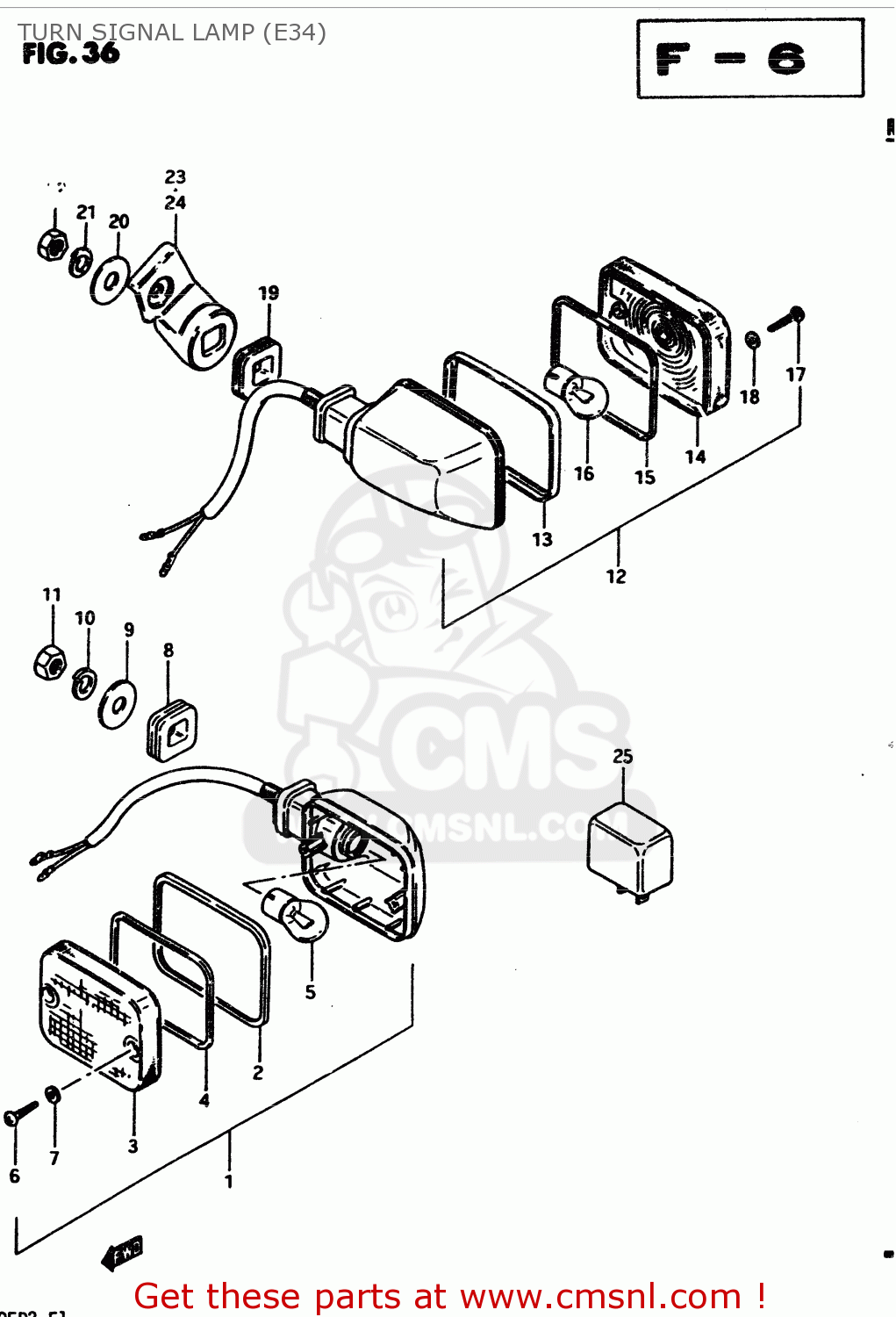

Turn signal lamp (e34) diagram GS450S 1982 (D) GENERAL EXPORT (E01)

TURN SIGNAL LAMP (E34) GS450S 1982 (D) GENERAL EXPORT (E01)
TURN SIGNAL LAMP (E34) GS450S 1982 (D) GENERAL EXPORT (E01)
TURN SIGNAL LAMP (E34) GS450S 1982 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3560145521
ref: 1
LAMP ASSY,FR T
3560145521
€ 70.00
2
3561149230
ref: 2
RIM
3561149230
€ 11.00
3
3561249231
ref: 3
LENS
3561249231
€ 13.00
4
3561349230
ref: 4
GASKET (NAS)
3561349230
€ 5.00
5
0947112045
ref: 5
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
6
0321104208
ref: 6
SCREW
0321104208
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8-1
0932015002
ref: 8-1
GS450EZ2/ED2
CUSHION
0932015002
€ 4.50
8-2
0932015004
ref: 8-2
GS450SZ/SD
CUSHION
0932015004
€ 5.00
9
0916010006
ref: 9
WASHER (10.5X30X2.3)
0916010006
€ 2.50
10
0832121108
ref: 10
LOCK WASHER
0832121108
€ 2.00
11
0831012108
ref: 11
NUT
0831012108
€ 2.50
12
3560345521
ref: 12
LAMP, REAR TURN SIGNAL
3560345521
€ 83.50
13
3561149230
ref: 13
RIM
3561149230
€ 11.00
14
3565244182
ref: 14
LENS
3565244182
€ 13.00
15
3561349230
ref: 15
GASKET (NAS)
3561349230
€ 5.00
16
0947112045
ref: 16
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
17
0321104208
ref: 17
SCREW
0321104208
€ 1.50
18
3562743010
ref: 18
GASKET (NAS)
3562743010
€ 2.00
19
0932015004
ref: 19
CUSHION
0932015004
€ 5.00
20
0916010006
ref: 20
WASHER (10.5X30X2.3)
0916010006
€ 2.50
21
0832121108
ref: 21
LOCK WASHER
0832121108
€ 2.00
22
0831012108
ref: 22
NUT
0831012108
€ 2.50
23
3562111500
ref: 23
BRACKET,REAR TURN SIGNAL
3562111500
€ 66.50
24
3564111500
ref: 24
BRACKET,REAR TURN SIGNAL
3564111500
€ 43.50
25
3861045031
ref: 25
RELAY,TURN SIGNAL
3861045031
€ 54.50
