FRONT WHEEL (MODEL D E34)

GS450S 1982 (D) GENERAL EXPORT (E01)

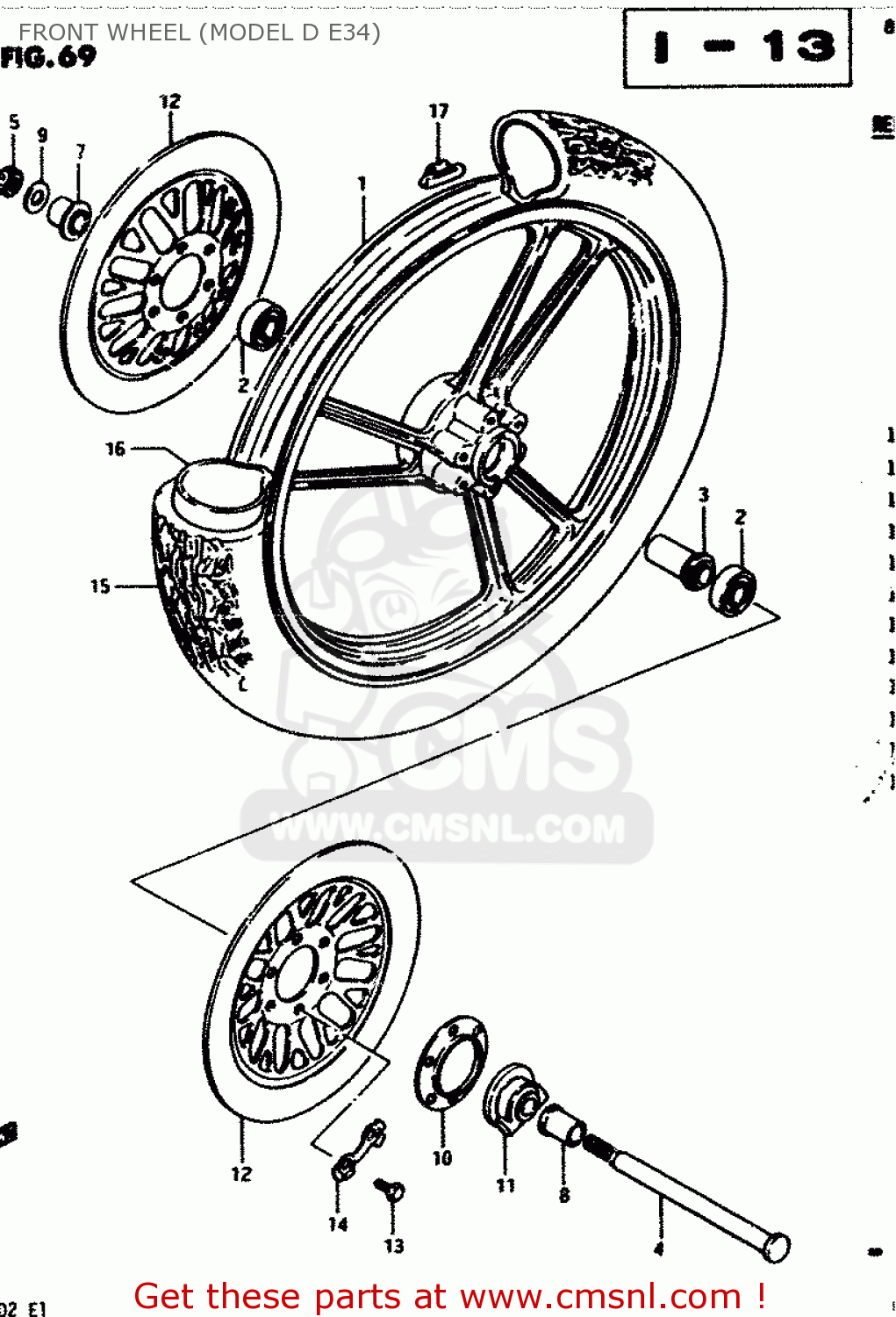

Front wheel (model d e34) diagram GS450S 1982 (D) GENERAL EXPORT (E01)

FRONT WHEEL (MODEL D E34) GS450S 1982 (D) GENERAL EXPORT (E01)

FRONT WHEEL (MODEL D E34) GS450S 1982 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5411144400291
ref: 1

WHEEL, FRONT (1.85X18)

€ 0.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

4

5471133002
ref: 4

AXLE,FRONT

€ 41.00

5

0831431128
ref: 5

NUT 12MM

€ 2.00

6

0411130308
ref: 6

COTTER PIN

€ 1.50

7

5474018410
ref: 7

SPACER,FR HUB BEARING,R

€ 17.00

8

0918015034
ref: 8

SPACER(15X22X30)

€ 7.00

9

0832221128
ref: 9

WASHER

€ 2.00

10

5487145010
ref: 10

DUST SEAL,SPEEDOMETER GEAR BOX

€ 21.00

11

5460018402
ref: 11

BOX ASSY,SPEEDOMETER GEAR

€ 90.50

12

5921133200
ref: 12

DISK, FRONT BRAKE

€ 216.00

13

0910008140
ref: 13

BOLT(8X25)

€ 2.00

14

0916908016
ref: 14

WASHER

€ 3.50

15-1

5510044010
ref: 15-1
IRC

TIRE,FRONT

€ 123.00

15-2

5510044130
ref: 15-2
BS

TIRE,FRONT

€ 123.00

16-1

5520018030
ref: 16-1

TUBE,INNER

€ 24.50

16-2

5520011601
ref: 16-2

TUBE,INNER

€ 24.50

17-1

5541145100
ref: 17-1

BALANCER,WHEEL

€ 7.00

17-2

5541245100
ref: 17-2

BALANCER,WHEEL

€ 4.00

17-3

5541345100
ref: 17-3

BALANCER,WHEEL

€ 6.50
