STAND
GS450S 1982 (D) GENERAL EXPORT (E01)

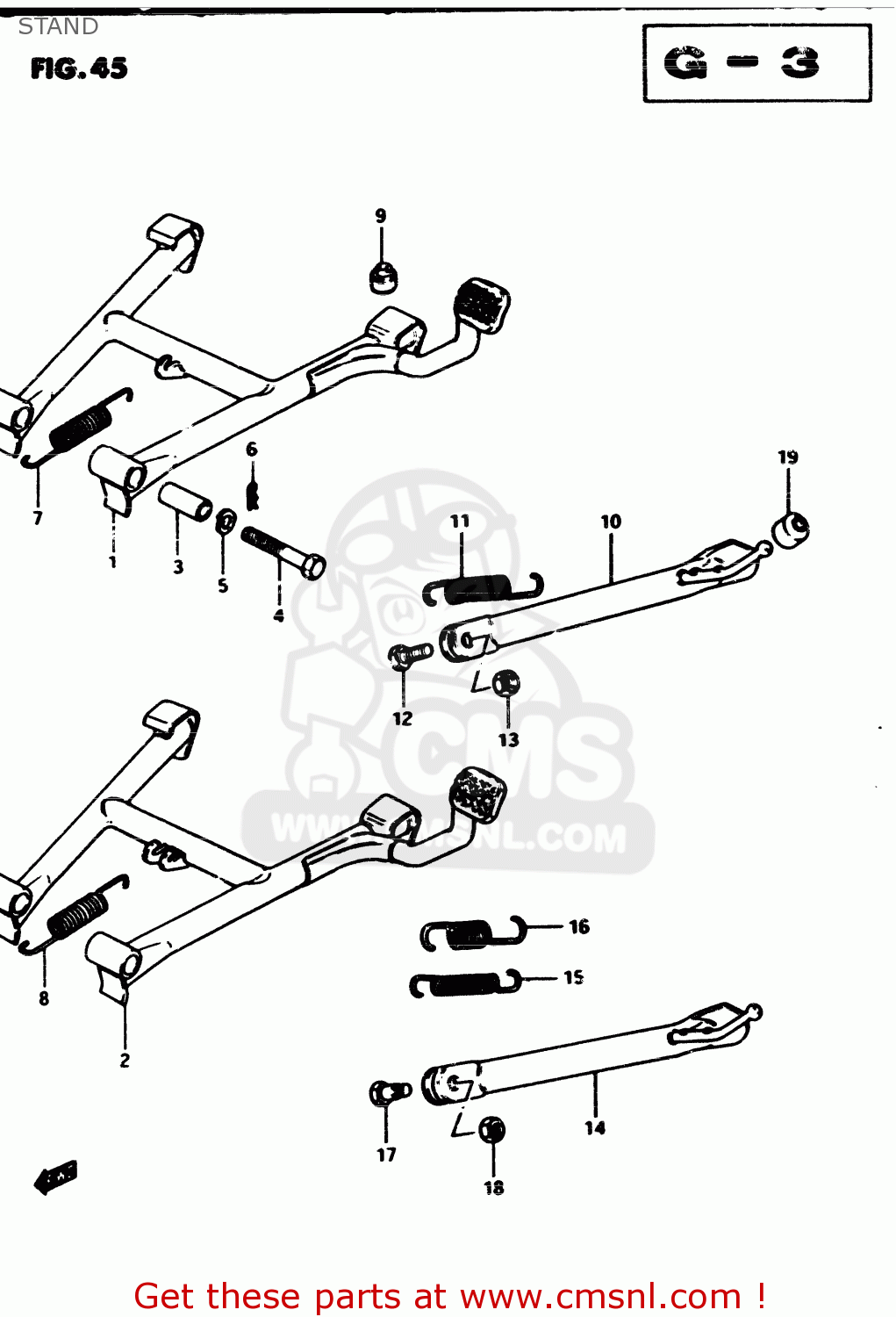

Stand diagram GS450S 1982 (D) GENERAL EXPORT (E01)
STAND GS450S 1982 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4210044400
ref: 1
STAND,CENTER
€ 72.00
2
4210044410
ref: 2
E25
STAND, CENTER
€ 91.50
3
0918010040
ref: 3
SPACER(10X16X38.8)
€ 3.00
4
0910110018
ref: 4
BOLT
€ 5.50
5
0832121108
ref: 5
LOCK WASHER
€ 2.00
6
0938510001
ref: 6
CLIP
€ 1.50
7
0944318003
ref: 7
SPRING
€ 5.50
8
0944318003
ref: 8
E25
SPRING
€ 5.50
9
0932110001
ref: 9
CUSHION
€ 2.50
10
4231044100
ref: 10
STAND,SIDE
€ 29.00
11
0944317005
ref: 11
SPRING
€ 11.50
12
0910010067
ref: 12
BOLT(10X30)
€ 3.50
13
0831022108
ref: 13
NUT
€ 2.50
14
4231044110
ref: 14
E25
STAND, PROP
€ 31.50
15
0944311008
ref: 15
E25
SPRING
€ 5.50
16
0944319002
ref: 16
E25
SPRING, OUTER
€ 4.00
17
0911110019
ref: 17
E25
BOLT L:30
€ 4.50
18
0831022108
ref: 18
E25
NUT
€ 2.50
19
0932007001
ref: 19
CUSHION
€ 4.00
