CYLINDER HEAD
GS450S 1982 (D) GENERAL EXPORT (E01)

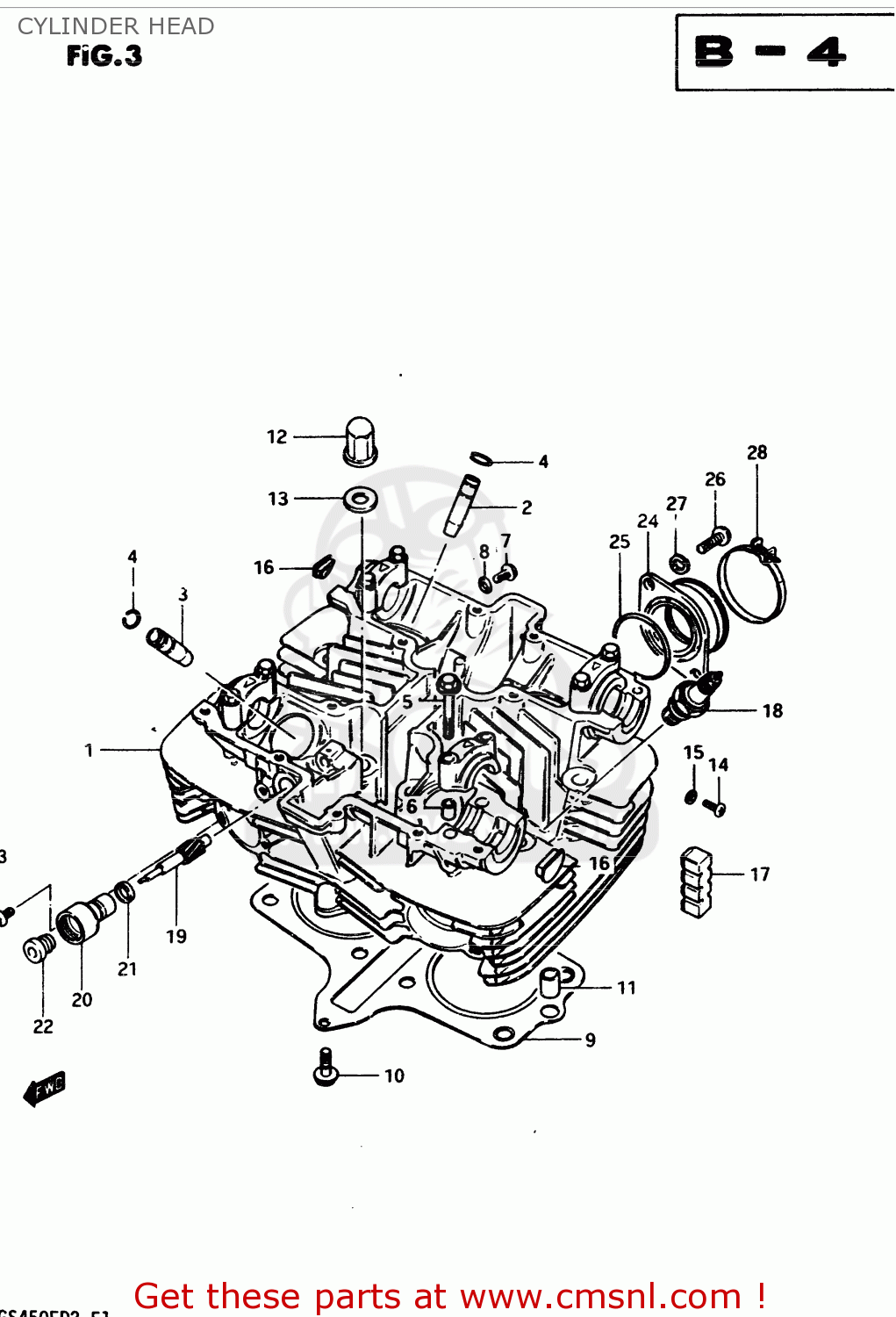

Cylinder head diagram GS450S 1982 (D) GENERAL EXPORT (E01)
CYLINDER HEAD GS450S 1982 (D) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110044110
ref: 1-1
MODEL Z
HEAD ASSEMBLY,CYLINDER
€ 674.50
1-2
1110044120
ref: 1-2
MODEL D
HEAD SET,CYLINDER
€ 0.00
2
1111545740
ref: 2
GUIDE,INTAKE VALVE
€ 25.50
3
1111645740
ref: 3
GUIDE,EXHAUST VALVE
€ 27.00
4
0938110003
ref: 4
RING,SNAP
€ 2.50
5
0910306026
ref: 5
BOLT(6X39)
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
€ 2.00
7
0151706128
ref: 7
BOLT
€ 2.50
8
0916806015
ref: 8
WASHER
€ 2.00
9
1114144110
ref: 9
GASKET,CYLINDER HEAD (MCA)
€ 117.00
10-1
0151706308
ref: 10-1
MODEL Z
BOLT
€ 2.00
10-2
0151706305
ref: 10-2
MODEL D
BOLT 6X30
€ 2.50
11
0421111189
ref: 11
PIN
€ 2.00
12
0915910026
ref: 12
NUT
€ 6.00
13
0916810017
ref: 13
GASKET(10.5X22X2) (NAS)
€ 3.50
14
0211205088
ref: 14
SCREW
€ 2.00
15
0916805010
ref: 15
GASKET(5.3X9.3X1.2) (NAS)
€ 2.00
16
0924123002
ref: 16
PLUG
€ 8.50
17
1125146150
ref: 17
PAD,CYLINDER
€ 7.00
18-1
0948200091
ref: 18-1
PLUG,SPARK
€ 3.00
18-2
0948200196
ref: 18-2
SPARK PLUG W24ES-U
€ 3.50
18-3
0948200121
ref: 18-3
E6
PLUG,SPARK(BR8ES)
€ 12.50
18-4
0948200247111
ref: 18-4
E6
PLUG,SPARK(W24ESR)
€ 3.50
19
2643145001
ref: 19
GEAR,TACHOMETER DRIVEN
€ 43.00
20
2644149000
ref: 20
SLEEVE,TACHOMETER DRIVE GEAR
€ 18.00
21
2645145000A
ref: 21
SEAL,TACHOMETER DRIVEN
€ 4.50
22
0928905002
ref: 22
SEAL,OIL(5X12X8)
€ 11.00
23
0912805101
ref: 23
SCREW(5X12)
€ 1.50
24
1311044100
ref: 24
PIPE,INTAKE
€ 30.00
25
0928040003
ref: 25
O-RING (D:2.4 ID:39.7)
€ 3.50
26-1
0211206208
ref: 26-1
MODEL Z
SCREW
€ 2.00
26-2
0211206205
ref: 26-2
MODEL D
SCREW
€ 2.00
27-1
0832121068
ref: 27-1
MODEL Z
LOCK WASHER
€ 2.50
27-2
0832121065
ref: 27-2
MODEL D
LOCK WASHER
€ 2.00
28
0940254303
ref: 28
CLAMP
€ 4.00
