CRANKCASE COVER (MODEL Z)

GS450S 1982 (D) GENERAL EXPORT (E01)

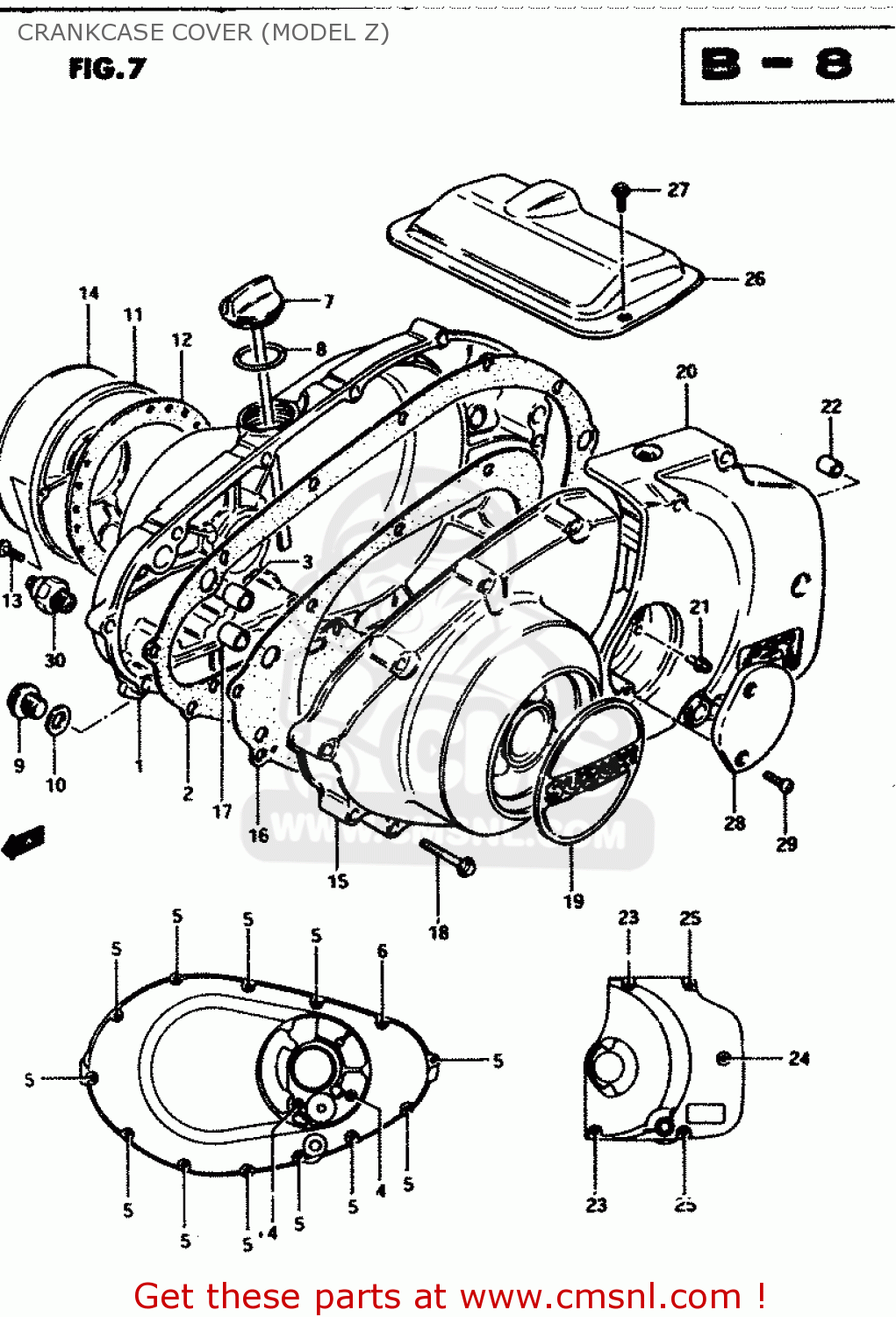

Crankcase cover (model z) diagram GS450S 1982 (D) GENERAL EXPORT (E01)

CRANKCASE COVER (MODEL Z) GS450S 1982 (D) GENERAL EXPORT (E01)

CRANKCASE COVER (MODEL Z) GS450S 1982 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1134144101
ref: 1

COVER,CLUTCH

€ 119.50

2

1148244100
ref: 2

GASKET,CLUTCH COVER (MCA)

€ 17.50

3

0920613001
ref: 3

PIN

€ 2.50

4

0154706558
ref: 4

BOLT (6X55)

€ 2.50

5

0154706358
ref: 5

BOLT (6X35)

€ 2.50

6

0154706258
ref: 6

BOLT

€ 2.50

7

1197044100
ref: 7

GAUGE,OIL LEVEL

€ 17.50

8

0928027002
ref: 8

O-RING

€ 3.00

9

0924714012
ref: 9

PLUG (14X12)

€ 3.50

10

0916814004
ref: 10

GASKET(14X19.2X2) (NAS)

€ 2.50

11

1138144101
ref: 11

COVER,CONTACT BREAKER

€ 42.00

12

1149144100
ref: 12

GASKET,CONTACT BREAKER COVER (NAS)

€ 4.50

13

0154405168
ref: 13

BOLT 5X16

€ 2.00

14

6823344100
ref: 14

EMBLEM,MAGNETO COVER

€ 15.50

15

1135144102
ref: 15

COVER,MAGNETO

€ 45.00

16

1148344101
ref: 16

GASKET,MAGNETO COVER (MCA)

€ 12.50

17

0920613001
ref: 17

PIN

€ 2.50

18

0154706358
ref: 18

BOLT (6X35)

€ 2.50

19

6823344100
ref: 19

EMBLEM,MAGNETO COVER

€ 15.50

20

1136144101
ref: 20

COVER,ENGINE SPROCKET

€ 86.00

21

0835111009
ref: 21

NIPPLE

€ 32.00

22

0421109129
ref: 22

PIN

€ 2.00

23

0154706658
ref: 23

BOLT (6X65)

€ 2.00

24

0154706508
ref: 24

BOLT (6X50)

€ 2.50

25

0154706408
ref: 25

BOLT (6X40)

€ 2.50

26

1138244100
ref: 26

COVER,STARTER MOTOR

€ 20.50

27

0154705088
ref: 27

BOLT

€ 2.00

28

1138744100
ref: 28

CAP,CLUTCH RELEASE ADJUST

€ 10.00

29

0213205127
ref: 29

SCREW 5X12

€ 2.50

30

3782033200
ref: 30

SWITCH ASSEMBLY

€ 29.00
