FRONT BRAKE HOSE

GS450S 1982 (D) GENERAL EXPORT (E01)

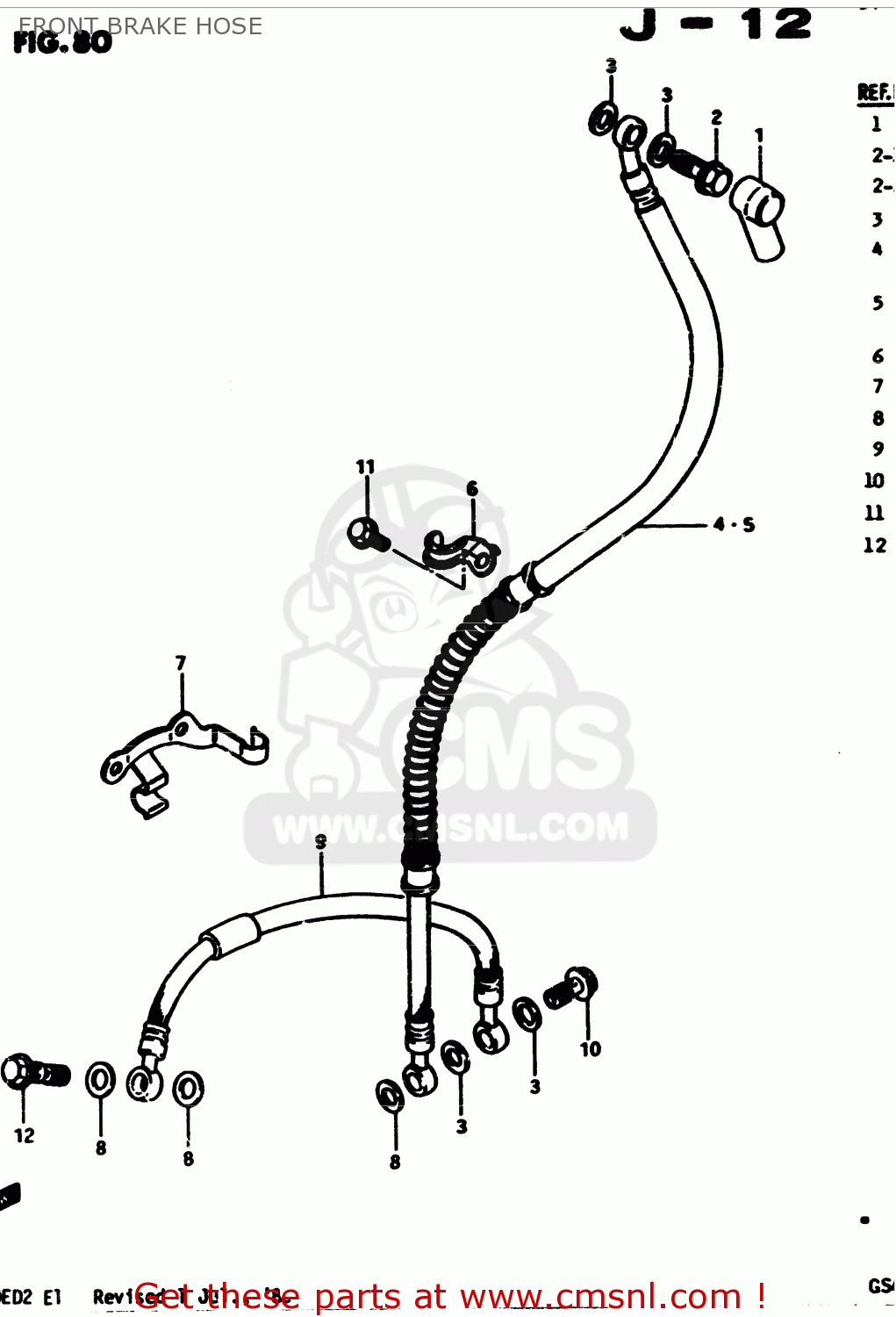

Front brake hose diagram GS450S 1982 (D) GENERAL EXPORT (E01)

FRONT BRAKE HOSE GS450S 1982 (D) GENERAL EXPORT (E01)
FRONT BRAKE HOSE GS450S 1982 (D) GENERAL EXPORT (E01)
FRONT BRAKE HOSE GS450S 1982 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5971149001
ref: 1
BOOT,MASTER CYLINDER
5971149001
€ 8.50
2-1
0936010007
ref: 2-1
MODEL Z
BOLT,UNION
0936010007
€ 6.50
2-2
0936010009
ref: 2-2
MODEL D
BOLT UNION
€ 6.50
3
0916110005
ref: 3
WASHER
0916110005
€ 2.00
4
5948011501
ref: 4
HOSE,FR BRAKE
€ 74.50
5
5948011511
ref: 5
HOSE, BRAKE (FLAT HANDLEBAR)
€ 57.50
6
5924611400
ref: 6
GUIDE,BRAKE HOSE NO.3
5924611400
€ 4.50
7
5927045901
ref: 7
CLAMP,BRAKE HOSE,LEFT
€ 9.50
8
0916110005
ref: 8
WASHER
0916110005
€ 2.00
9
5952011400
ref: 9
HOSE,ANTI NOSE
€ 66.50
10
0936010008
ref: 10
BOLT,UNION
0936010008
€ 7.00
11
0151706108
ref: 11
BOLT
0151706108
€ 2.50
12
0936010021
ref: 12
BOLT UNION
0936010021
€ 5.50
