CRANKCASE
GS450TX 1981 (X) USA (E03)

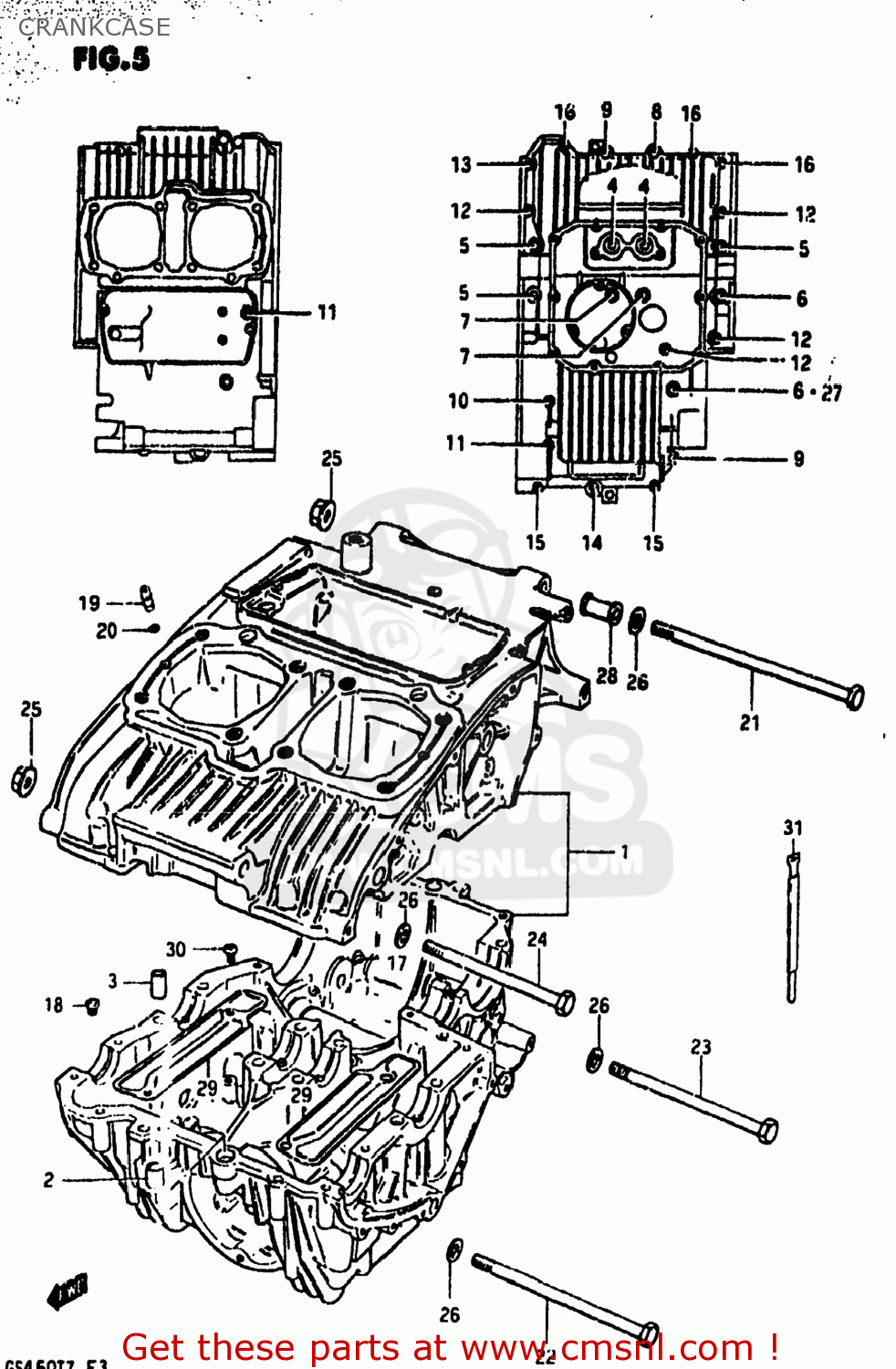

Crankcase diagram GS450TX 1981 (X) USA (E03)
CRANKCASE GS450TX 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130044861
ref: 1
CRANKCASE ASSEMBLY
€ 1,272.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
09206-11017
PIN (11X20)(SUS)
€ 6.50
4
0910608014
ref: 4
07130-0870B
BOLT
€ 4.00
5
0910308020
ref: 5
09103-08106
BOLT
€ 8.00
6
0910308024
ref: 6
09103-08134
BOLT
€ 3.00
7
0910308009
ref: 7
09103-08070
BOLT
€ 5.00
8
0151708658
ref: 8
01550-08657
BOLT 8X65
€ 3.00
9
0151708458
ref: 9
01550-08457
BOLT (8X45)
€ 3.00
10
0910306031
ref: 10
09103-06033
BOLT
€ 3.50
11
0910306025
ref: 11
09103-06067
BOLT
€ 3.50
12
0151706908
ref: 12
01550-06907
BOLT (6X90)
€ 2.00
13
0151706708
ref: 13
01550-06707
BOLT (6X70)
€ 3.00
14
0151706658
ref: 14
01550-06657
BOLT 6X65
€ 3.00
15
0151706508
ref: 15
01550-06507
BOLT ,6X50
€ 2.00
16
0151706458
ref: 16
01550-06457
BOLT,UNDER
€ 2.50
17
0949328008
ref: 17
JET
€ 0.00
18
0949332002
ref: 18
JET
€ 11.50
19
0949324008
ref: 19
JET
€ 16.00
20
0928003003
ref: 20
O RING(D:1.05,ID:3.1)
€ 2.50
21
0910110010
ref: 21
09101-10010-XC0
BOLT 10X250
€ 49.50
22
0910010033
ref: 22
BOLT(10X210)
€ 46.50
23
0910010092
ref: 23
41189-17X00
BOLT 10X160
€ 28.50
24
0910010051
ref: 24
09100-10274
BOLT
€ 6.50
25
0831931105
ref: 25
08319-3110A
NUT 10MM
€ 3.00
26
0832211108
ref: 26
08322-01107
WASHER
€ 2.50
27
0916808008
ref: 27
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
28
1161044100
ref: 28
SPACER,ENGINE MOUNT
€ 9.50
29
1152144100
ref: 29
PLATE,OIL SEPARATOR
€ 3.00
30
0211206088
ref: 30
02112-06087
SCREW
€ 2.00
31
0940718301
ref: 31
CLAMP
€ 6.00
