RIGHT HANDLE SWITCH (MODEL X)
GS450TX 1981 (X) USA (E03)

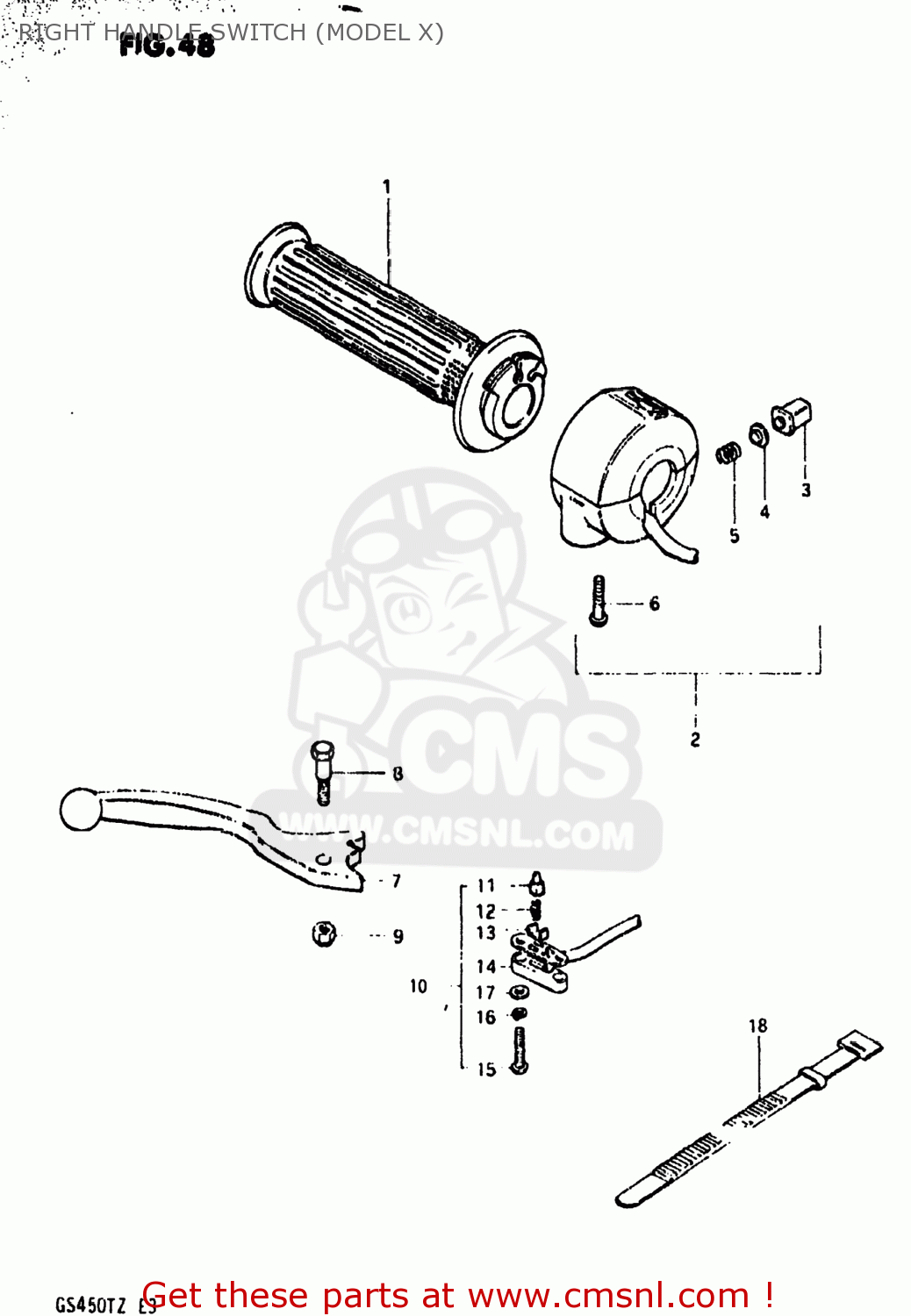

Right handle switch (model x) diagram GS450TX 1981 (X) USA (E03)
RIGHT HANDLE SWITCH (MODEL X) GS450TX 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711044011
ref: 1
57110-49510
GRIP,THROTTLE
€ 33.00
2
5710044130
ref: 2
57100-47500
CASE ASSEMBLY,THROTTLE
€ 85.00
3
5737145000
ref: 3
BUTTON,HORN
€ 3.00
4
5737245000
ref: 4
CONTACT
€ 3.00
5
5738245000
ref: 5
SPRING
€ 2.50
6
0211205258
ref: 6
02112-05257
SCREW
€ 2.00
7
5742049101
ref: 7
LEVER,BRAKE
€ 36.50
8
5743118621
ref: 8
BOLT
€ 8.00
9
0831921068
ref: 9
08319-2106A
NUT 6MM
€ 2.00
10
5746049100
ref: 10
57460-45500
SWITCH ASSEMBLY
€ 40.00
11
5746118600
ref: 11
57465-18601
HOLDER
€ 4.50
12
5746218600
ref: 12
57465-18601
SPRING
€ 4.50
13
5746318600
ref: 13
57465-18601
PLATE
€ 4.50
14
5748133010
ref: 14
COVER,FR BK TERMINAL BASE
€ 19.50
15
0912503105
ref: 15
09125-03105-XC0
SCREW
€ 2.50
16
0832121038
ref: 16
09162-03001
LOCK WASHER
€ 1.50
17
0832221038
ref: 17
08322-01037
WASHER
€ 2.00
18
0940712402
ref: 18
CLAMP(L:120)
€ 3.00
