FOOTREST (GS450TZ)
GS450TX 1981 (X) USA (E03)

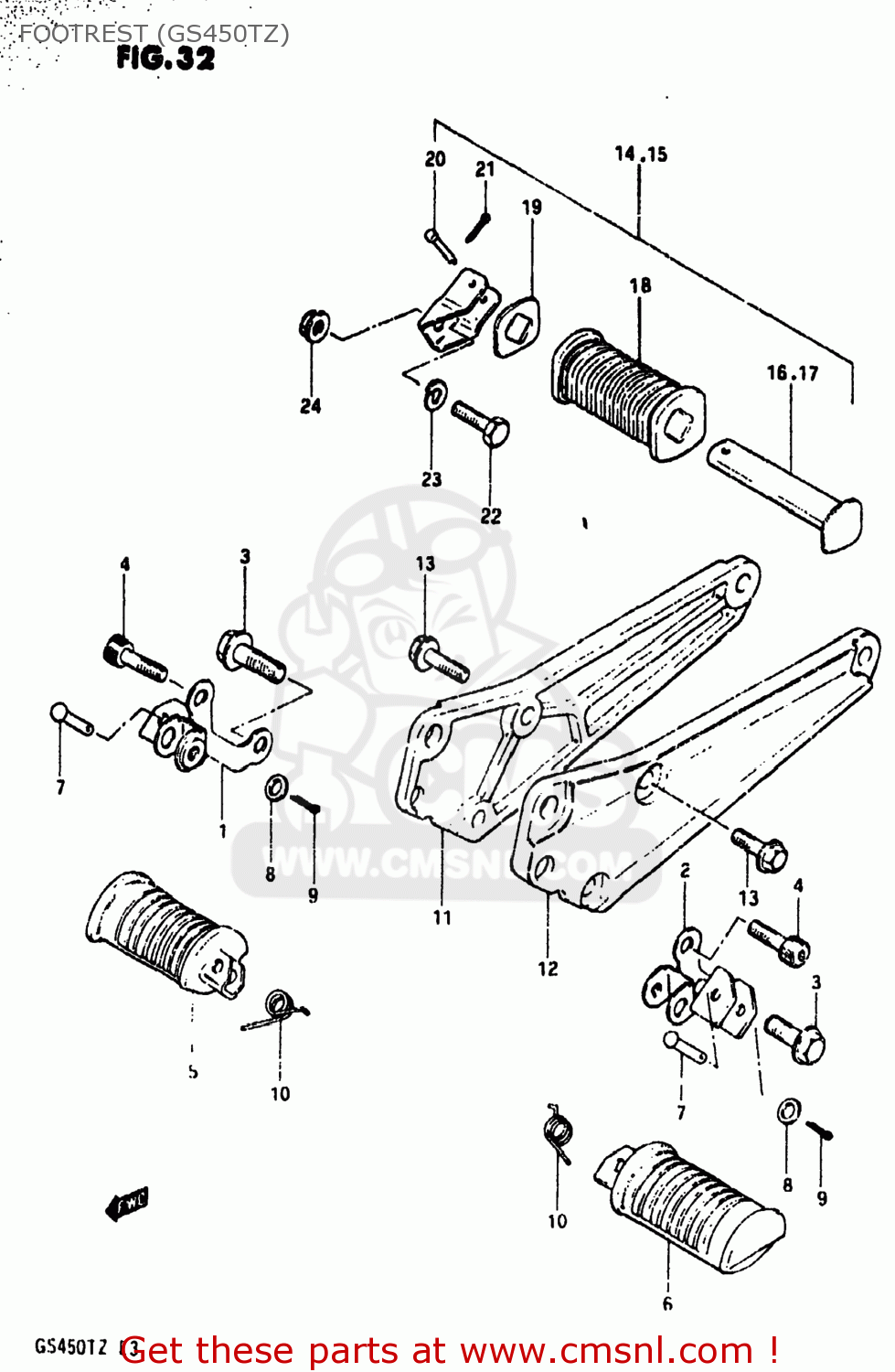

Footrest (gs450tz) diagram GS450TX 1981 (X) USA (E03)
FOOTREST (GS450TZ) GS450TX 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351044310
ref: 1
BAR,FRONT FOOTREST
€ 20.50
2
4352044310
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 31.00
3
0152710308
ref: 3
01550-10307
BOLT
€ 3.50
4
0910608017
ref: 4
07130-08207
BOLT
€ 3.00
5
4355049002
ref: 5
43550-37301
RUBBER,FRONT FOOTREST
€ 22.50
6
4356049002
ref: 6
43560-37301
FOOTREST
€ 22.50
7
0920008002
ref: 7
PIN
€ 2.00
8
0832211088
ref: 8
08322-01087
WASHER
€ 2.00
9
0411120158
ref: 9
04111-2015A
PIN
€ 1.50
10
0944814012
ref: 10
SPRING
€ 3.00
11
4381144110
ref: 11
BRACKET,MUFFLER,RIGHT
€ 102.00
12
4382144110
ref: 12
BRACKET,MUFFLER,LEFT
€ 120.00
13
0152710308
ref: 13
01550-10307
BOLT
€ 3.50
14
4360034500
ref: 14
FOOTREST ASSY,PILLION,R
€ 118.00
15
4370034500
ref: 15
FOOTREST ASSY,PILLION,L
€ 107.50
16
4361049201
ref: 16
BAR,REAR FOOTREST,RIGHT
€ 8.00
17
4362049201
ref: 17
BAR,REAR FOOTREST,LEFT
€ 23.00
18
4361249201
ref: 18
RUBBER,PILLION FOOTREST
€ 30.50
19
4363149201
ref: 19
43631-45001
WASHER,FOOTREST RUBBER
€ 16.00
20
0920006010
ref: 20
PIN
€ 2.50
21
0411120158
ref: 21
04111-2015A
PIN
€ 1.50
22
0110710358
ref: 22
01500-1035B
BOLT,M10X1.25X
€ 2.50
23
0832121108
ref: 23
08321-01107
LOCK WASHER
€ 2.00
24
0831616108
ref: 24
08316-10107
NUT
€ 2.00
