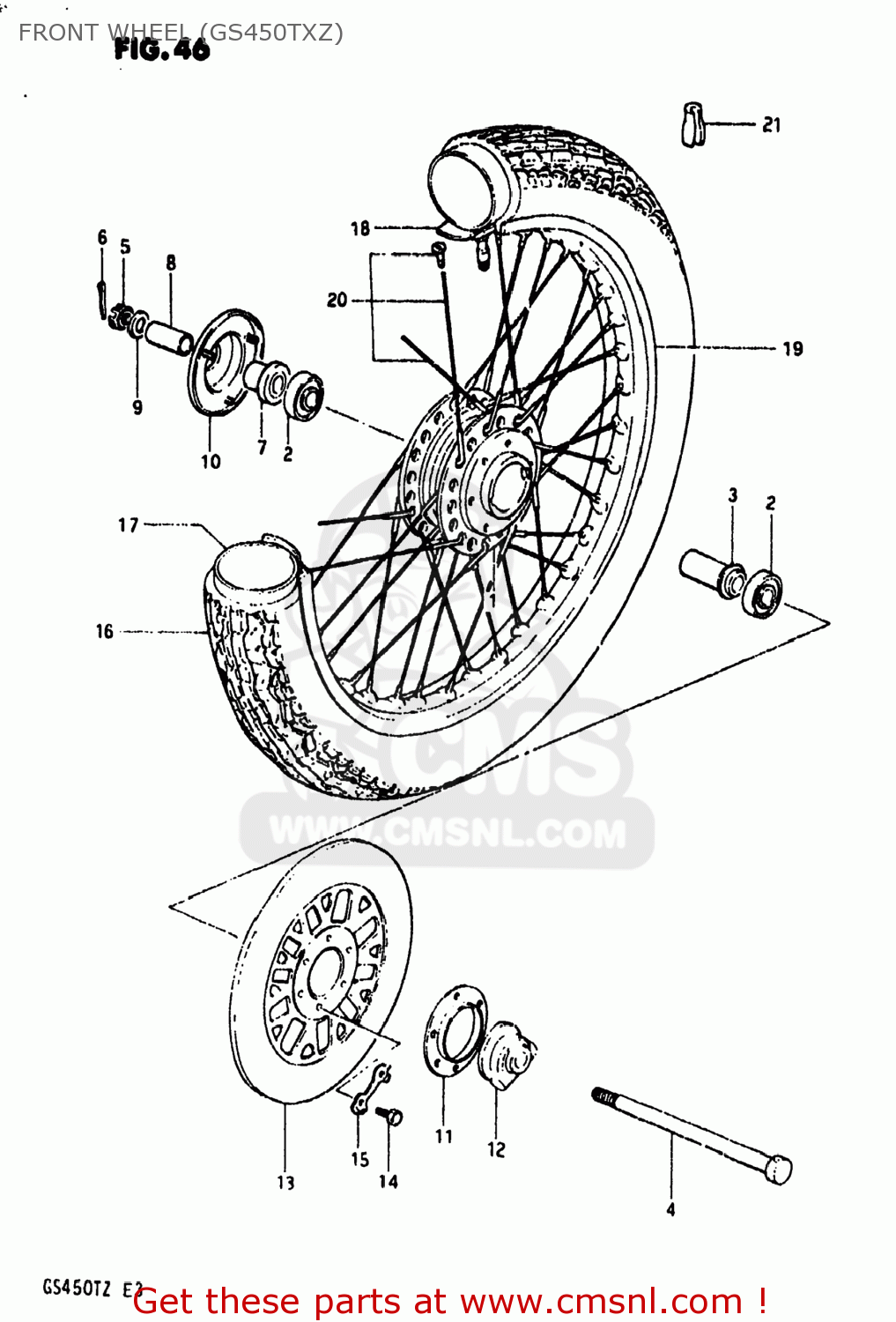

FRONT WHEEL (GS450TXZ)
GS450TX 1981 (X) USA (E03)
Front wheel (gs450txz) diagram GS450TX 1981 (X) USA (E03)
FRONT WHEEL (GS450TXZ) GS450TX 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411147001
ref: 1
54111-47002
DRUM,FRONT HUB
€ 194.50
2
0812363027
ref: 2
BEARING
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
€ 13.00
4
5471133002
ref: 4
54711-3300V
AXLE,FRONT
€ 41.00
5
0831431128
ref: 5
08314-3112A
NUT 12MM
€ 2.00
6
0411130308
ref: 6
04111-3030A
COTTER PIN
€ 1.50
7
5474018410
ref: 7
SPACER,FR HUB BEARING,R
€ 17.00
8
0918015034
ref: 8
SPACER(15X22X30)
€ 7.00
9
0832221128
ref: 9
08322-01127
WASHER
€ 2.00
10
5487145000
ref: 10
COVER,FR HUB,R
€ 6.00
11
5487145010
ref: 11
DUST SEAL,SPEEDOMETER GEAR BOX
€ 21.00
12
5460034001
ref: 12
54600-08C00
BOX ASSEMBLY,SPEEDOMETER GEAR
€ 96.50
13
5921145200
ref: 13
DISC,FR BRAKE
€ 144.00
14
0910008140
ref: 14
BOLT(8X25)
€ 2.00
15
0916908016
ref: 15
WASHER
€ 3.50
16
5510044310
ref: 16
TIRE
€ 0.00
17
5520029010
ref: 17
TUBE 2.75-19 070-483MM
€ 0.00
18
5526115010
ref: 18
PROTECTOR,WHL INR TUBE
€ 2.50
19
5531134020
ref: 19
RIM,FR WHEEL
€ 144.00
20
5532045000
ref: 20
SPOKE ASSY,FR
€ 71.00
21-1
5541111000
ref: 21-1
55411-26G00
BALANCER,WHEEL (B)
€ 4.50
21-2
5541211000
ref: 21-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
